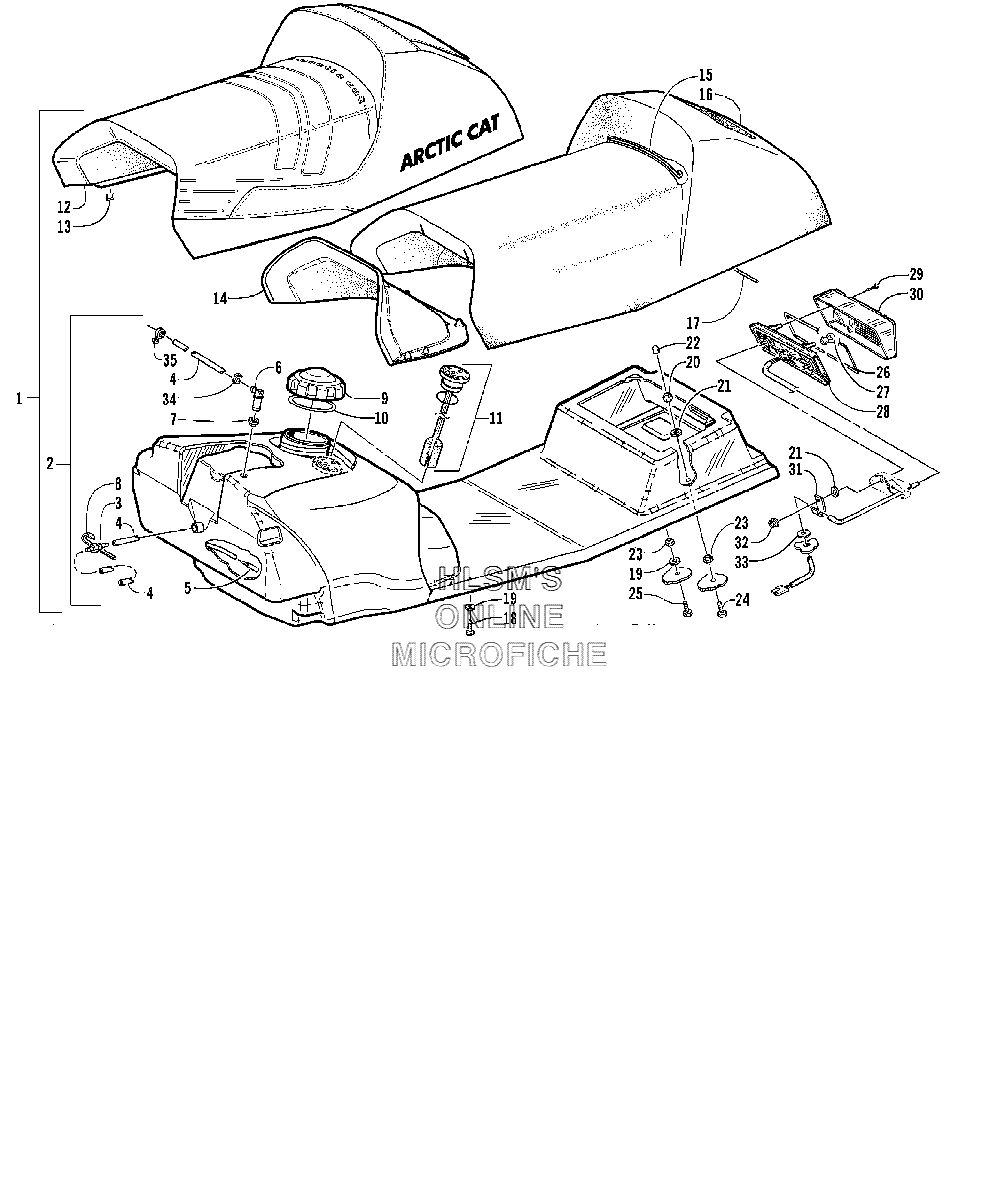

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    1718-336 COMPLETE SEAT ASSEMBLY
    COMPLETE SEAT ASSEMBLY
  • 1
    1718-336 SEAT ASSEMBLY, COMPLETE (INC. 2, 18 AND TWO NO. 19)
    SEAT ASSEMBLY, COMPLETE (INC. 2, 18 AND TWO NO. 19)
  • 2
    0770-578 TANK, GAS/SEAT, BASE (BLACK) (INC. 3, 11)
    TANK, GAS/SEAT, BASE (BLACK) (INC. 3, 11)
  • 3
    0670-042 OUTLET, TANK
    OUTLET, TANK
  • 4
    6101-001 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 4
    6101-009 HOSE, GASLINE (50 FT)
    HOSE, GASLINE (50 FT)
  • 5
    0510-358 STRAINER, GAS TANK
    STRAINER, GAS TANK
  • 6
    1670-494 VENT, GAS TANK
    VENT, GAS TANK
  • 7
    1670-325 GROMMET
    GROMMET
  • 8
    0670-289 TAPE, TEFLON
    TAPE, TEFLON
  • 9
    1670-199 CAP, GAS TANK (INC. 10)
    CAP, GAS TANK (INC. 10)
  • 10
    1670-228 SEAL, TANK CAP
    SEAL, TANK CAP
  • 11
    1670-241 GAUGE, FUEL W/GASKET (PRESS, FIT)
    GAUGE, FUEL W/GASKET (PRESS, FIT)
  • 12
    1706-963 COVER, SEAT
    COVER, SEAT
  • 13
    0624-528 STAPLE, SEAT COVER
    STAPLE, SEAT COVER
  • 14
    1606-126 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 15
    1606-150 WIRE, SEAT
    WIRE, SEAT
  • 16
    2706-196 FOAM, SEAT CUSHION
    FOAM, SEAT CUSHION
  • 17
    2606-943 WIRE, SEAT
    WIRE, SEAT
  • 18
    0623-309 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 19
    8050-217 WASHER
    WASHER
  • 20
    8040-366 NUT, LOCK
    NUT, LOCK
  • 21
    0623-184 WASHER
    WASHER
  • 22
    0623-404 CAP, PROTECTOR
    CAP, PROTECTOR
  • 23
    8041-366 NUT, LOCK
    NUT, LOCK
  • 24
    8002-042 SCREW, CAP
    SCREW, CAP
  • 25
    8002-043 SCREW, CAP
    SCREW, CAP
  • 26
    0609-092 GASKET, TAILLIGHT LENS
    GASKET, TAILLIGHT LENS
  • 27
    0109-460 BULB
    BULB
  • 28
    0609-091 TAILLIGHT W/SOCKET ASSEMBLY
    TAILLIGHT W/SOCKET ASSEMBLY
  • 29
    0609-093 SCREW, RETAINING
    SCREW, RETAINING
  • 30
    0609-090 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 31
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 32
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 33
    0617-136 SEAL, FOAM, SEAT, BASE
    SEAL, FOAM, SEAT, BASE
  • 34
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 35
    0623-101 CLIP, ROUTING, SNAP, INNER
    CLIP, ROUTING, SNAP, INNER
