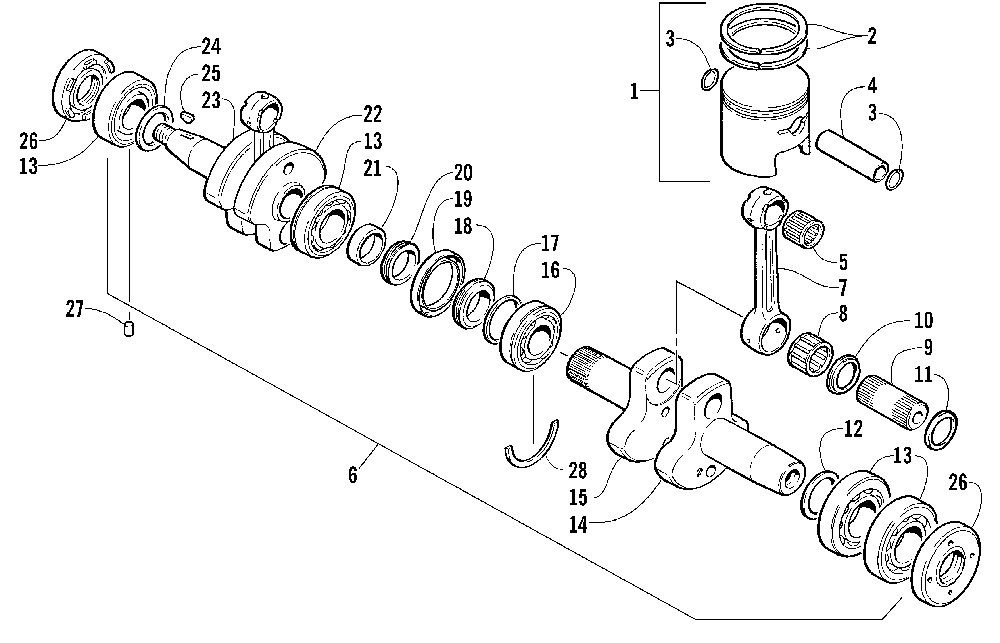

PISTON AND CRANKSHAFT для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3006-412 PISTON ASSEMBLY (INC. 2, 3)
    PISTON ASSEMBLY (INC. 2, 3)
  • 2
    3006-413 RING SET, PISTON
    RING SET, PISTON
  • 3
    3002-041 CIRCLIP, PISTON PIN
    CIRCLIP, PISTON PIN
  • 4
    3003-298 PIN, PISTON
    PIN, PISTON
  • 5
    3002-805 BEARING, PISTON PIN
    BEARING, PISTON PIN
  • 6
    3005-921 CRANKSHAFT ASSEMBLY (INC. 7, 24)
    CRANKSHAFT ASSEMBLY (INC. 7, 24)
  • 7
    3005-005 ROD, CONNECTING
    ROD, CONNECTING
  • 8
    3003-744 BEARING, CRANK PIN
    BEARING, CRANK PIN
  • 9
    3002-173 PIN, CRANK
    PIN, CRANK
  • 10
    3005-458 WASHER, CRANK PIN BEARING
    WASHER, CRANK PIN BEARING
  • 11
    3005-450 SHIM
    SHIM
  • 12
    3002-025 WASHER (LEFT)
    WASHER (LEFT)
  • 13
    3002-624 BEARING, CRANKSHAFT
    BEARING, CRANKSHAFT
  • 14
    3005-345 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 15
    3002-841 CRANKSHAFT (CENTER)
    CRANKSHAFT (CENTER)
  • 16
    3005-451 BEARING
    BEARING
  • 17
    3003-112 RING, SEAL
    RING, SEAL
  • 18
    3003-171 RACE, CRANKSHAFT SEAL
    RACE, CRANKSHAFT SEAL
  • 19
    3003-248 RETAINER
    RETAINER
  • 20
    3005-373 GEAR, OIL PUMP DRIVE
    GEAR, OIL PUMP DRIVE
  • 21
    3002-827 SPACER
    SPACER
  • 22
    3005-915 WHEEL, CRANKSHAFT
    WHEEL, CRANKSHAFT
  • 23
    3005-344 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 24
    3008-501 WASHER
    WASHER
  • 25
    3004-540 KEY
    KEY
  • 26
    3002-717 SEAL, OIL
    SEAL, OIL
  • 27
    3003-658 PIN, ALIGNMENT
    PIN, ALIGNMENT
  • 28
    3003-736 C, RING, CRANKSHAFT
    C, RING, CRANKSHAFT
