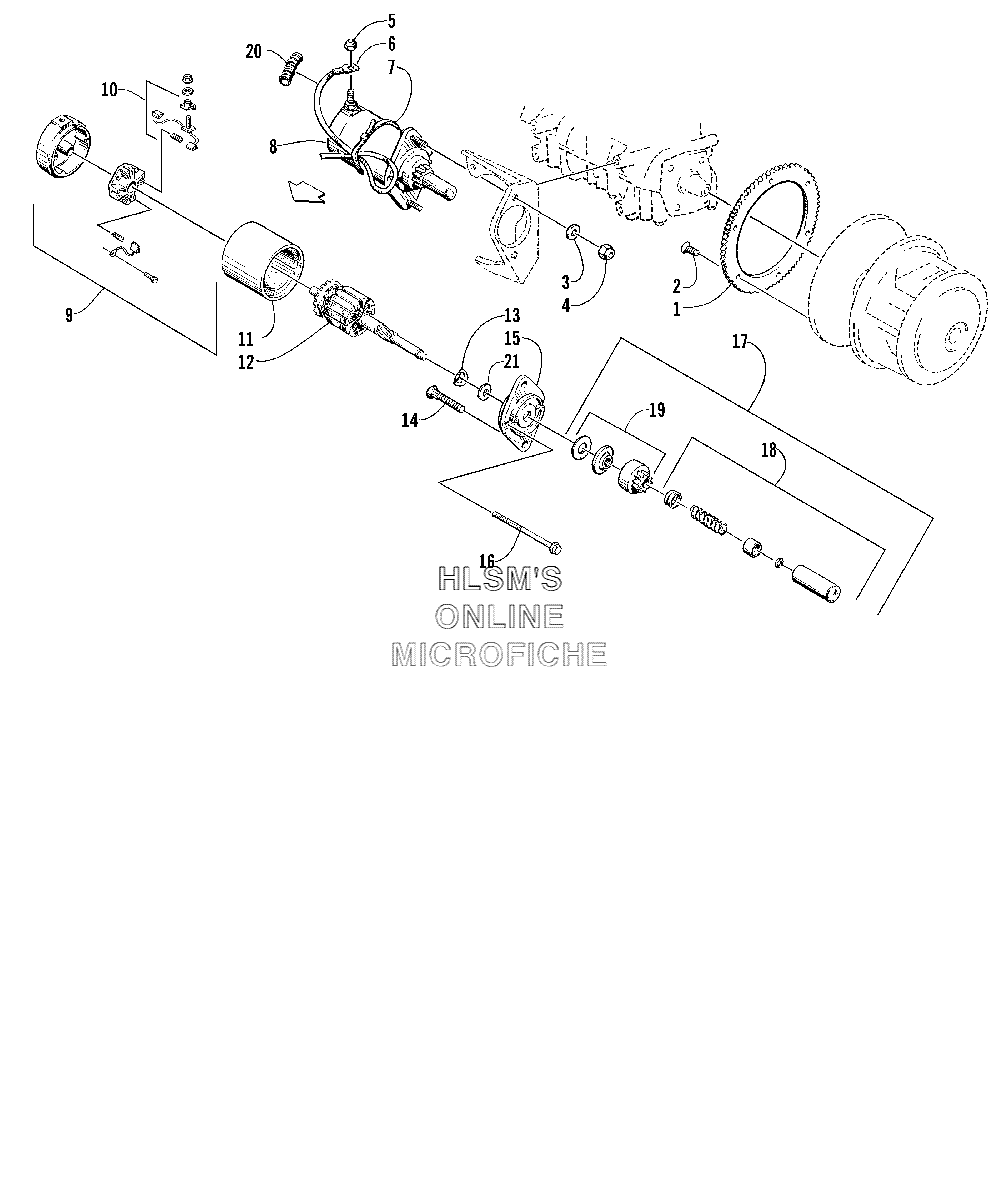

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0645-168 GEAR, RING
    GEAR, RING
  • 2
    0623-441 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    8050-242 WASHER
    WASHER
  • 4
    8040-426 NUT, LOCK
    NUT, LOCK
  • 5
    0623-122 NUT
    NUT
  • 6
    0645-244 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 7
    0623-144 CABLE TIE, 17.5 IN.
    CABLE TIE, 17.5 IN.
  • 8
    0745-052 MOTOR, ELECTRIC STARTER (INC. 9, 19 AND 21)
    MOTOR, ELECTRIC STARTER (INC. 9, 19 AND 21)
  • 9
    0645-277 CAP, COMMUTATOR (INC. 10)
    CAP, COMMUTATOR (INC. 10)
  • 10
    0645-275 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 12
    0645-189 ARMATURE
    ARMATURE
  • 13
    0645-126 WASHER, WAVE
    WASHER, WAVE
  • 14
    0623-093 BOLT, RIBBED
    BOLT, RIBBED
  • 15
    0645-188 CAP, DRIVE
    CAP, DRIVE
  • 16
    0645-191 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
  • 17
    0745-145 PINION DRIVE ASSEMBLY (INC. 18, 19)
    PINION DRIVE ASSEMBLY (INC. 18, 19)
  • 18
    0645-186 PINION STOPPER KIT
    PINION STOPPER KIT
  • 19
    0745-146 PINION DRIVE KIT
    PINION DRIVE KIT
  • 20
    0716-391 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
  • 21
    0645-127 WASHER, THRUST
    WASHER, THRUST
