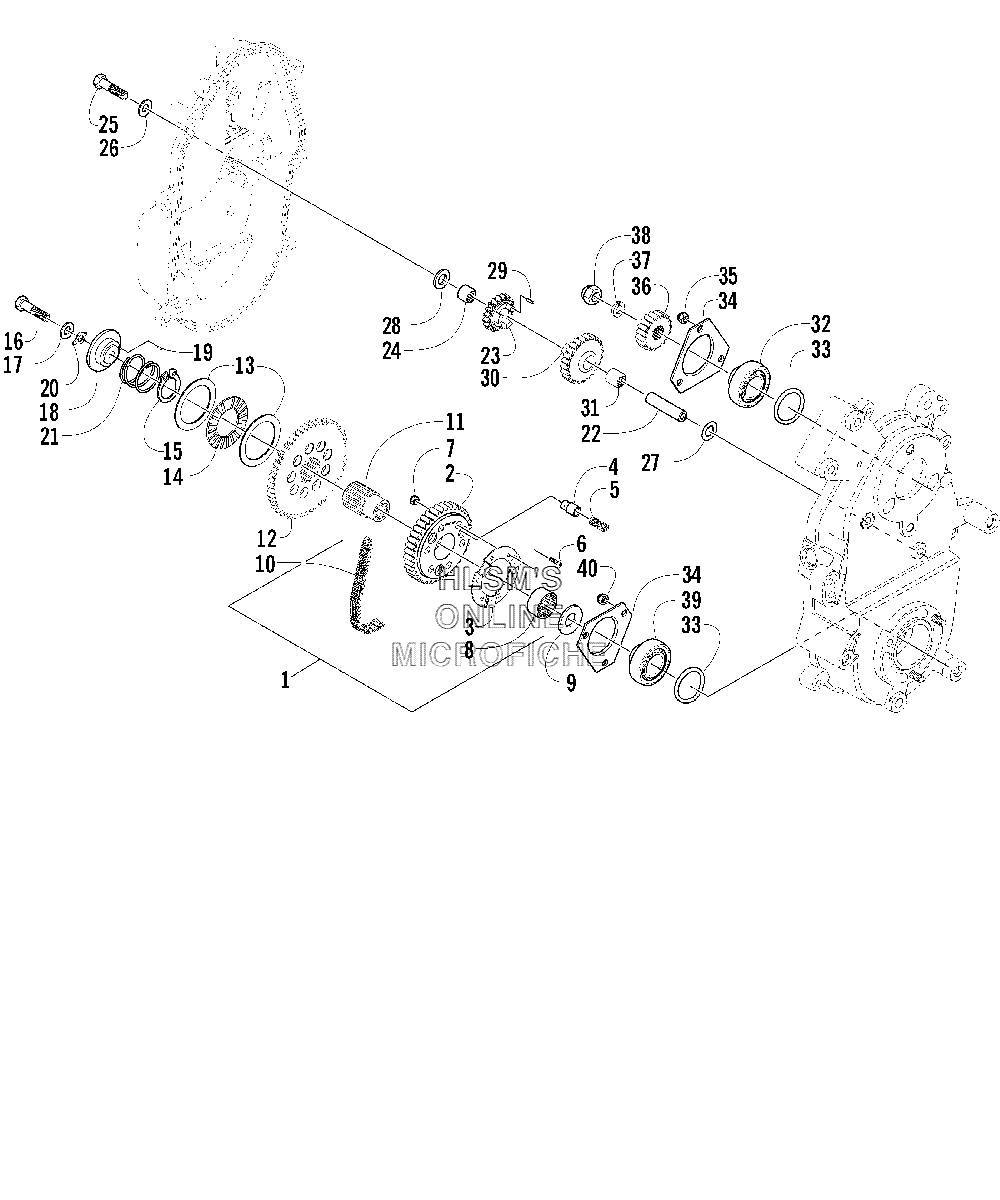

DRIVE/REVERSE DROPCASE ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска`
-
№АртикулНазвание
-
10702-170 SPROCKET ASSEMBLY (39 TEETH) (INC. 2, 8)SPROCKET ASSEMBLY (39 TEETH) (INC. 2, 8)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-041 CHAIN, 70PCHAIN, 70P
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
168002-231 SCREW, CAPSCREW, CAP
-
178050-272 WASHERWASHER
-
180702-372 RETAINER, SHAFT (INC. 19)RETAINER, SHAFT (INC. 19)
-
198070-153 PIN, SPRINGPIN, SPRING
-
201602-046 WASHER, TAB LOCKWASHER, TAB LOCK
-
210602-028 SPRING, RETURNSPRING, RETURN
-
220602-094 SHAFT, REVERSESHAFT, REVERSE
-
230702-366 IDLER, REVERSE, ASSEMBLY (19 TEETH) (INC. 24)IDLER, REVERSE, ASSEMBLY (19 TEETH) (INC. 24)
-
241602-045 BEARINGBEARING
-
258002-130 SCREW, CAPSCREW, CAP
-
268050-242 WASHERWASHER
-
270602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
281602-044 WASHER, THRUSTWASHER, THRUST
-
290602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
300702-260 IDLER, REVERSE, ASSEMBLY (24 TEETH) (INC. 31)IDLER, REVERSE, ASSEMBLY (24 TEETH) (INC. 31)
-
310602-018 BEARINGBEARING
-
321602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
331670-237 SEAL, O-RINGSEAL, O-RING
-
340602-198 PLATE, FLANGEPLATE, FLANGE
-
358041-426 NUT, LOCKNUT, LOCK
-
360602-444 SPROCKET (19 TEETH)SPROCKET (19 TEETH)
-
370623-231 WASHER, SPRINGWASHER, SPRING
-
380123-310 NUT, LOCKNUT, LOCK
-
391602-051 BEARING, 1 IN.BEARING, 1 IN.
-
408040-426 NUT, LOCKNUT, LOCK
