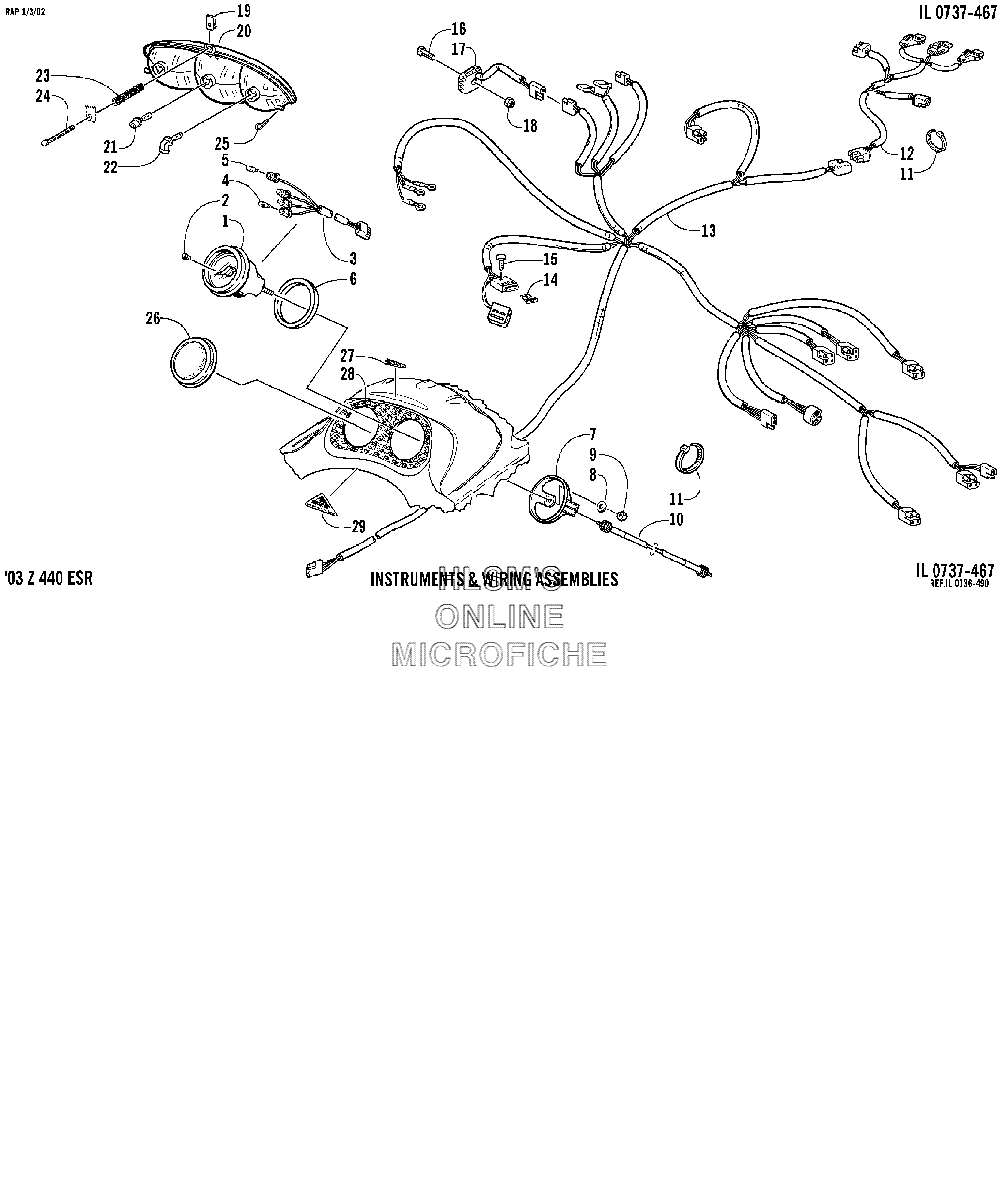

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0620-238 SPEEDOMETER (INC. 2, 5)
    SPEEDOMETER (INC. 2, 5)
  • 2
    0620-073 KNOB, TRIPMETER
    KNOB, TRIPMETER
  • 3
    0620-151 HARNESS, BULB, SPEEDOMETER (INC. 4, 5)
    HARNESS, BULB, SPEEDOMETER (INC. 4, 5)
  • 4
    0620-149 BULB, INNERDICATOR
    BULB, INNERDICATOR
  • 5
    0230-020 BULB, INSTRUMENT
    BULB, INSTRUMENT
  • 6
    0620-135 RING, RUBBER CUSHION
    RING, RUBBER CUSHION
  • 7
    0620-134 RING, RETAINING BRACKET
    RING, RETAINING BRACKET
  • 8
    8050-212 WASHER
    WASHER
  • 9
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 10
    0620-269 CABLE, SPEEDOMETER
    CABLE, SPEEDOMETER
  • 11
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 12
    0686-515 HARNESS, HOOD
    HARNESS, HOOD
  • 13
    0686-687 HARNESS, MAIN (INC. 14)
    HARNESS, MAIN (INC. 14)
  • 14
    0630-100 FUSE, 7.5 AMP
    FUSE, 7.5 AMP
  • 15
    0623-589 CLIP, RETAINING
    CLIP, RETAINING
  • 16
    8002-045 SCREW, CAP
    SCREW, CAP
  • 17
    0630-105 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 18
    8040-366 NUT, LOCK
    NUT, LOCK
  • 19
    0623-757 NUT, SPEED
    NUT, SPEED
  • 20
    0609-250 LENS/REFLECTOR, HEADLIGHT
    LENS/REFLECTOR, HEADLIGHT
  • 21
    0609-252 BULB, HEADLIGHT, LOW BEAM
    BULB, HEADLIGHT, LOW BEAM
  • 22
    0609-251 BULB, HEADLIGHT, HIGH BEAM
    BULB, HEADLIGHT, HIGH BEAM
  • 23
    0623-466 SPRING, ADJUSTMENT
    SPRING, ADJUSTMENT
  • 24
    0623-467 SCREW, THUMB
    SCREW, THUMB
  • 25
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 26
    2606-069 PLUG, GAUGE HOLE
    PLUG, GAUGE HOLE
  • 27
    3611-581 DECAL, "ESR", DOMED
    DECAL, "ESR", DOMED
  • 28
    4611-634 DECAL, INSTRUMENT, HOOD
    DECAL, INSTRUMENT, HOOD
  • 29
    3611-611 DECAL, "MADE IN U.S.A.", DOMED
    DECAL, "MADE IN U.S.A.", DOMED
