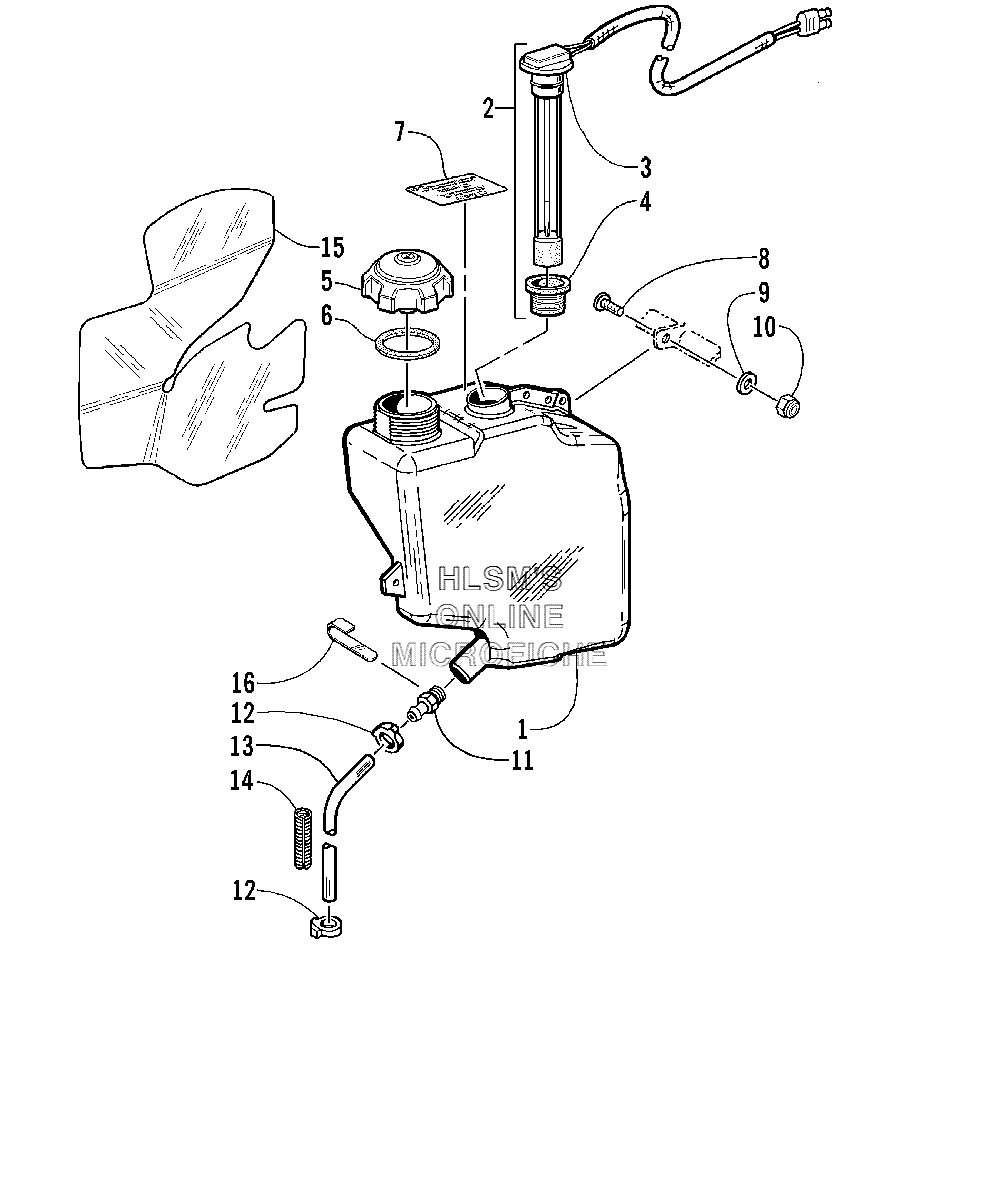

OIL TANK ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-026 TANK, OIL
    TANK, OIL
  • 2
    0609-503 SENSOR, LOW OIL, ASSEMBLY (INC. 3, 4)
    SENSOR, LOW OIL, ASSEMBLY (INC. 3, 4)
  • 3
    0609-518 SWITCH, OIL SENSOR W/HARNESS
    SWITCH, OIL SENSOR W/HARNESS
  • 4
    0609-237 SEAL, GROMMET, OIL SENSOR
    SEAL, GROMMET, OIL SENSOR
  • 5
    0670-871 CAP, TANK (INC. 6)
    CAP, TANK (INC. 6)
  • 6
    0109-733 SEAL, TANK CAP
    SEAL, TANK CAP
  • 7
    1611-564 DECAL, OIL TANK
    DECAL, OIL TANK
  • 8
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    8050-217 WASHER
    WASHER
  • 10
    8040-366 NUT, LOCK
    NUT, LOCK
  • 11
    0670-733 OUTLET, OIL TANK
    OUTLET, OIL TANK
  • 12
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    6101-001 HOSE, OIL LINE (100 FT)
    HOSE, OIL LINE (100 FT)
  • 13
    6101-009 HOSE, OIL LINE (50 FT)
    HOSE, OIL LINE (50 FT)
  • 14
    0716-558 CONDUIT, FLEXIBLE (10 FT)
    CONDUIT, FLEXIBLE (10 FT)
  • 15
    1670-234 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 16
    0670-289 TAPE, TEFLON
    TAPE, TEFLON
