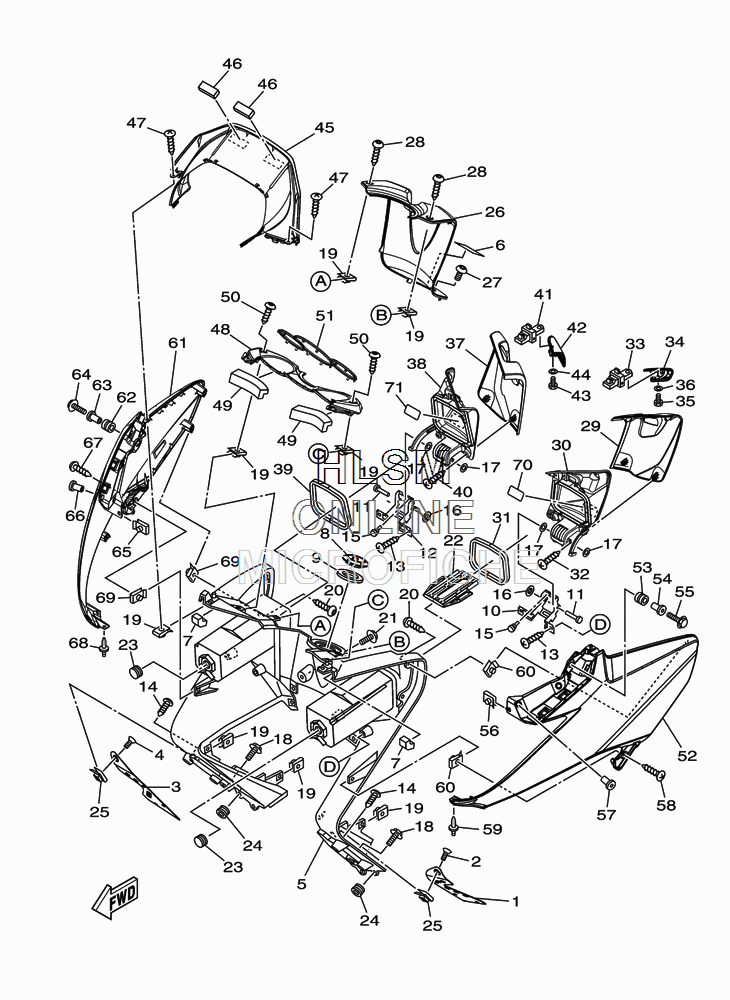

COWLING W/ LEG SHIELD для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
14B5-27411-00-00 FOOTREST 1FOOTREST 1
-
290151-06076-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
34B5-27421-00-00 FOOTREST 2FOOTREST 2
-
490151-06076-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
54B5-28311-01-00 LEG SHIELD 1LEG SHIELD 1
-
64C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
74B5-2836U-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
84B5-82552-00-00 CAP, SWITCHCAP, SWITCH
-
95VU-28307-00-00 SEALSEAL
-
104B5-21796-01-00 HINGEHINGE
-
1190241-06002-00 PINPIN
-
124B5-21797-00-00 HINGEHINGE
-
1390160-04008-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1590338-05009-00 PLUGPLUG
-
1690183-06008-00 NUT, SPRINGNUT, SPRING
-
1790202-06004-00 WASHER, PLATEWASHER, PLATE
-
1890119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990183-05042-00 NUT, SPRINGNUT, SPRING
-
2090167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
2190119-06212-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
224B5-2839N-00-00 HOLDERHOLDER
-
2390338-20113-00 PLUGPLUG
-
2490480-13567-00 GROMMETGROMMET
-
2590183-060A8-00 NUT, SPRINGNUT, SPRING
-
264B5-28312-00-00 LEG SHIELD 2LEG SHIELD 2
-
2790111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890169-05003-00 TAPPING SCREWTAPPING SCREW
-
294B5-28313-00-00 LIDLID
-
304B5-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
314B5-28371-00-00 DAMPERDAMPER
-
3290160-04008-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
334B5-21780-00-00 LOCK ASSYLOCK ASSY
-
344B5-2836X-00-00 KNOB, 1KNOB, 1
-
3597022-05012-00 BOLTBOLT
-
3690201-05043-00 WASHER, PLATEWASHER, PLATE
-
374B5-2839K-00-00 LID 1LID 1
-
384B5-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
394B5-28371-00-00 DAMPERDAMPER
-
4090160-04008-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
414B5-21780-00-00 LOCK ASSYLOCK ASSY
-
424B5-2836Y-00-00 KNOB, 2KNOB, 2
-
4397022-05012-00 BOLTBOLT
-
4490201-05043-00 WASHER, PLATEWASHER, PLATE
-
454B5-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
464B5-2814E-00-00 HOOKHOOK
-
4797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
484B5-28346-00-00 MOLE 2MOLE 2
-
494B5-2834E-00-00 DAMPER 3DAMPER 3
-
5090167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
514B5-2839R-00-00 PANEL, ACCESSORYPANEL, ACCESSORY
-
524B5-28351-01-WG BODY, COWLINGBODY, COWLING
-
5390480-14003-00 GROMMETGROMMET
-
5490387-0602X-00 COLLARCOLLAR
-
5595802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
5690183-060A6-00 NUT, SPRINGNUT, SPRING
-
5790179-05523-00 NUTNUT
-
5897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5990269-06008-00 RIVETRIVET
-
6090183-05042-00 NUT, SPRINGNUT, SPRING
-
614B5-28377-01-WG BODY, COWLING 2BODY, COWLING 2
-
6290480-14003-00 GROMMETGROMMET
-
6390387-0602X-00 COLLARCOLLAR
-
6495802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
6590183-060A6-00 NUT, SPRINGNUT, SPRING
-
6690179-05523-00 NUTNUT
-
6797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6890269-06008-00 RIVETRIVET
-
6990183-05042-00 NUT, SPRINGNUT, SPRING
-
705RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
715RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
