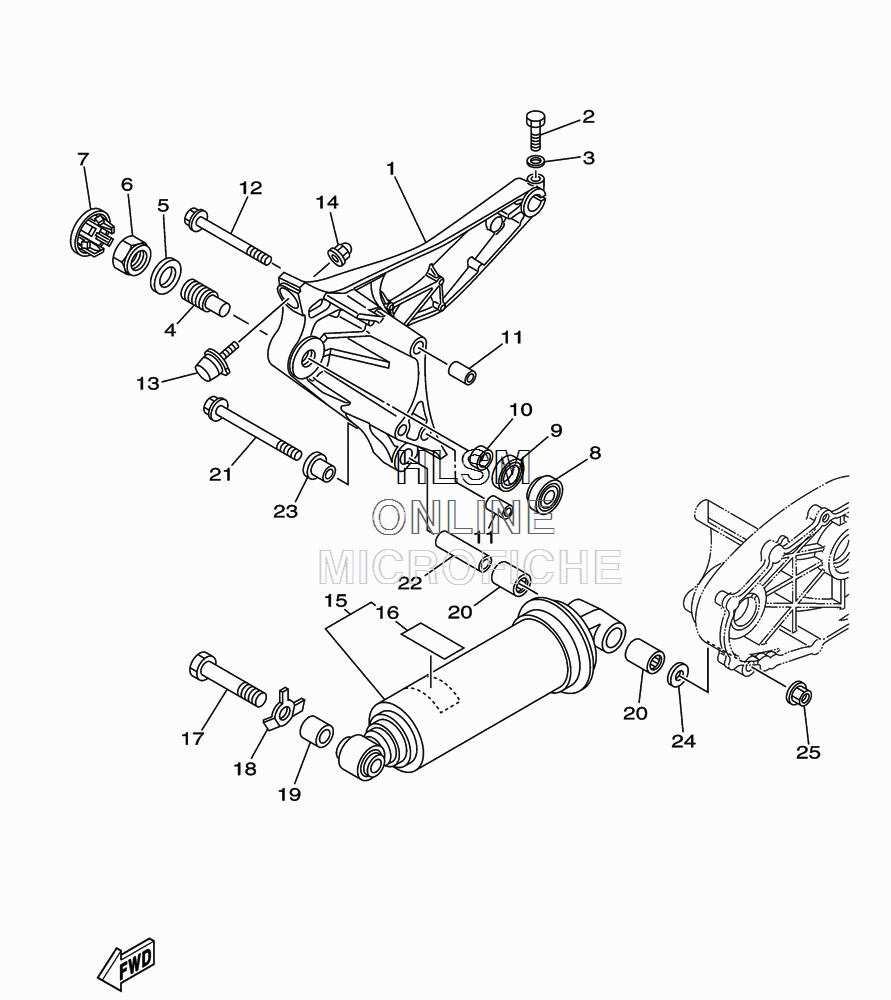

SUSPENSION - REAR ARM W/ SHOCK для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
14B5-22171-01-33 ARM, REAR 1ARM, REAR 1
-
297002-08035-00 BOLTBOLT
-
392902-08600-00 WASHER, PLATEWASHER, PLATE
-
415B-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
590201-22018-00 WASHER, PLATEWASHER, PLATE
-
61J7-22143-00-00 NUTNUT
-
74KM-2219X-00-00 COVERCOVER
-
893332-00010-00 BEARINGBEARING
-
993102-25017-00 OIL SEALOIL SEAL
-
1090387-17011-00 COLLARCOLLAR
-
1199530-14016-00 PIN, DOWELPIN, DOWEL
-
1295812-10100-00 BOLT, FLANGEBOLT, FLANGE
-
134B5-22426-00-00 BUMP, STOPBUMP, STOP
-
1490176-06016-00 NUT, CAPNUT, CAP
-
154B5-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
164AA-22259-80-00 LABEL, WARNINGLABEL, WARNING
-
1790101-16003-00 BOLTBOLT
-
184B5-22243-00-00 WASHER 1WASHER 1
-
1990387-16019-00 COLLARCOLLAR
-
2093317-41761-00 BEARINGBEARING
-
2190105-12053-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-12003-00 COLLARCOLLAR
-
2390387-12039-00 COLLARCOLLAR
-
2490201-12043-00 WASHER, PLATEWASHER, PLATE
-
2595602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
