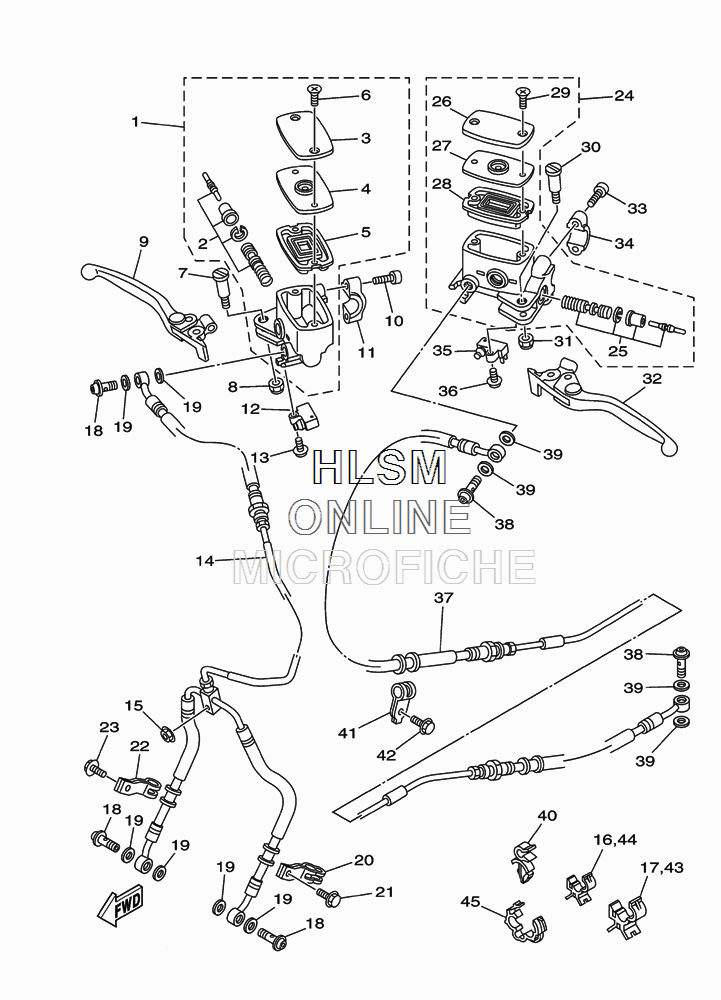

BRAKE - FRONT MASTER CYLINDER для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
14B5-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24B5-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34B5-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
44B5-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
54B5-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
65VS-2589H-00-00 SCREWSCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, UNUT, U
-
94B5-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1236Y-82917-00-00 SWITCHSWITCH
-
1397602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
144B5-25872-02-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1595702-06500-00 NUT, FLANGENUT, FLANGE
-
1690464-10190-00 CLAMPCLAMP
-
1790464-15192-00 CLAMPCLAMP
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
204B5-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2195802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
224B5-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
244B5-W2587-10-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
254B5-W0041-10-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
264B5-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
274B5-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
284B5-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
295VS-2589H-00-00 SCREWSCREW
-
305VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
3195617-06100-00 NUT, UNUT, U
-
324B5-83912-00-00 LEVER 1LEVER 1
-
335VS-26332-00-00 BOLTBOLT
-
345VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
3536Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
3697602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
374B5-2584A-01-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
3890401-10172-00 BOLT, UNIONBOLT, UNION
-
3990430-10005-00 GASKETGASKET
-
4090464-10125-00 CLAMPCLAMP
-
414B5-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4295802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4390464-15192-00 CLAMPCLAMP
-
4490464-10190-00 CLAMPCLAMP
-
4590464-14003-00 CLAMPCLAMP
