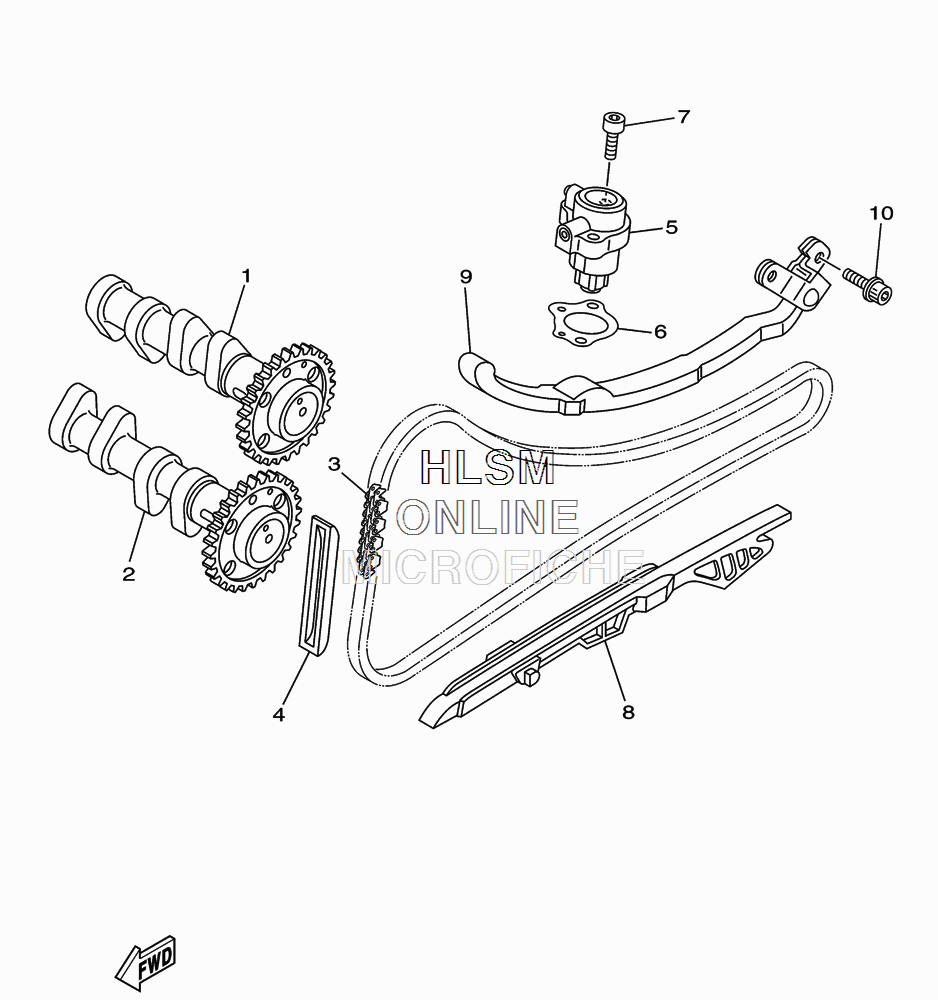

CAMSHAFT W/ CHAIN для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
15VU-12170-10-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
25VU-12180-10-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
394582-18132-00 CHAIN (DID SCR-409 SV 132LE)CHAIN (DID SCR-409 SV 132LE)
-
45BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
515B-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
615B-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
791312-06020-00 BOLTBOLT
-
85VU-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
95GJ-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1090110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
