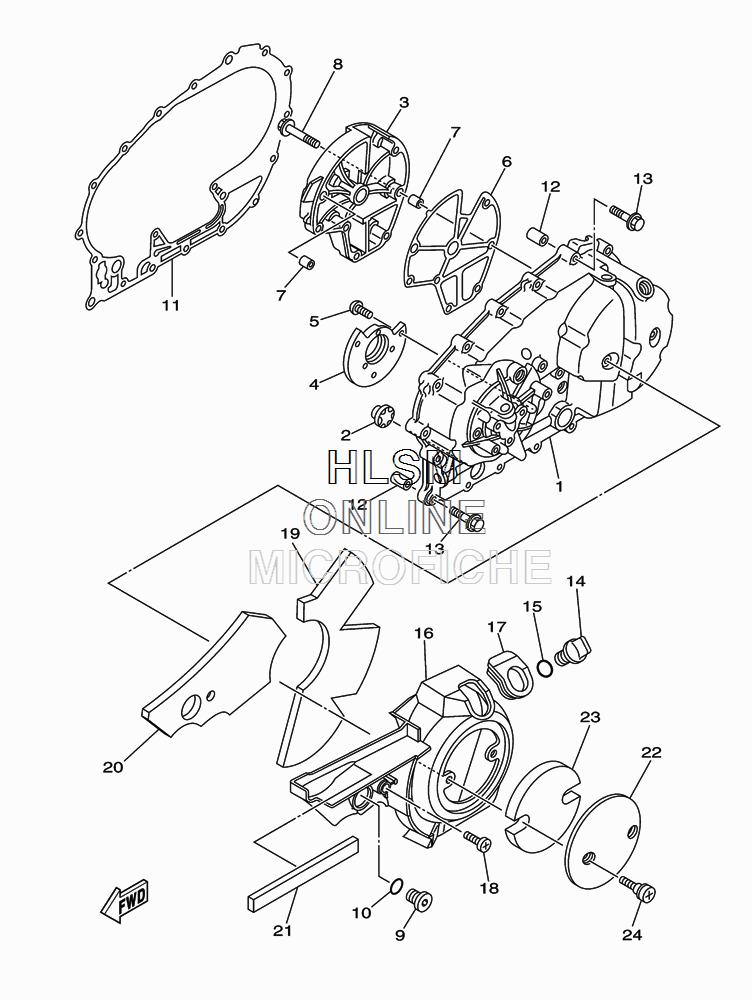

CRANKCASE COVER для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
15GJ-15411-02-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
22H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
35GJ-15414-00-00 COVER 1COVER 1
-
45GJ-15417-00-00 COVER, CAPCOVER, CAP
-
590149-06082-00 SCREWSCREW
-
65GJ-15453-01-00 GASKETGASKET
-
799530-10114-00 PIN, DOWELPIN, DOWEL
-
895022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
936Y-15189-00-00 PLUGPLUG
-
1093210-16325-00 O-RINGO-RING
-
115GJ-15451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1299530-10114-00 PIN, DOWELPIN, DOWEL
-
1395022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
145GJ-15363-10-00 PLUG, OILPLUG, OIL
-
1593210-19123-00 O-RINGO-RING
-
164B5-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
175GJ-15486-00-00 GROMMETGROMMET
-
183KJ-15481-00-00 BOLT 1BOLT 1
-
194B5-15316-00-00 DAMPER 1DAMPER 1
-
204B5-15335-00-00 DAMPER 3DAMPER 3
-
215GJ-15337-00-00 DAMPER 4DAMPER 4
-
225GJ-15499-10-00 PROTECTOR, COVERPROTECTOR, COVER
-
235GJ-15789-00-00 DAMPERDAMPER
-
243KJ-15481-00-00 BOLT 1BOLT 1
