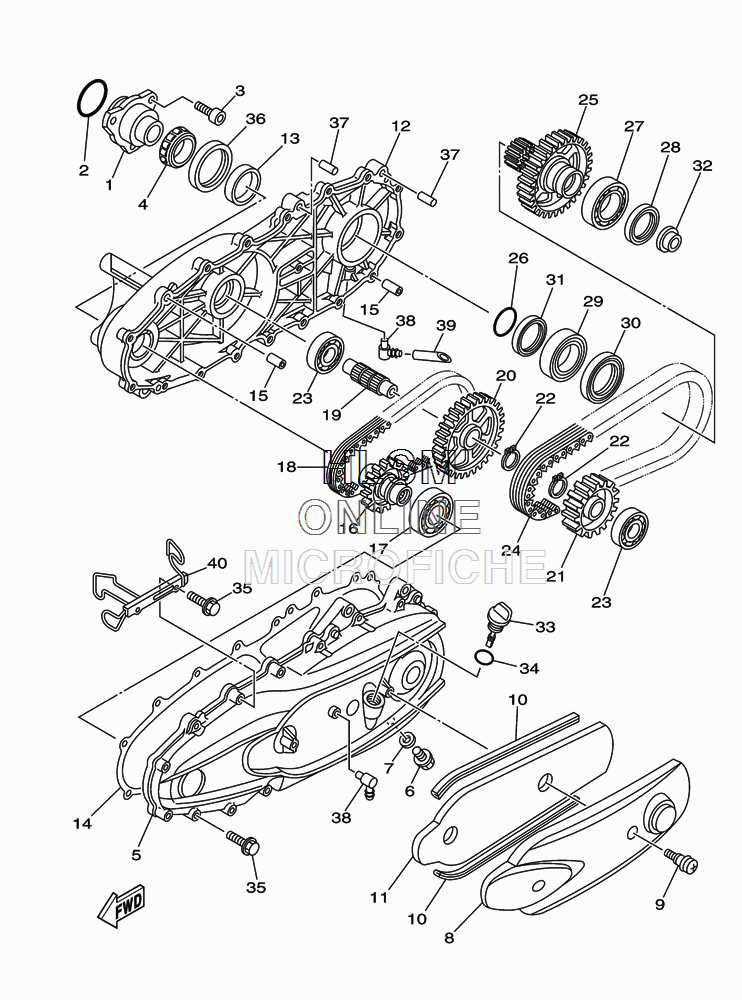

SUB TRANSMISSION для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
115B-17524-00-00 HOLDERHOLDER
-
293210-50553-00 O-RINGO-RING
-
391312-08020-00 BOLTBOLT
-
493332-00086-00 BEARINGBEARING
-
55GJ-17541-10-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
690340-12006-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
7812-11198-00-00 GASKETGASKET
-
85GJ-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
93KJ-15481-00-00 BOLT 1BOLT 1
-
105GJ-15335-00-00 DAMPER 3DAMPER 3
-
115VU-15338-00-00 DAMPER 5DAMPER 5
-
125GJ-17542-10-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
135GJ-17554-00-00 RETAINER, BEARINGRETAINER, BEARING
-
145GJ-17818-02-00 GASKETGASKET
-
1599530-10114-00 PIN, DOWELPIN, DOWEL
-
165GJ-17451-00-00 SPROCKET, DRIVE (25T)SPROCKET, DRIVE (25T)
-
1793306-20637-00 BEARINGBEARING
-
185GJ-16139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
195GJ-17523-00-00 SHAFTSHAFT
-
205GJ-17452-00-00 SPROCKET, DRIVE (41T)SPROCKET, DRIVE (41T)
-
215GJ-17459-00-00 SPROCKET, DRIVE (29T)SPROCKET, DRIVE (29T)
-
2299009-25400-00 CIRCLIPCIRCLIP
-
2393306-30427-00 BEARINGBEARING
-
245GJ-11456-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
254B5-17469-00-00 SPROCKET, DRIVE(40T)SPROCKET, DRIVE(40T)
-
2693210-34504-00 O-RINGO-RING
-
2793306-00807-00 BEARINGBEARING
-
2893102-40021-00 OIL SEALOIL SEAL
-
2993306-00808-00 BEARINGBEARING
-
3093102-48004-00 OIL SEALOIL SEAL
-
3193105-45017-00 OIL SEALOIL SEAL
-
3215B-46153-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
335GJ-15362-01-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
3493210-19123-00 O-RINGO-RING
-
3595022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
3693102-55004-00 OIL SEALOIL SEAL
-
3793608-30002-00 PIN, DOWELPIN, DOWEL
-
383ES-15371-00-00 BREATHERBREATHER
-
395GJ-1531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
404B5-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
