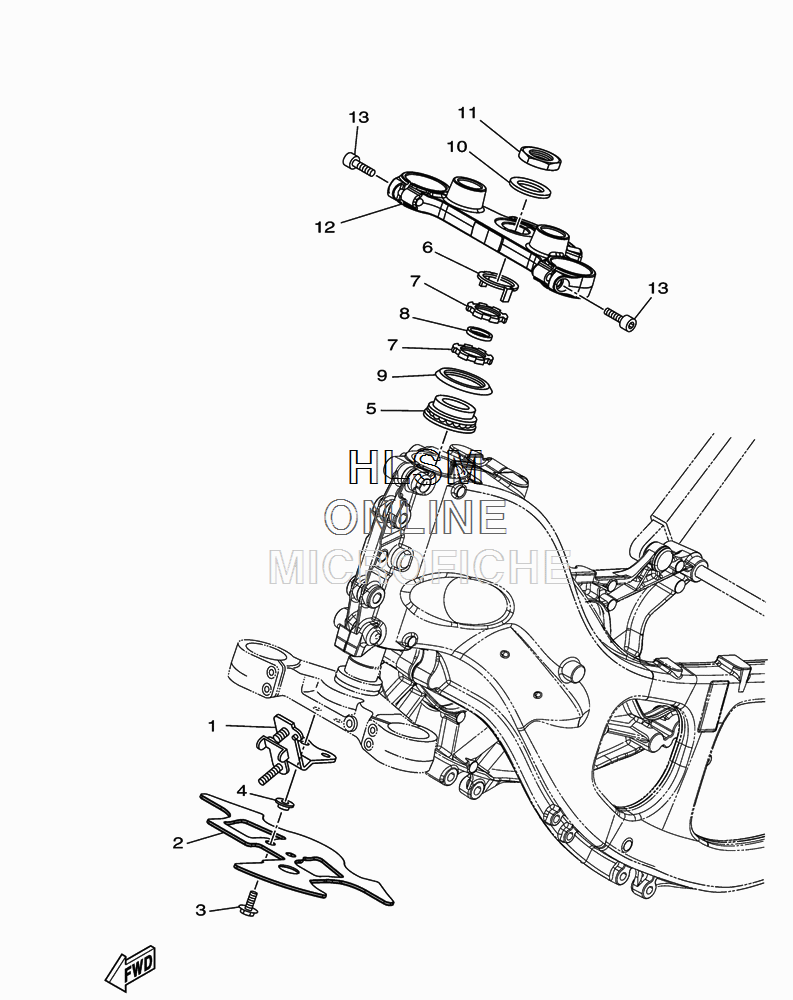

SUSPENSION - FRONT FORK - CROWN для Yamaha TMAX - 2010 года выпуска`
-
№АртикулНазвание
-
14B5-23377-00-00 BRACKET, HORNBRACKET, HORN
-
24B5-23818-00-00 COVER, STEERINGCOVER, STEERING
-
390119-06193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490387-062M9-00 COLLARCOLLAR
-
593399-99932-00 BEARINGBEARING
-
65VY-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790179-30691-00 NUTNUT
-
890202-30235-00 WASHER, PLATEWASHER, PLATE
-
94XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
1090201-28017-00 WASHER, PLATEWASHER, PLATE
-
1190170-28419-00 NUTNUT
-
124B5-Y2343-01-00 CROWN, HANDLECROWN, HANDLE
-
1391312-08030-00 BOLTBOLT
