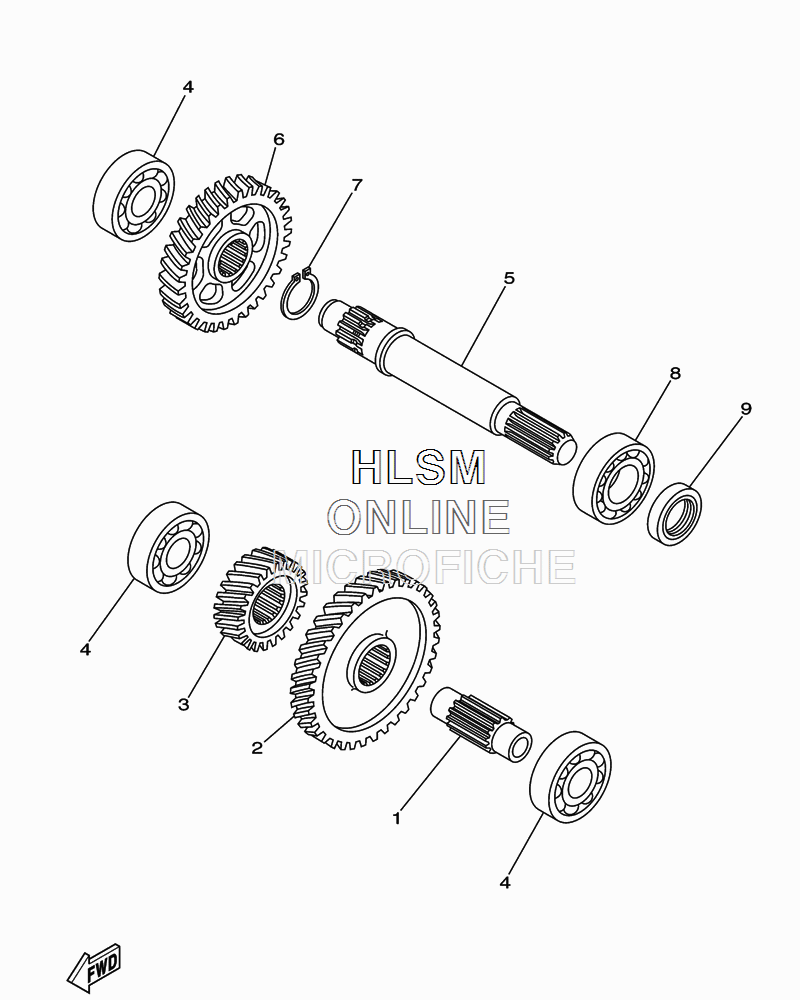

TRANSMISSION для Yamaha TMAX - 2010 года выпуска
-
№АртикулНазвание
-
15VU-17411-00-00 AXLE, MAINAXLE, MAIN
-
25VU-16151-00-00 GEAR, PRIMARY DRIVEN (52T)GEAR, PRIMARY DRIVEN (52T)
-
35VU-17111-00-00 GEAR,1ST PINION (22T)GEAR,1ST PINION (22T)
-
493306-30427-00 BEARINGBEARING
-
55GJ-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
65GJ-17211-00-00 GEAR, 1ST WHEEL (36T)GEAR, 1ST WHEEL (36T)
-
799009-25400-00 CIRCLIPCIRCLIP
-
893306-205A8-00 BEARINGBEARING
-
993102-25064-00 OIL SEALOIL SEAL
