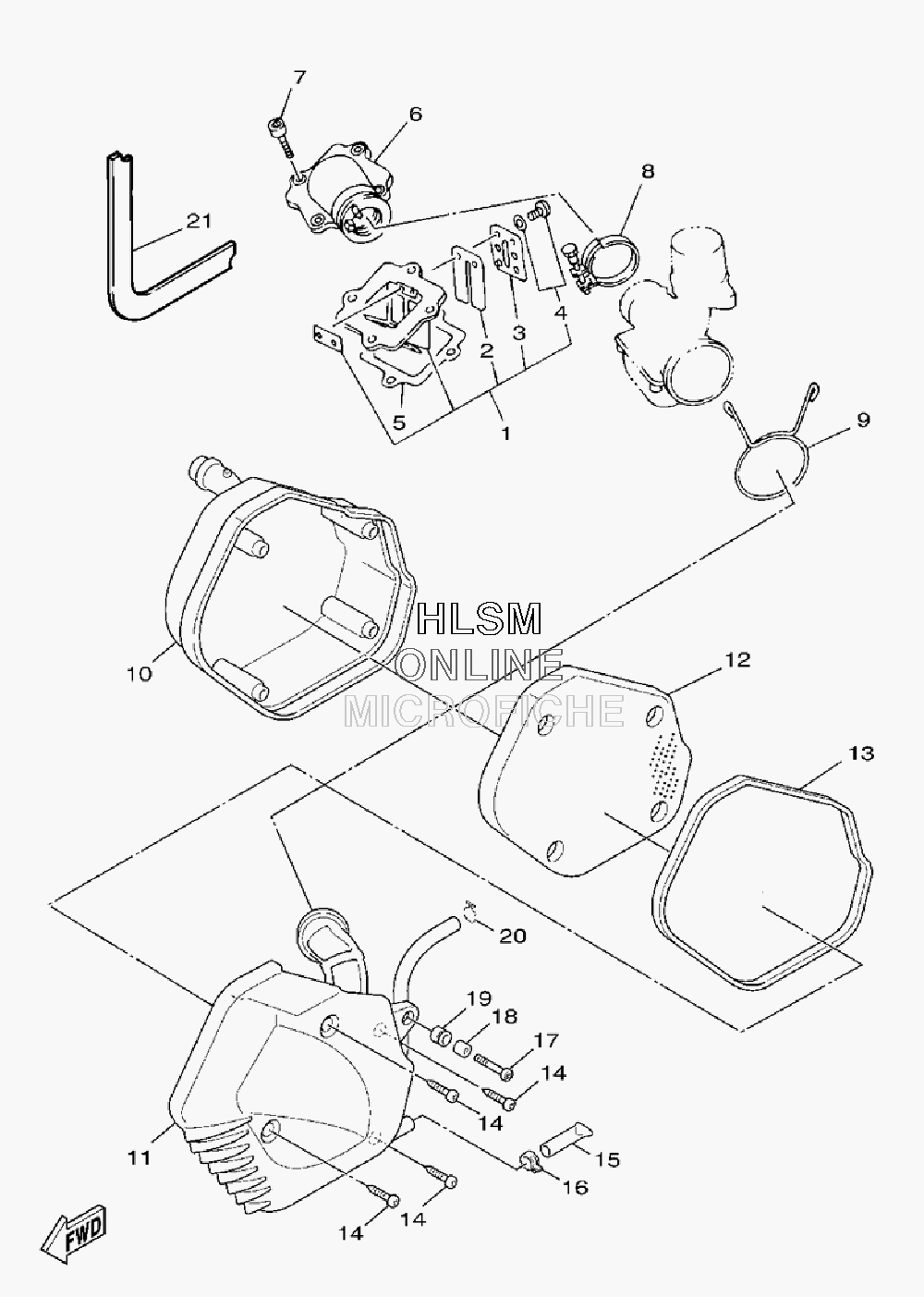

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
13XG-E3610-00-00 REED VALVE ASSYREED VALVE ASSY
-
23XG-E3613-00-00 REED, VALVEREED, VALVE
-
33XG-E3616-00-00 STOPPER, REED VALVESTOPPER, REED VALVE
-
497607-03208-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
54SC-E3621-10-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
64WX-E3555-10-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
791318-06020-00 BOLTBOLT
-
83XG-E3575-01-00 BANDBAND
-
990467-01800-00 CLIP, SCISSORCLIP, SCISSOR
-
104WX-WE441-00-00 AIR CLEANER CASE COMP.AIR CLEANER CASE COMP.
-
114WX-WE442-10-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
124VP-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
134VP-E4452-00-00 SEALSEAL
-
1497707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
154VP-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1690467-11823-00 CLIPCLIP
-
1797607-06220-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
1890387-068J5-00 COLLARCOLLAR
-
1990480-12497-00 GROMMETGROMMET
-
2090467-19848-00 CLIP, SCISSORCLIP, SCISSOR
-
215DA-E4425-00-00 DAMPER 1DAMPER 1
