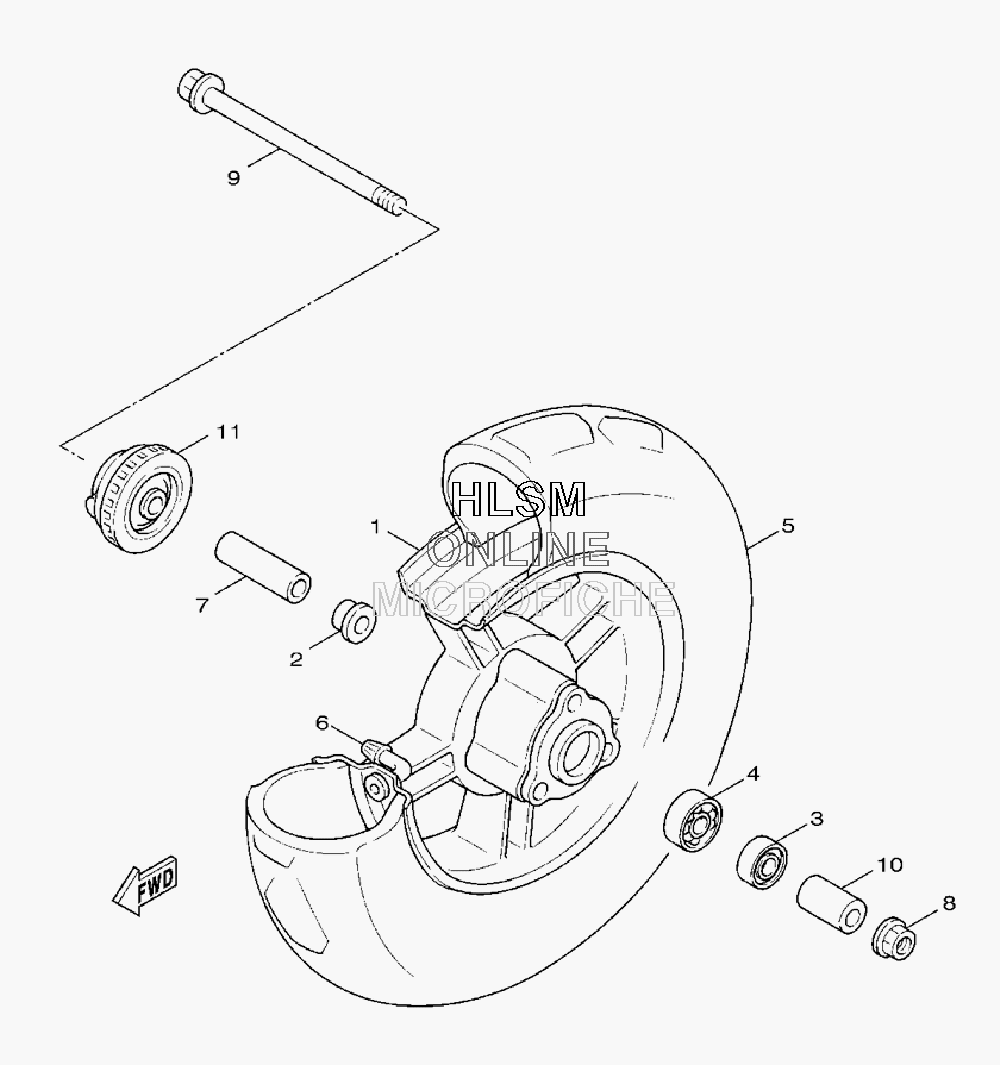

WHEEL - FRONT для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
14VP-F5168-00-33 CAST WHEEL, FRONT (YAMAHA BLK.)CAST WHEEL, FRONT (YAMAHA BLK.)
-
220A-F5115-00-00 FLANGE, SPACER 1FLANGE, SPACER 1
-
393102-17838-00 OIL SEALOIL SEAL
-
493306-300Y4-00 BEARINGBEARING
-
594112-108S3-00 TIRE (120/90-10 56J TL)TIRE (120/90-10 56J TL)
-
693900-00802-00 VALVE, RIM TR413VALVE, RIM TR413
-
74VP-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
890185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
94VP-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1090387-108S0-00 COLLARCOLLAR
-
115DA-F5190-10-00 GEAR UNIT ASSYGEAR UNIT ASSY
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- • WHEEL - FRONT
- WHEEL - REAR
