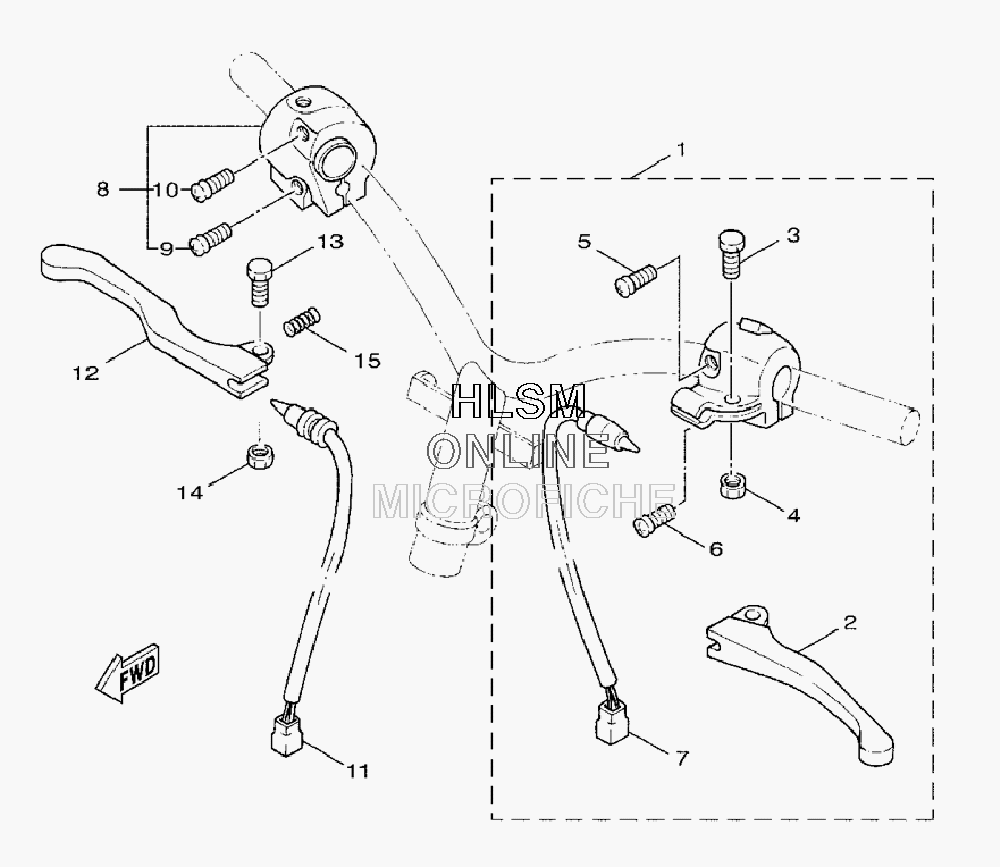

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
15PJ-H2910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24VP-H3912-10-00 LEVER 1LEVER 1
-
33XG-H3915-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
495607-05100-00 NUT, UNUT, U
-
598507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
698507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
75PJ-H3980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
85PJ-H3976-01-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
998507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1098507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115MJ-H3980-11-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
124VP-H3922-10-00 LEVER 2LEVER 2
-
1390109-06577-00 BOLTBOLT
-
1495607-06100-00 NUT, UNUT, U
-
1590501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
