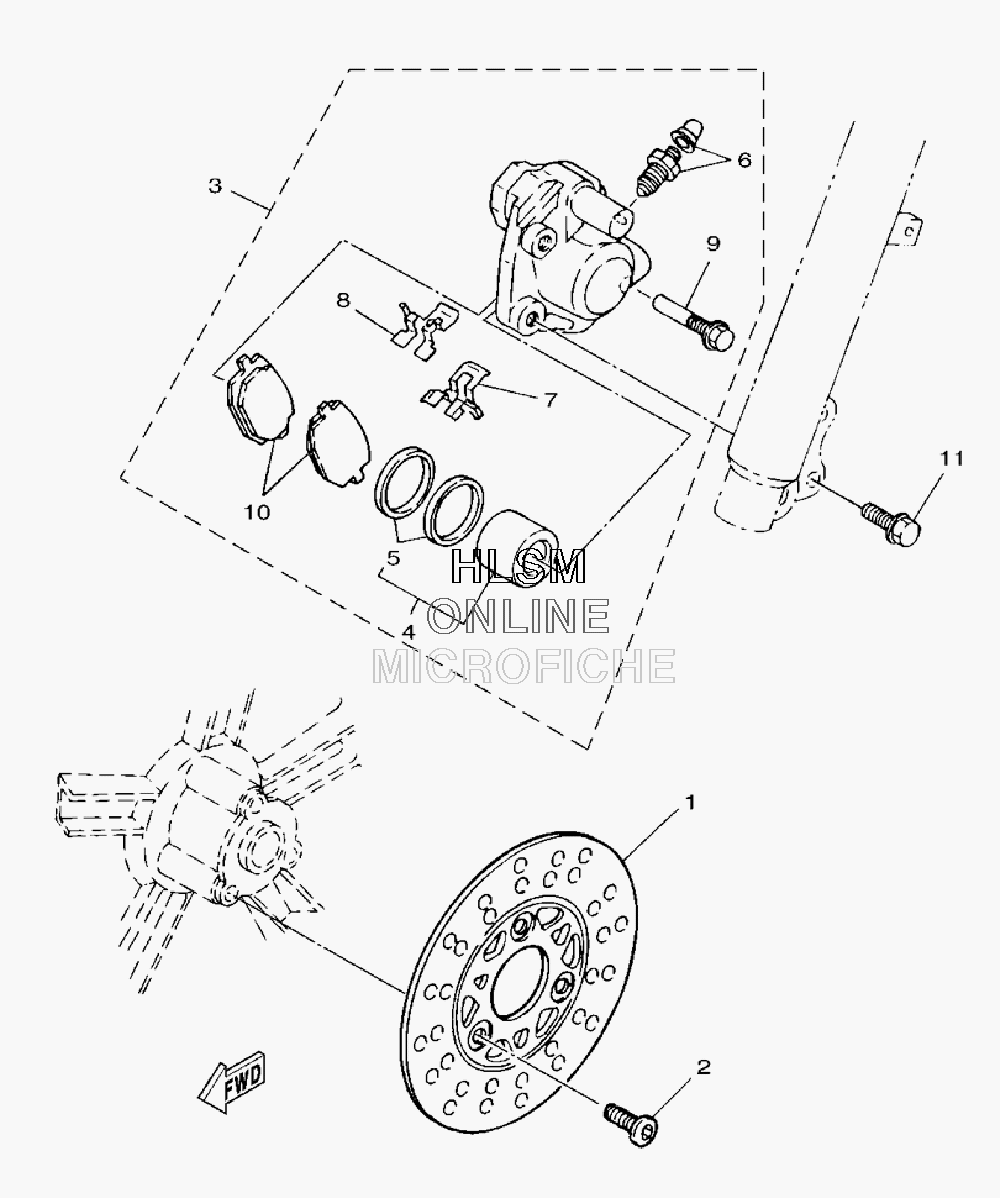

BRAKE - FRONT CALIPER для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
13UH-F582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290149-08814-00 SCREWSCREW
-
33XG-F580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43XG-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53XG-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
63XG-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
73XG-F5919-01-00 SUPPORT, PADSUPPORT, PAD
-
83XG-F5919-11-00 SUPPORT, PADSUPPORT, PAD
-
93XG-F5926-01-00 BOLTBOLT
-
103XG-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
1195827-08030-00 BOLT, FLANGEBOLT, FLANGE
