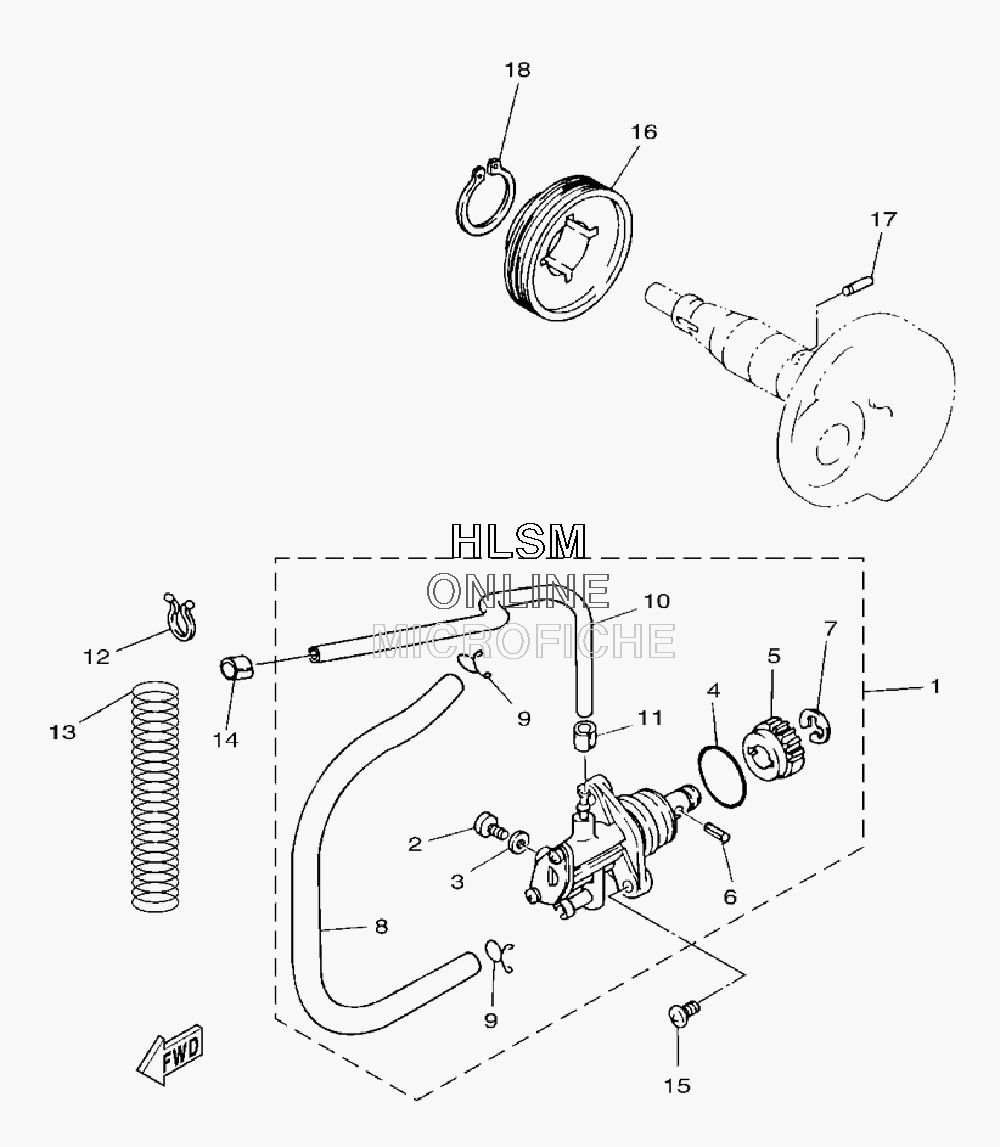

OIL PUMP для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
15DA-E3100-01-00 OIL PUMP ASSYOIL PUMP ASSY
-
21YU-13185-00-00 BOLT, BREATHERBOLT, BREATHER
-
31YU-13187-00-00 GASKET, BREATHER BOLTGASKET, BREATHER BOLT
-
41YU-13473-00-00 O-RINGO-RING
-
53AA-13124-00-00 GEAR WORM WHEEL (40T)GEAR WORM WHEEL (40T)
-
61YU-13516-00-00 PIN, DOWELPIN, DOWEL
-
71YY-13577-00-00 CLIPCLIP
-
84VP-E316F-01-00 HOSE, OIL 1HOSE, OIL 1
-
990467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
1090445-05431-00 HOSE (L240)HOSE (L240)
-
1190468-02033-00 CLIPCLIP
-
1290464-16801-00 CLAMPCLAMP
-
1390501-08845-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490468-02033-00 CLIPCLIP
-
1598507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
164VP-13178-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1793603-12827-00 PIN, DOWELPIN, DOWEL
-
1899009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
