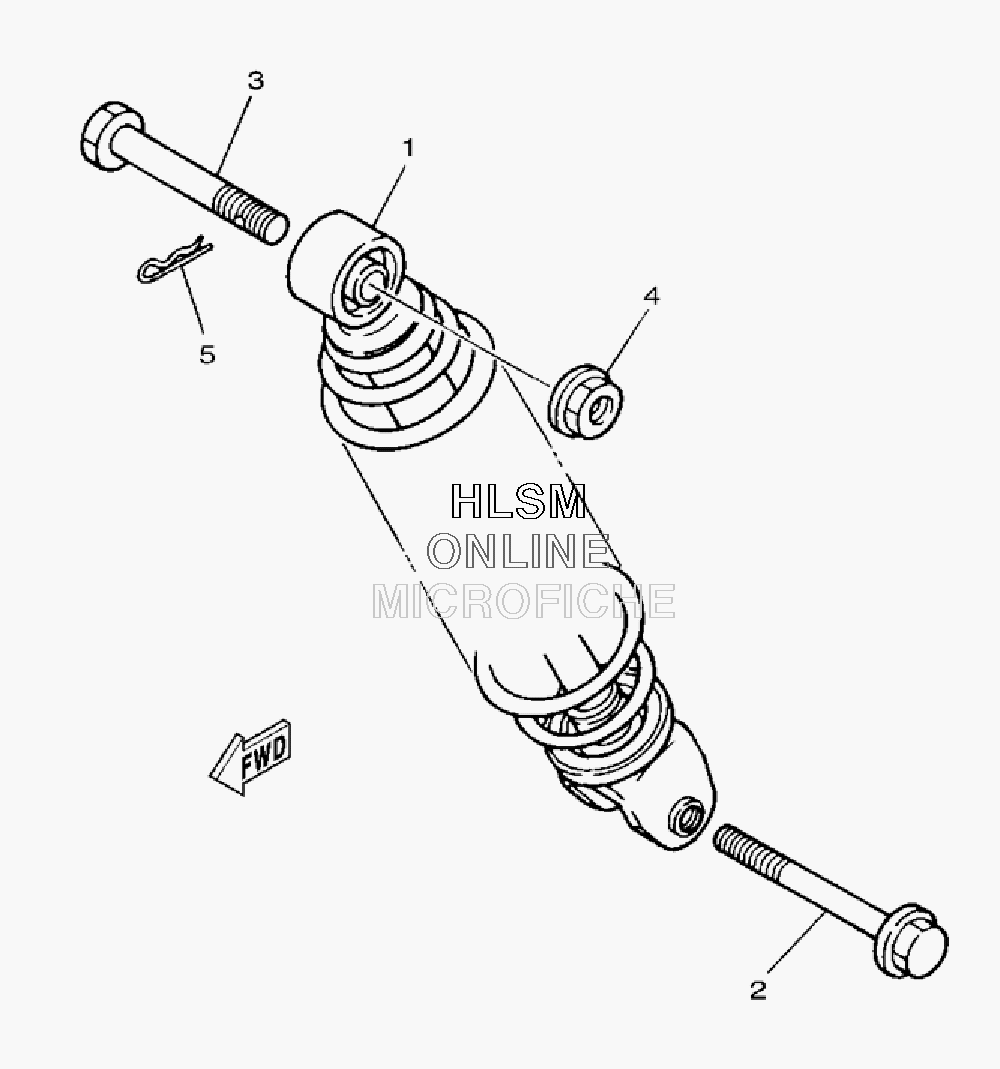

SUSPENSION - REAR SHOCK для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
15JU-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-08121-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390102-10031-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
590468-12006-00 CLIPCLIP
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- • SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
