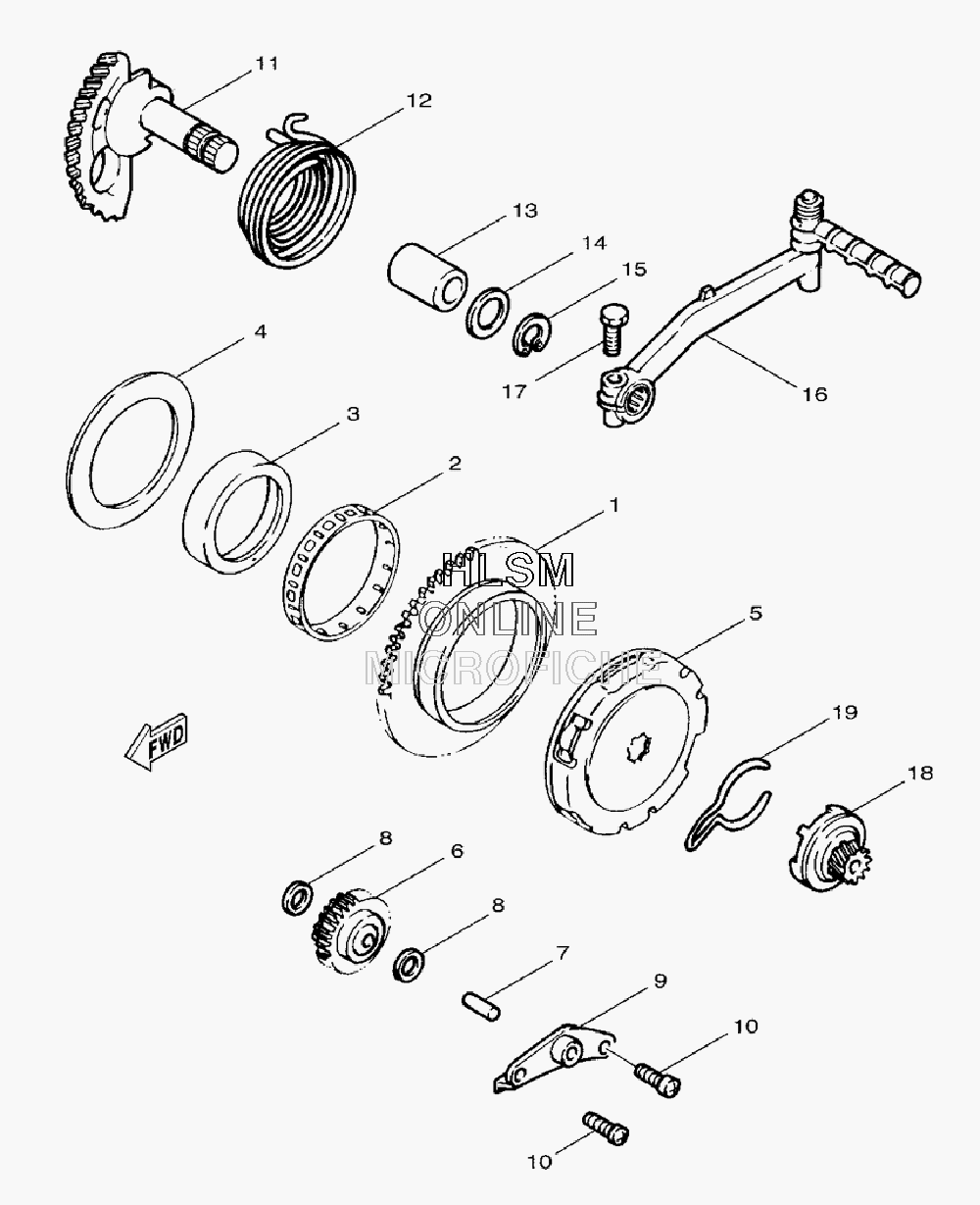

STARTER CLUTCH ASSY. для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
14DM-E5524-00-00 WHEEL, STARTERWHEEL, STARTER
-
293310-255B7-00 BEARINGBEARING
-
33WF-15538-00-00 BOSS, GEAR 2BOSS, GEAR 2
-
490201-55890-00 WASHER, PLATEWASHER, PLATE
-
53XY-E5570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
64WX-E5650-00-00 IDLE GEAR ASSYIDLE GEAR ASSY
-
73XG-E3342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
890201-08088-00 WASHER, PLATEWASHER, PLATE
-
93XG-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
1098507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115DA-E5601-00-00 KICK SHAFT ASSYKICK SHAFT ASSY
-
1290508-32768-00 SPRING, TORSIONSPRING, TORSION
-
1390380-15817-00 BUSH, SOLIDBUSH, SOLID
-
1490201-155G5-00 WASHER, PLATEWASHER, PLATE
-
1599009-15400-00 CIRCLIPCIRCLIP
-
163XG-E5620-01-00 KICK CRANK ASSYKICK CRANK ASSY
-
1797017-06025-00 BOLTBOLT
-
183XG-E5630-00-00 KICK PINION ASSYKICK PINION ASSY
-
194VP-E5673-00-00 CLIPCLIP
