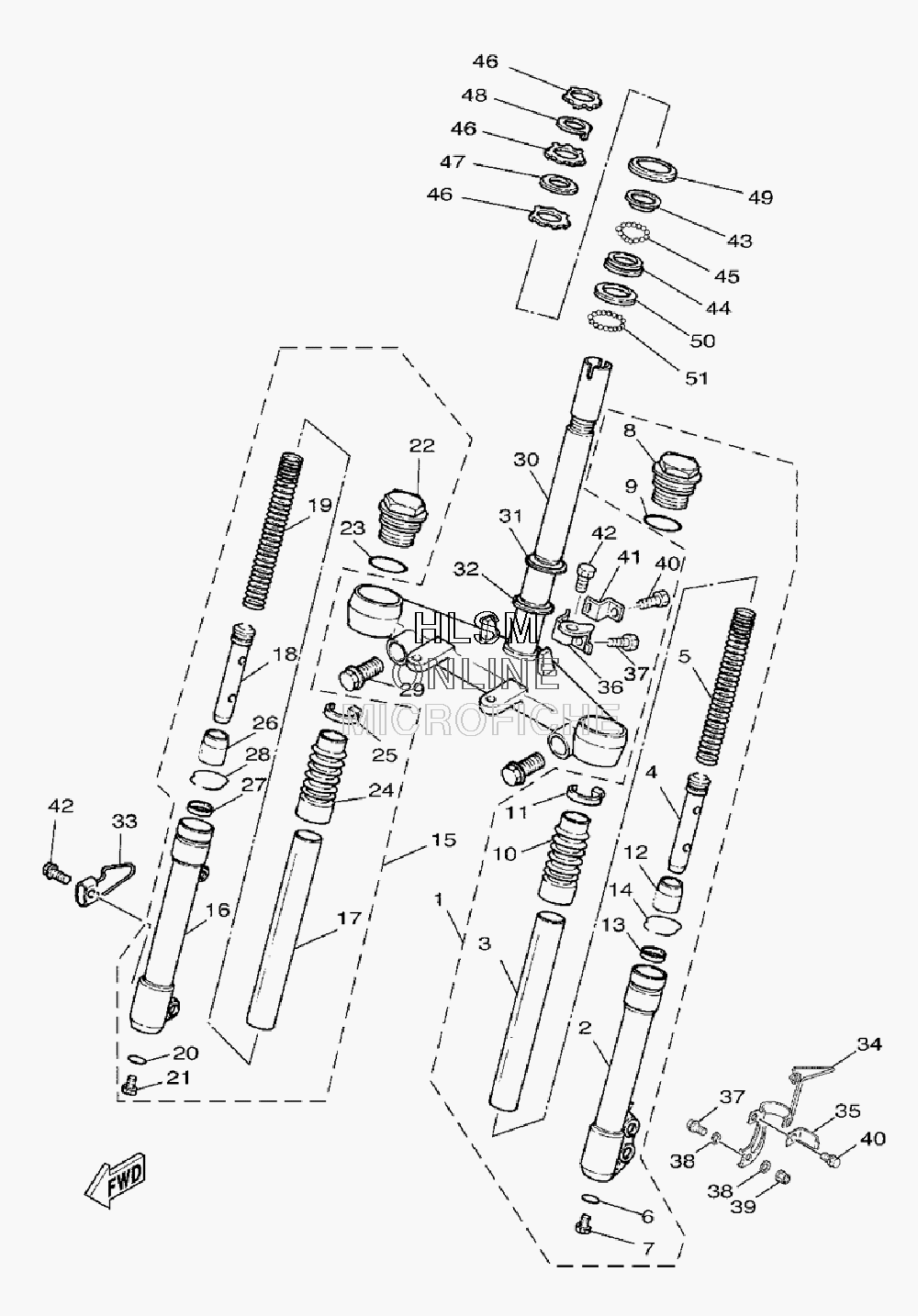

SUSPENSION - FRONT FORK для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
14VP-F3102-00-33 FRONT FORK ASSY (L.H) (YAMAHA BLK.)FRONT FORK ASSY (L.H) (YAMAHA BLK.)
-
24VP-F3126-00-33 TUBE, OUTER (LEFT) (YAMAHA BLK.)TUBE, OUTER (LEFT) (YAMAHA BLK.)
-
34VP-F3110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
44VP-F3170-10-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
54VP-F3141-10-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
63GF-F3158-00-00 GASKETGASKET
-
73GF-F3181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
84VP-F3111-00-00 BOLT, CAPBOLT, CAP
-
94TE-F3147-00-00 O-RINGO-RING
-
104VP-F3191-00-00 BOOTBOOT
-
114VP-F3192-00-00 BANDBAND
-
124VP-F319U-00-00 CAPCAP
-
134VP-F3145-00-00 OIL SEALOIL SEAL
-
144VP-F3156-00-00 RING, SNAPRING, SNAP
-
154VP-F3103-00-33 FRONT FORK ASSY (R.H) (YAMAHA BLK.)FRONT FORK ASSY (R.H) (YAMAHA BLK.)
-
164VP-F3136-00-33 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
174VP-F3110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
184VP-F3170-10-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
194VP-F3141-10-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
203GF-F3158-00-00 GASKETGASKET
-
213GF-F3181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
224VP-F3111-00-00 BOLT, CAPBOLT, CAP
-
234TE-F3147-00-00 O-RINGO-RING
-
244VP-F3191-00-00 BOOTBOOT
-
254VP-F3192-00-00 BANDBAND
-
264VP-F319U-00-00 CAPCAP
-
274VP-F3145-00-00 OIL SEALOIL SEAL
-
284VP-F3156-00-00 RING, SNAPRING, SNAP
-
294VP-F3346-00-00 BOLT 1BOLT 1
-
305PJ-F3340-01-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
311MH-F3411-00-00 RACE, BALL 1RACE, BALL 1
-
323KW-F3462-00-00 SEAL, DUSTSEAL, DUST
-
333GF-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
344VP-F5875-01-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
355FA-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
365FA-F5886-01-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3795817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-064J1-00 WASHER, PLATEWASHER, PLATE
-
3995607-06100-00 NUT, UNUT, U
-
4090119-05062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
415FA-F5887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4322F-23411-01-00 RACE, BALL 1RACE, BALL 1
-
4422F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
4522F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
4690179-25615-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
4790202-26142-00 WASHER, PLATEWASHER, PLATE
-
484VP-F3418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
494TE-F3416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
50156-23412-00-00 RACE, BALL 2RACE, BALL 2
-
51156-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
