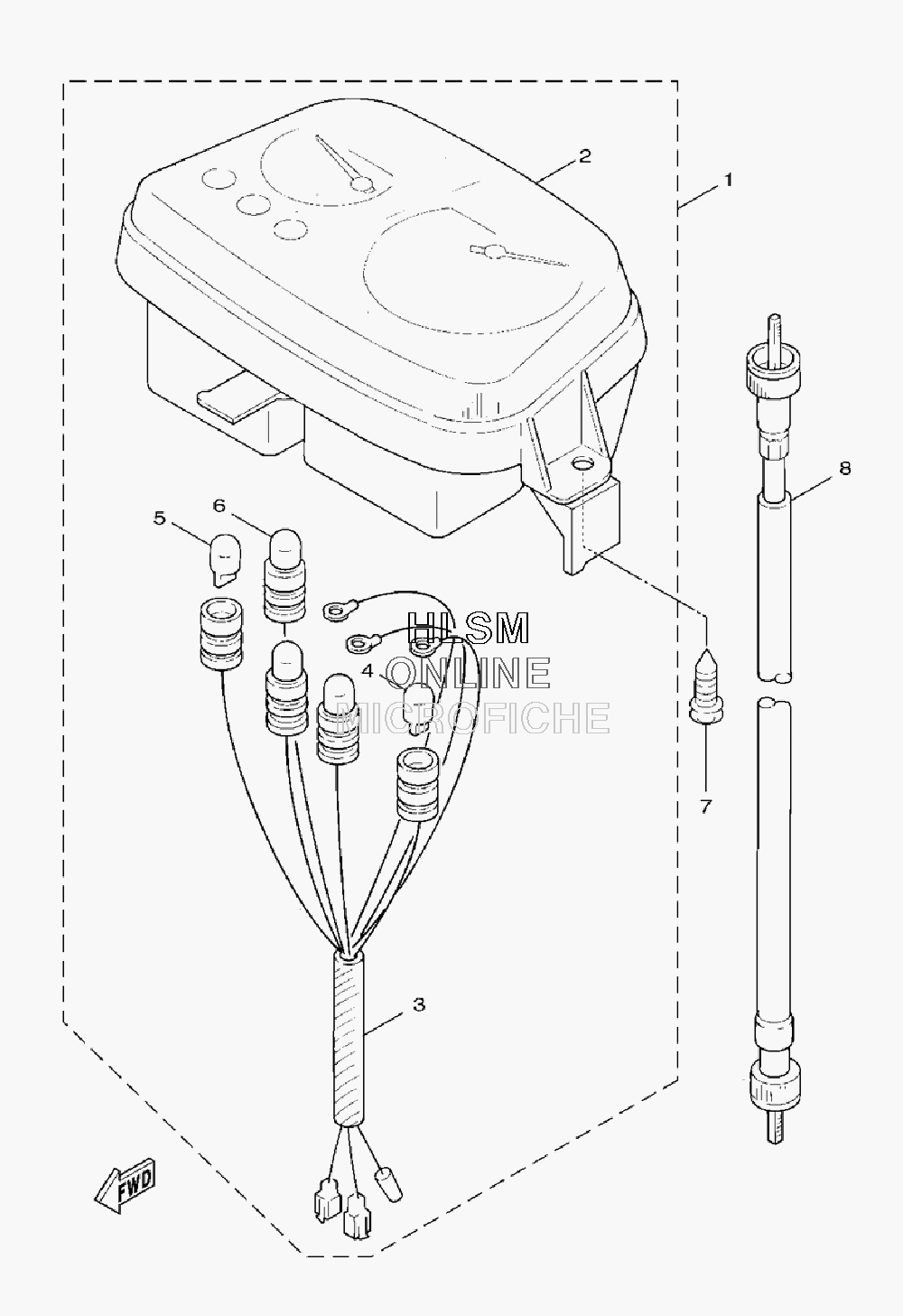

INSTRUMENT PANEL для Yamaha ZUMA - 2009 года выпуска`
-
№АртикулНазвание
-
15PJ-H3510-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
24VP-H353K-00-00 GLASS PLATEGLASS PLATE
-
34VP-H3509-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
44VP-H3517-00-00 BULB (12V 3.4W)BULB (12V 3.4W)
-
53GF-H3517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
64TE-H3518-00-00 BULB, METER (12V 1.7W)BULB, METER (12V 1.7W)
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
85DA-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
