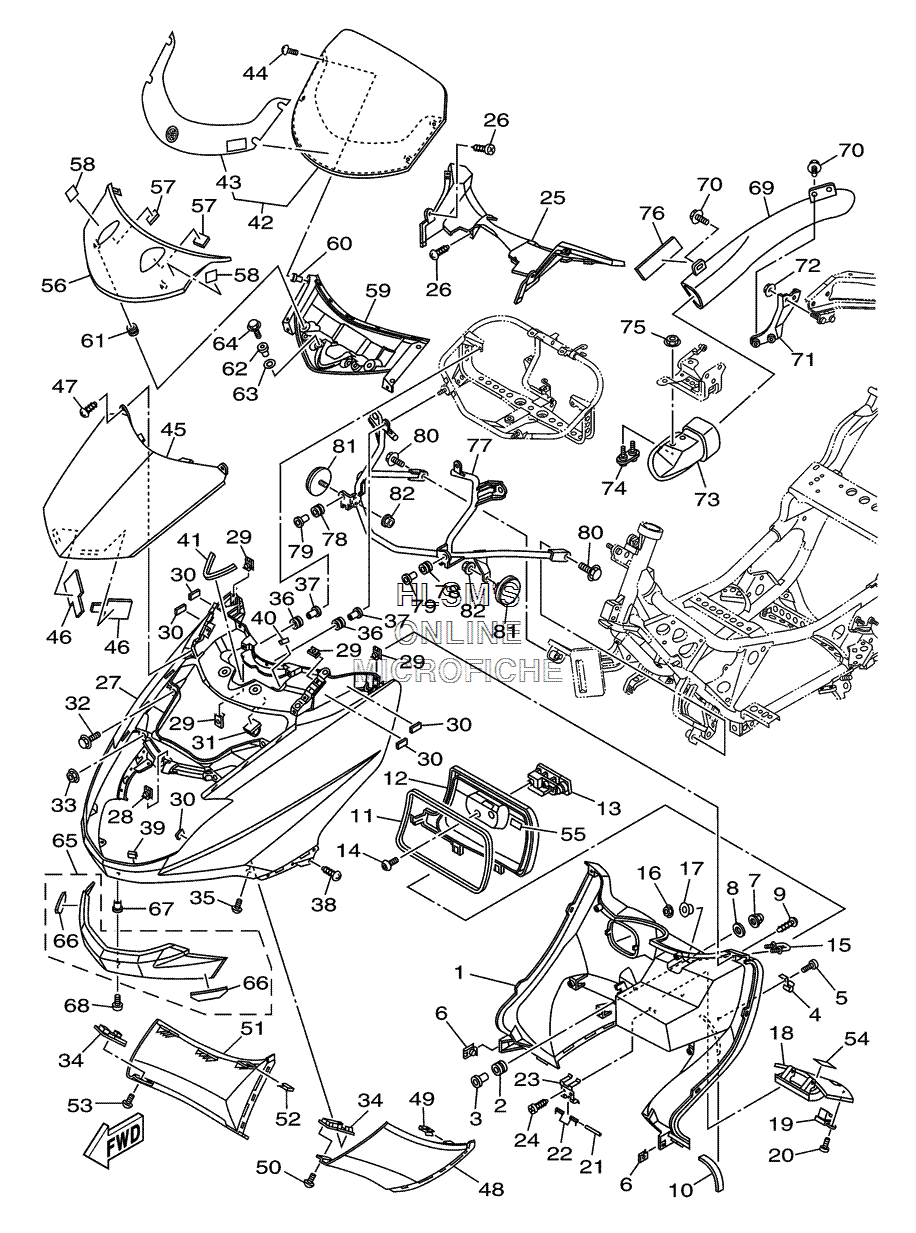

COWLING W/ LEG SHIELD для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-28311-00-00 LEG SHIELD 1LEG SHIELD 1
-
290480-10289-00 GROMMETGROMMET
-
390387-066Y6-00 COLLARCOLLAR
-
41B7-21796-00-00 HINGEHINGE
-
597707-50510-00 SCREW, TAPPINGSCREW, TAPPING
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
790176-06055-00 NUT, CROWNNUT, CROWN
-
890201-065K5-00 WASHER, PLATEWASHER, PLATE
-
997707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
101B7-2834E-00-00 DAMPER 1DAMPER 1
-
111B7-28371-00-00 DAMPERDAMPER
-
121B7-28313-00-00 LIDLID
-
131B7-21708-00-00 LOCK ASSY. 2LOCK ASSY. 2
-
1490111-05016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
151B7-28379-00-00 HOOKHOOK
-
1695707-05500-00 NUT, FLANGENUT, FLANGE
-
1790387-05021-00 COLLARCOLLAR
-
181B7-27453-00-00 COVER 1COVER 1
-
195GM-21780-01-00 LOCK ASSY.LOCK ASSY.
-
2097707-40512-00 SCREW, TAPPINGSCREW, TAPPING
-
2190241-05001-00 PINPIN
-
2290508-12020-00 SPRING, TORSIONSPRING, TORSION
-
231B7-28336-00-00 PLATEPLATE
-
2497707-40512-00 SCREW, TAPPINGSCREW, TAPPING
-
251B7-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
2697707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
271B7-28351-00-P1 BODY, COWLING (SMX)BODY, COWLING (SMX)
-
271B7-28351-00-P4 BODY, COWLING (DPBML)BODY, COWLING (DPBML)
-
2890183-06069-00 NUT, SPRINGNUT, SPRING
-
2990183-05042-00 NUT, SPRINGNUT, SPRING
-
305RU-2139X-00-00 DAMPERDAMPER
-
3190464-25160-00 CLAMPCLAMP
-
3290119-06163-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3395704-06500-00 NUT, FLANGENUT, FLANGE
-
341B7-2833R-00-00 BRKT., 17BRKT., 17
-
3590111-05018-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3690480-14023-00 GROMMETGROMMET
-
3790387-063E6-00 COLLARCOLLAR
-
3897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
395JW-23844-00-00 SEALSEAL
-
405RU-28307-00-00 SEALSEAL
-
411B7-2834E-00-00 DAMPER 1DAMPER 1
-
421B7-Y2881-10-00 WINDSHIELDWINDSHIELD
-
431B7-2832P-01-00 ...GRAPHIC 18...GRAPHIC 18
-
4490150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
451B7-28345-00-P1 MOLE 1 (SMK)MOLE 1 (SMK)
-
451B7-28345-00-P4 MOLE 1 (DPBML)MOLE 1 (DPBML)
-
461B7-2834F-00-00 DAMPERDAMPER
-
4790167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
481B7-21519-00-P1 MOLE, FENDER (SMX)MOLE, FENDER (SMX)
-
481B7-21519-00-P4 MOLE, FENDER (DPBML)MOLE, FENDER (DPBML)
-
4990183-05042-00 NUT, SPRINGNUT, SPRING
-
5090111-05018-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
511B7-21529-00-P1 MOLD, FENDER (SMX)MOLD, FENDER (SMX)
-
511B7-21529-00-P4 MOLD, FENDER (DPBML)MOLD, FENDER (DPBML)
-
5290183-05042-00 NUT, SPRINGNUT, SPRING
-
5390111-05018-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
545GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
555RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
561B7-28365-00-P0 COVER (LIGHT GRAY METALLIC 3)COVER (LIGHT GRAY METALLIC 3)
-
575RU-2139X-00-00 DAMPERDAMPER
-
581UF-15379-00-00 SEALSEAL
-
591B7-28395-00-00 COVER, UNDERCOVER, UNDER
-
6090179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
6190480-13567-00 GROMMETGROMMET
-
6290387-06089-00 COLLARCOLLAR
-
634XV-28372-00-00 DAMPERDAMPER
-
6495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
651B7-Y2804-00-00 MOLE 3 ASSY.MOLE 3 ASSY.
-
661B7-28372-00-00 ...DAMPER...DAMPER
-
6790179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
6890150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
691B7-2838N-00-00 DUCT 1DUCT 1
-
7095807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711B7-2117A-01-00 STAYSTAY
-
7295707-06500-00 NUT, FLANGENUT, FLANGE
-
731B7-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
741B7-28321-00-00 STAY 1STAY 1
-
7595707-06500-00 NUT, FLANGENUT, FLANGE
-
765GJ-24724-01-00 DAMPER, SEATDAMPER, SEAT
-
771B7-28357-10-00 STAY 2STAY 2
-
7890480-14229-00 GROMMETGROMMET
-
7990387-07391-00 COLLARCOLLAR
-
8095812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
814AG-85111-00-00 REFLECTOR, 1REFLECTOR, 1
-
8295607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
