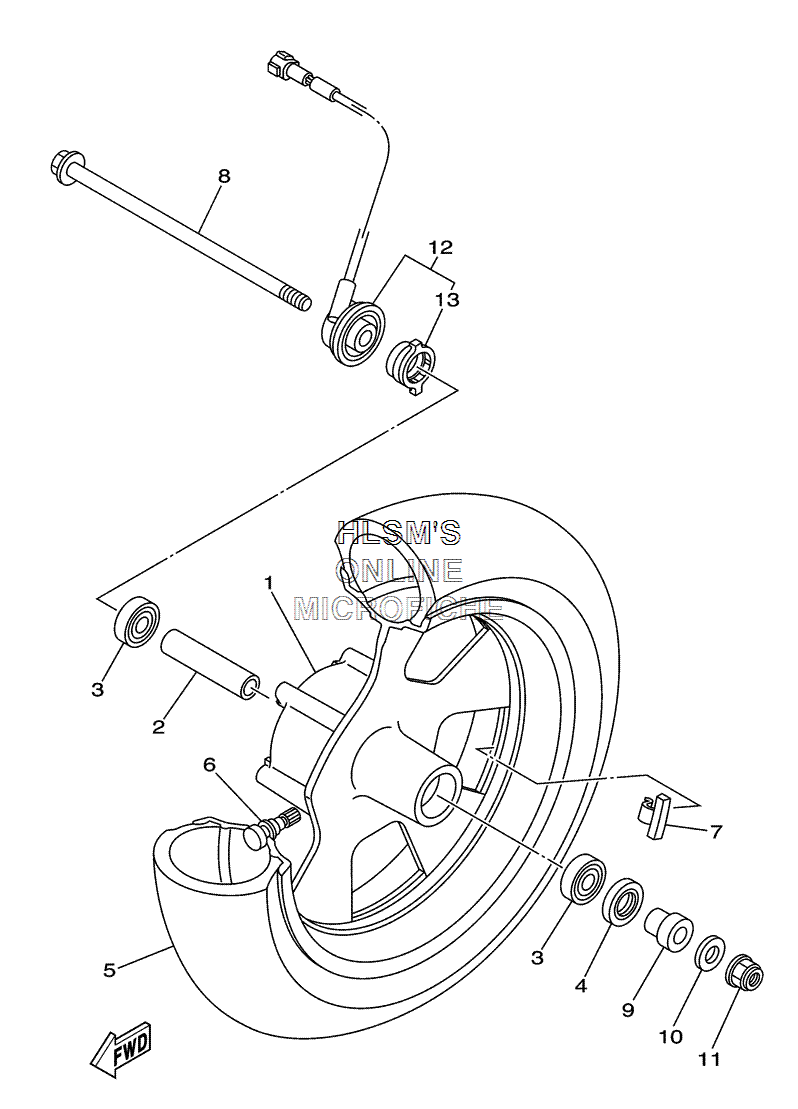

WHEEL - FRONT для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-25168-10-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
25RB-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
393306-30212-00 BEARINGBEARING
-
493106-22001-00 OIL SEALOIL SEAL
-
594112-13008-00 TIRE (120/70-13M/C 53P D305F) (DUNLOP)TIRE (120/70-13M/C 53P D305F) (DUNLOP)
-
693900-00022-00 VALVE, RIMVALVE, RIM
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
84HC-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
990387-151R0-00 COLLARCOLLAR
-
1090201-140H8-00 WASHER, PLATEWASHER, PLATE
-
1195607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
121B7-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
135VU-2517G-00-00 ...ROTOR, SENSOR...ROTOR, SENSOR
