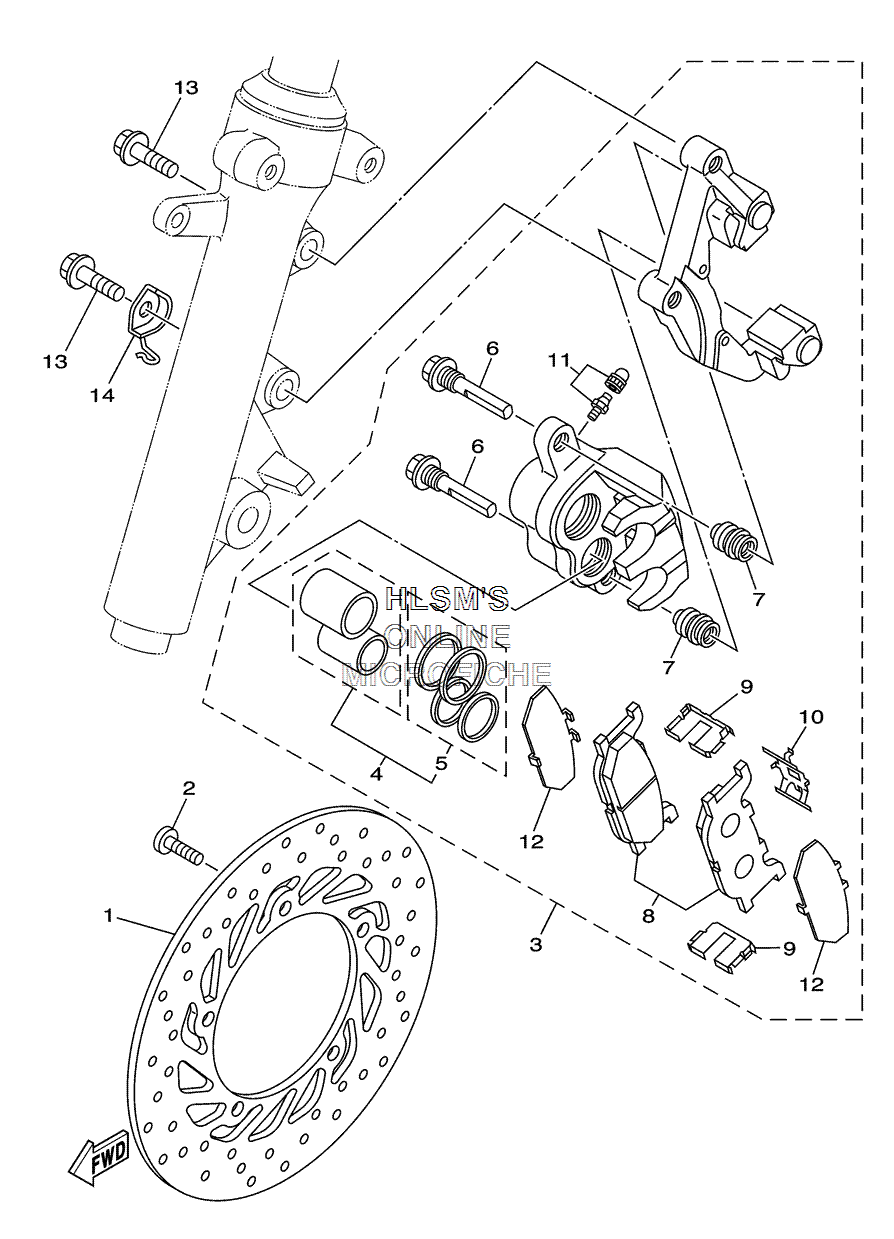

BRAKE - FRONT CALIPER для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-2582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290109-083G4-00 BOLTBOLT
-
31B7-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
45KS-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
54FU-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
81B7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
125VU-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
141B7-23317-00-00 HOLDER, CABLEHOLDER, CABLE
