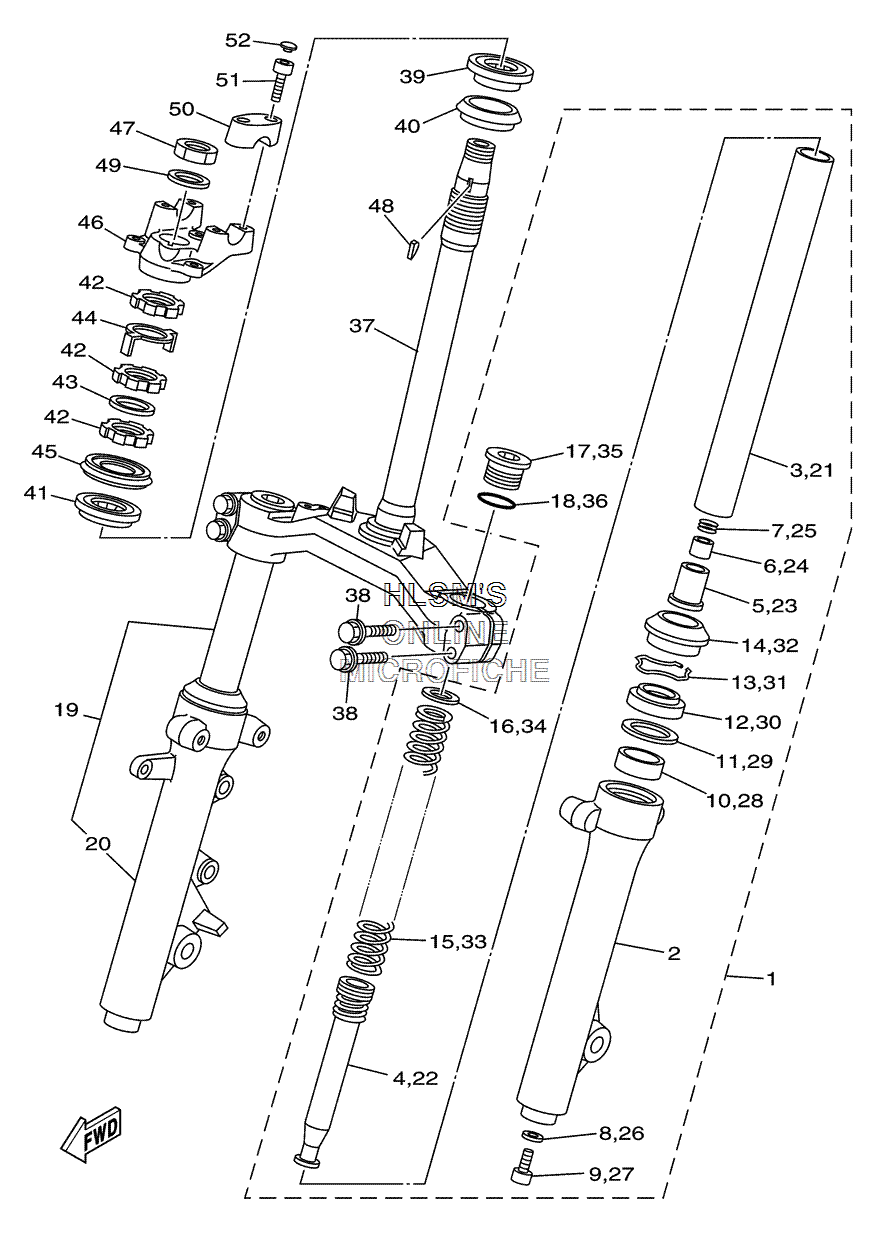

SUSPENSION - FRONT FORK для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-23102-01-00 FRONT FORK ASSY. (L.H)FRONT FORK ASSY. (L.H)
-
21B7-23126-01-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
31B7-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
41B7-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
55XT-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
65XT-23363-00-00 ...COLLAR 1...COLLAR 1
-
75XT-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
81N1-23158-00-00 ...GASKET...GASKET
-
991311-08025-00 ...BOLT...BOLT
-
104HC-23125-20-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
1122W-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
122UJ-23145-00-00 ...OIL SEAL...OIL SEAL
-
1322W-23153-L0-00 ...RING, SNAP...RING, SNAP
-
142UJ-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
151B7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
161B7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
175RB-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
183J2-23114-00-00 ...O-RING...O-RING
-
191B7-23103-01-00 FRONT FORK ASSY. (R.H)FRONT FORK ASSY. (R.H)
-
201B7-23136-01-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
211B7-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
221B7-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
235XT-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
245XT-23363-00-00 ...COLLAR 1...COLLAR 1
-
255XT-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
261N1-23158-00-00 ...GASKET...GASKET
-
2791311-08025-00 ...BOLT...BOLT
-
284HC-23125-20-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2922W-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
302UJ-23145-00-00 ...OIL SEAL...OIL SEAL
-
3122W-23153-L0-00 ...RING, SNAP...RING, SNAP
-
322UJ-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
331B7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
341B7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
355RB-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
363J2-23114-00-00 ...O-RING...O-RING
-
371B7-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
381B7-23436-00-00 BOLTBOLT
-
3993399-99932-00 BEARINGBEARING
-
403FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4193399-99932-00 BEARINGBEARING
-
4290179-30003-00 NUTNUT
-
4390202-30235-00 WASHER, PLATEWASHER, PLATE
-
444XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
451B7-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
461B7-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
4790170-25008-00 NUTNUT
-
4890280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
4990201-25019-00 WASHER, PLATEWASHER, PLATE
-
504H7-23441-01-38 HOLDER, HANDLE UPPER (CLEAR WITH BUFF))HOLDER, HANDLE UPPER (CLEAR WITH BUFF))
-
5191314-08030-00 BOLTBOLT
-
5290338-08163-00 PLUGPLUG
