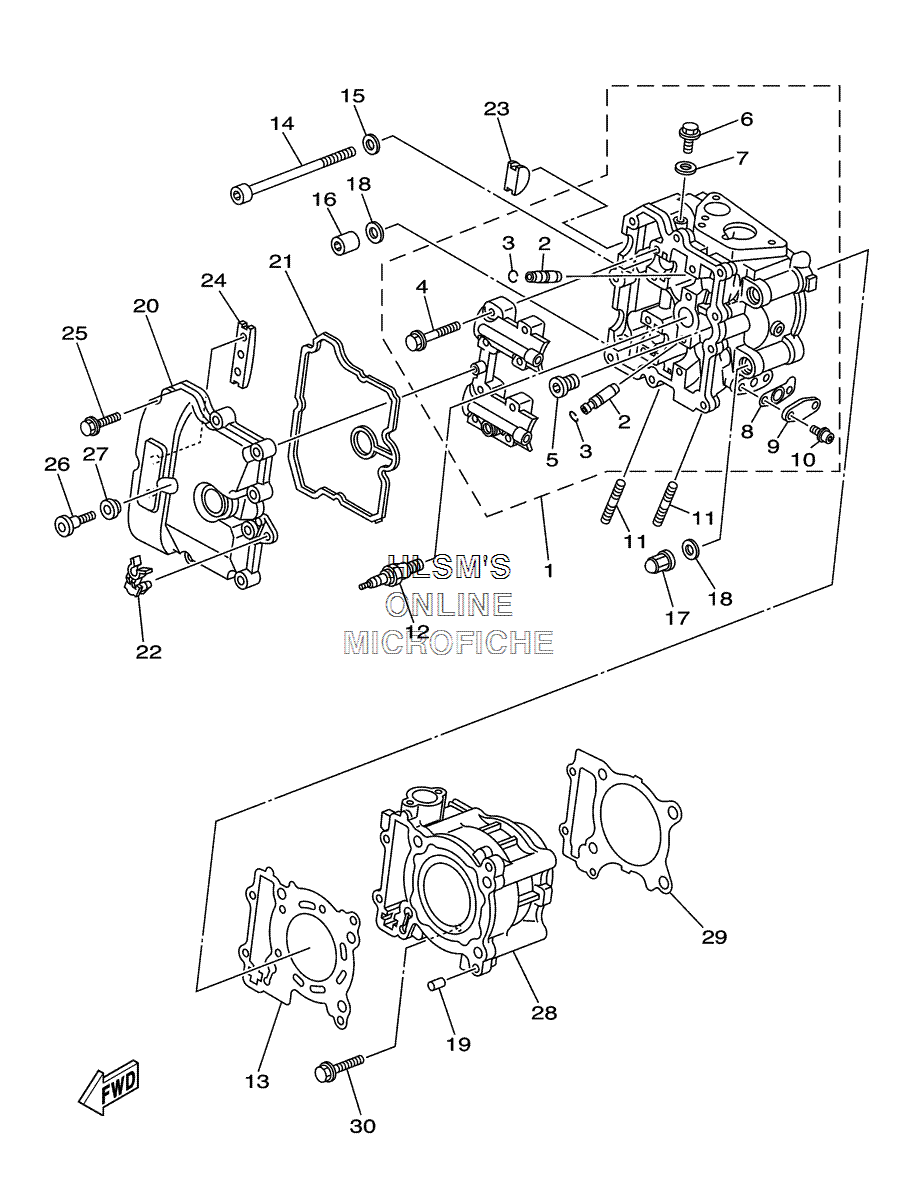

CYLINDER W/ HEAD ASSY. для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-11101-00-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
25VG-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-10153-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
490105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
590340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
690105-06424-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
790430-06014-00 ...GASKET...GASKET
-
85GM-14815-00-00 ...GASKET...GASKET
-
91B7-1482K-00-00 ...PLATE...PLATE
-
1090110-06107-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1195617-08620-00 BOLT, STUDBOLT, STUD
-
12NGK-CPR7E-A9-00 PLUG, SPARK (NGK CPR7EA)PLUG, SPARK (NGK CPR7EA)
-
135VG-11181-00-00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1491318-06150-00 BOLTBOLT
-
1590201-06016-00 WASHER, PLATEWASHER, PLATE
-
1690179-10006-00 NUTNUT
-
1790176-10075-00 NUT, CROWNNUT, CROWN
-
1890201-103M4-00 WASHER, PLATEWASHER, PLATE
-
1999530-10014-00 PIN, DOWELPIN, DOWEL
-
205RU-11191-00-00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
215RU-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
2290464-09017-00 CLAMPCLAMP
-
235RU-11138-00-00 PLUGPLUG
-
245BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
2595027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2690109-066F0-00 BOLTBOLT
-
274KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
285VG-11311-00-00 CYLINDER 1CYLINDER 1
-
295VG-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
3095027-06030-00 BOLT, FLANGEBOLT, FLANGE
