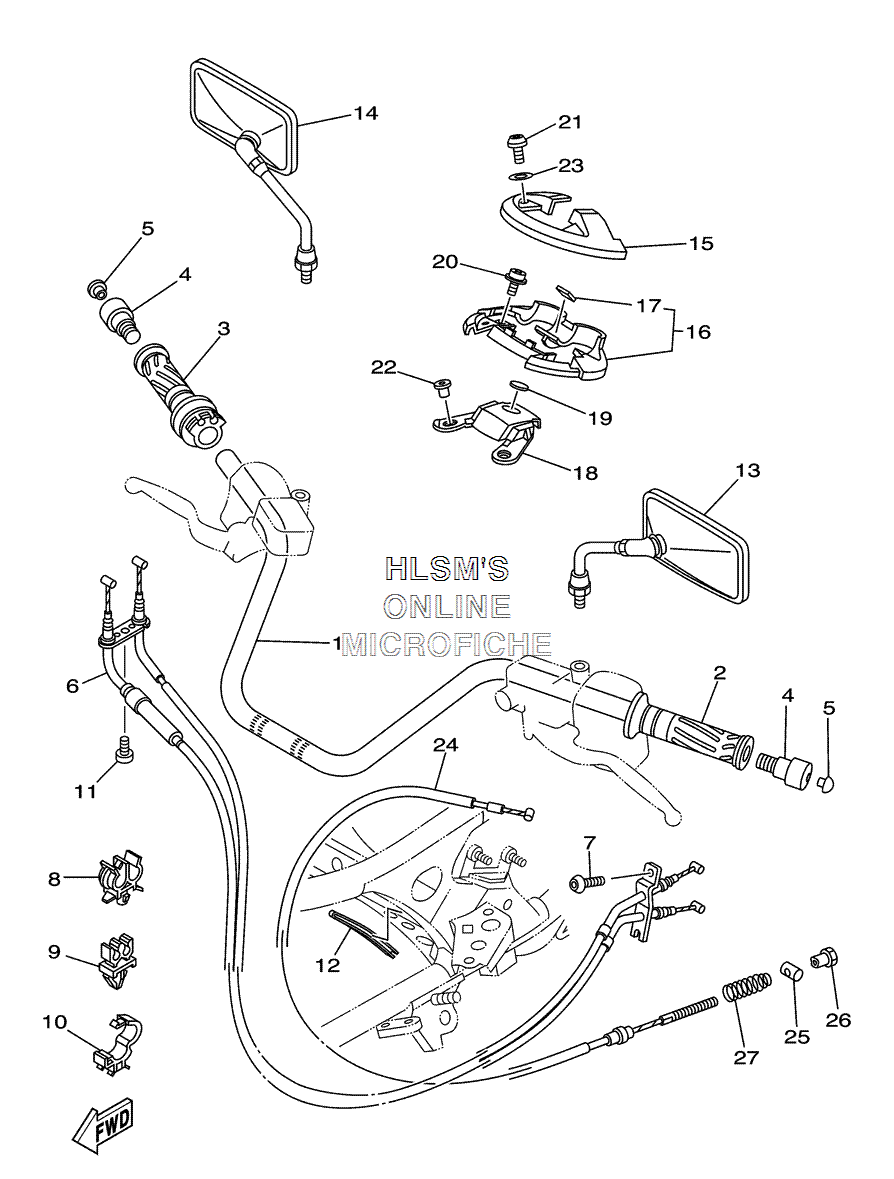

HANDLEBAR W/ CABLES для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-26111-00-00 HANDLEBARHANDLEBAR
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSY.GRIP ASSY.
-
45VG-26246-00-00 END, GRIPEND, GRIP
-
55EL-23469-00-00 CAP, BOLTCAP, BOLT
-
61B7-26301-01-00 THROTTLE CABLE ASSY.THROTTLE CABLE ASSY.
-
792017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
890464-11007-00 CLAMPCLAMP
-
990464-07009-00 CLAMPCLAMP
-
1090464-20191-00 CLAMPCLAMP
-
1198507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
124BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
131B7-26280-10-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
141B7-26290-10-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
151B7-26143-00-00 COVER, HANDLEBAR UPPER 1COVER, HANDLEBAR UPPER 1
-
161B7-26230-00-00 HANDLE COVER ASSY.HANDLE COVER ASSY.
-
171B7-26113-00-00 ...DAMPER...DAMPER
-
181B7-26145-00-00 COVER, HANDLEBAR UPPER 2COVER, HANDLEBAR UPPER 2
-
194XV-2341B-00-00 EMBLEMEMBLEM
-
2090159-05028-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2190111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290179-05523-00 NUTNUT
-
2390202-06007-00 WASHER, PLATEWASHER, PLATE
-
241B7-2835X-00-00 WIREWIRE
-
2590249-12004-00 PINPIN
-
2690179-06018-00 NUTNUT
-
275VU-25333-00-00 SPRING, RETURNSPRING, RETURN
