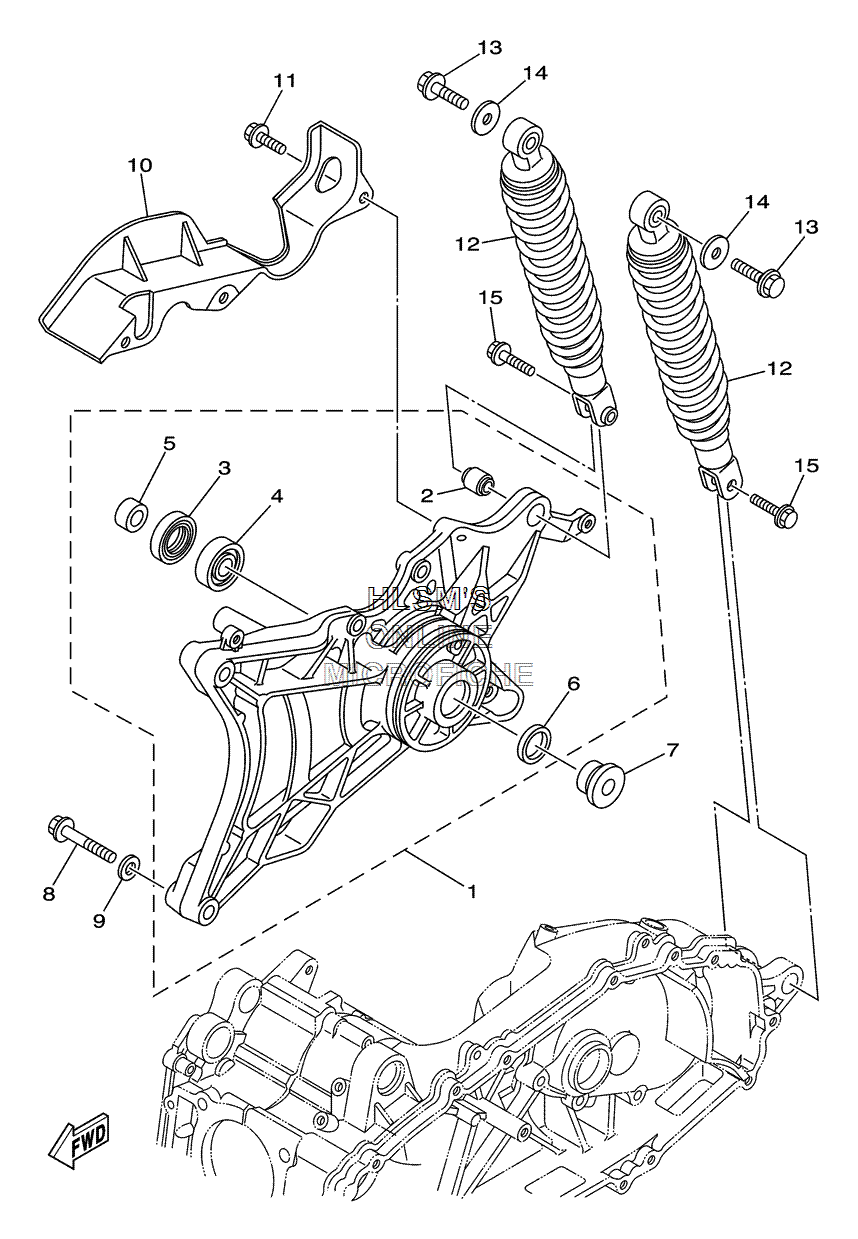

SUSPENSION - REAR ARM W/ SHOCK для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
11B7-22100-00-00 REAR ARM ASSY.REAR ARM ASSY.
-
25RU-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
393106-26005-00 ...OIL SEAL, DD-TYPE...OIL SEAL, DD-TYPE
-
493306-30212-00 ...BEARING...BEARING
-
590387-15006-00 ...COLLAR...COLLAR
-
693109-28043-00 ...OIL SEAL, SDO-TYPE...OIL SEAL, SDO-TYPE
-
790387-15005-00 COLLARCOLLAR
-
895817-10060-00 BOLT, FLANGEBOLT, FLANGE
-
990201-120K4-00 WASHER, PLATEWASHER, PLATE
-
101B7-22866-00-00 COVER, REARCOVER, REAR
-
1190109-063F1-00 BOLTBOLT
-
121B7-22210-10-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
1395827-10035-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490201-105A2-00 WASHER, PLATEWASHER, PLATE
-
1595817-08030-00 BOLT, FLANGEBOLT, FLANGE
