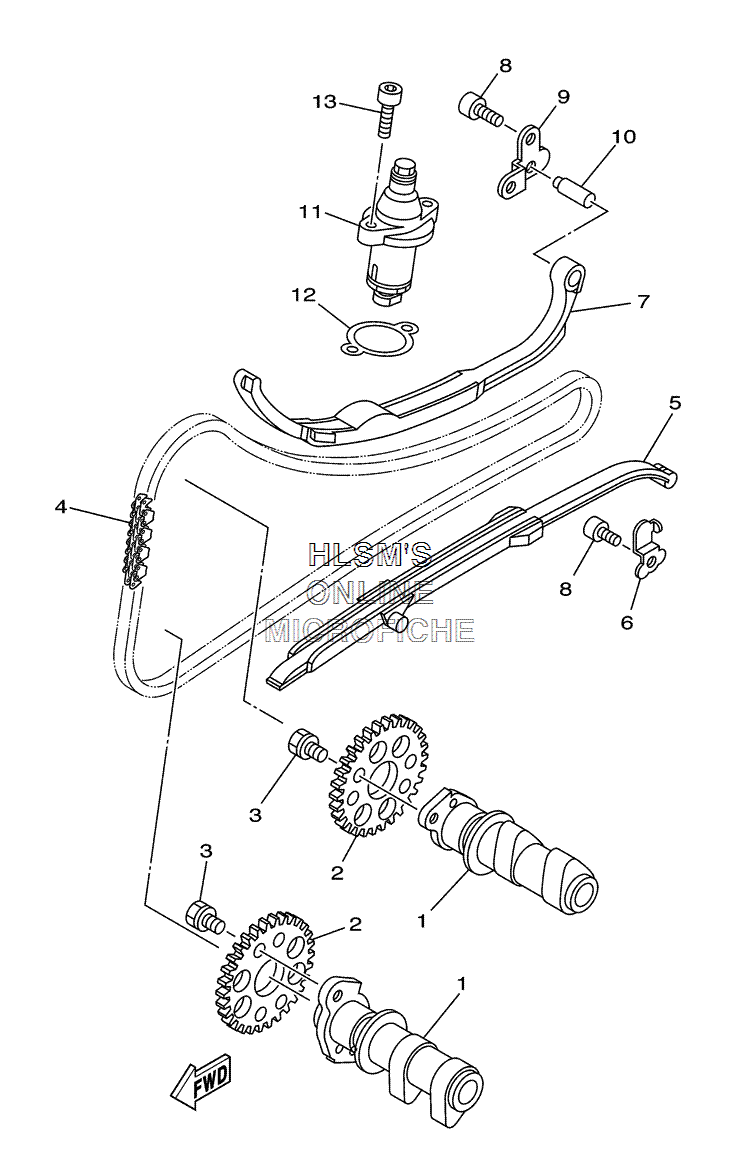

CAMSHAFT W/ CHAIN для Yamaha MORPHOUS - 2006 года выпуска`
-
№АртикулНазвание
-
15VG-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
21B7-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07005-00 BOLT, FLANGEBOLT, FLANGE
-
494582-18136-00 CHAINCHAIN
-
55RU-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
65RU-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
75RU-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
890110-06226-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95RU-12243-00-00 PLATE, GUIDE STOPPER 2PLATE, GUIDE STOPPER 2
-
105RU-12257-00-00 SHAFT 2SHAFT 2
-
115VG-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
124FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1391317-06020-00 BOLTBOLT
