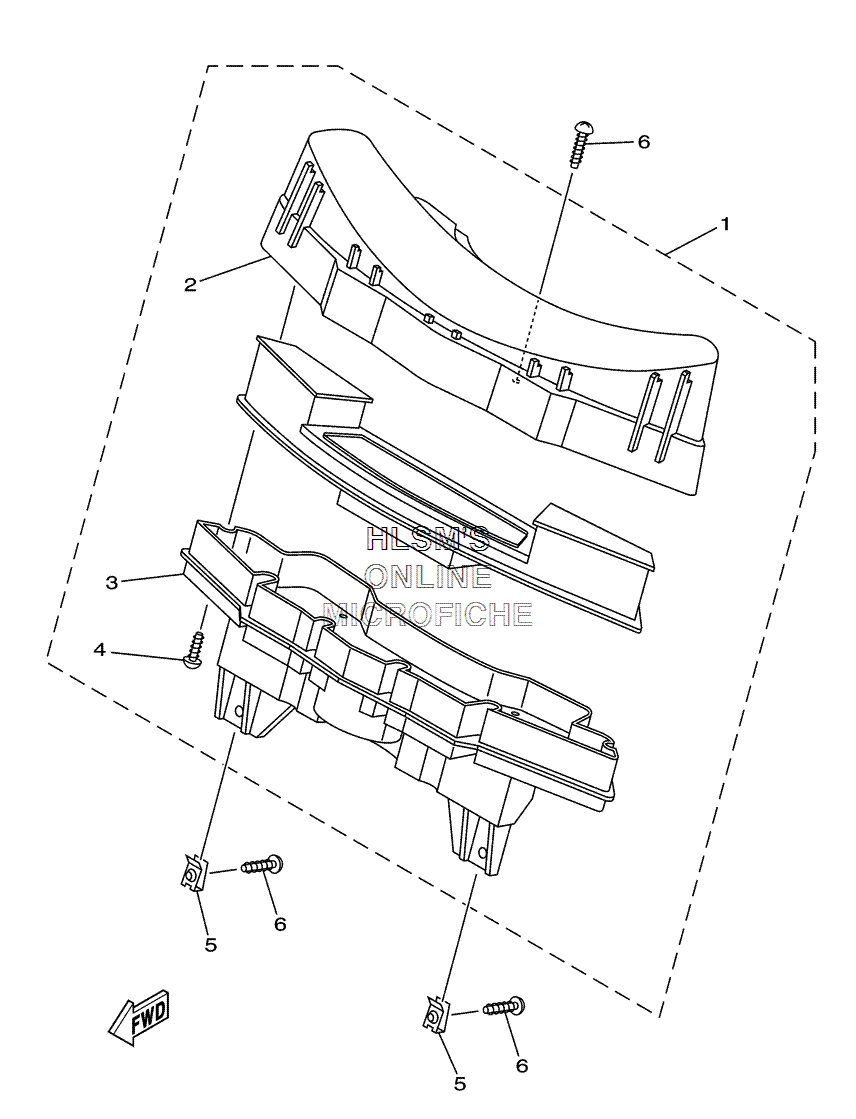

INSTRUMENT PANEL для Yamaha MORPHOUS - 2006 года выпуска
-
№АртикулНазвание
-
11B7-83500-10-00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
21B7-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
31B7-8353F-00-00 ...CASE, METER LOWER...CASE, METER LOWER
-
497707-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
590183-05042-00 NUT, SPRINGNUT, SPRING
-
697707-50016-00 SCREW, TAPPINGSCREW, TAPPING
