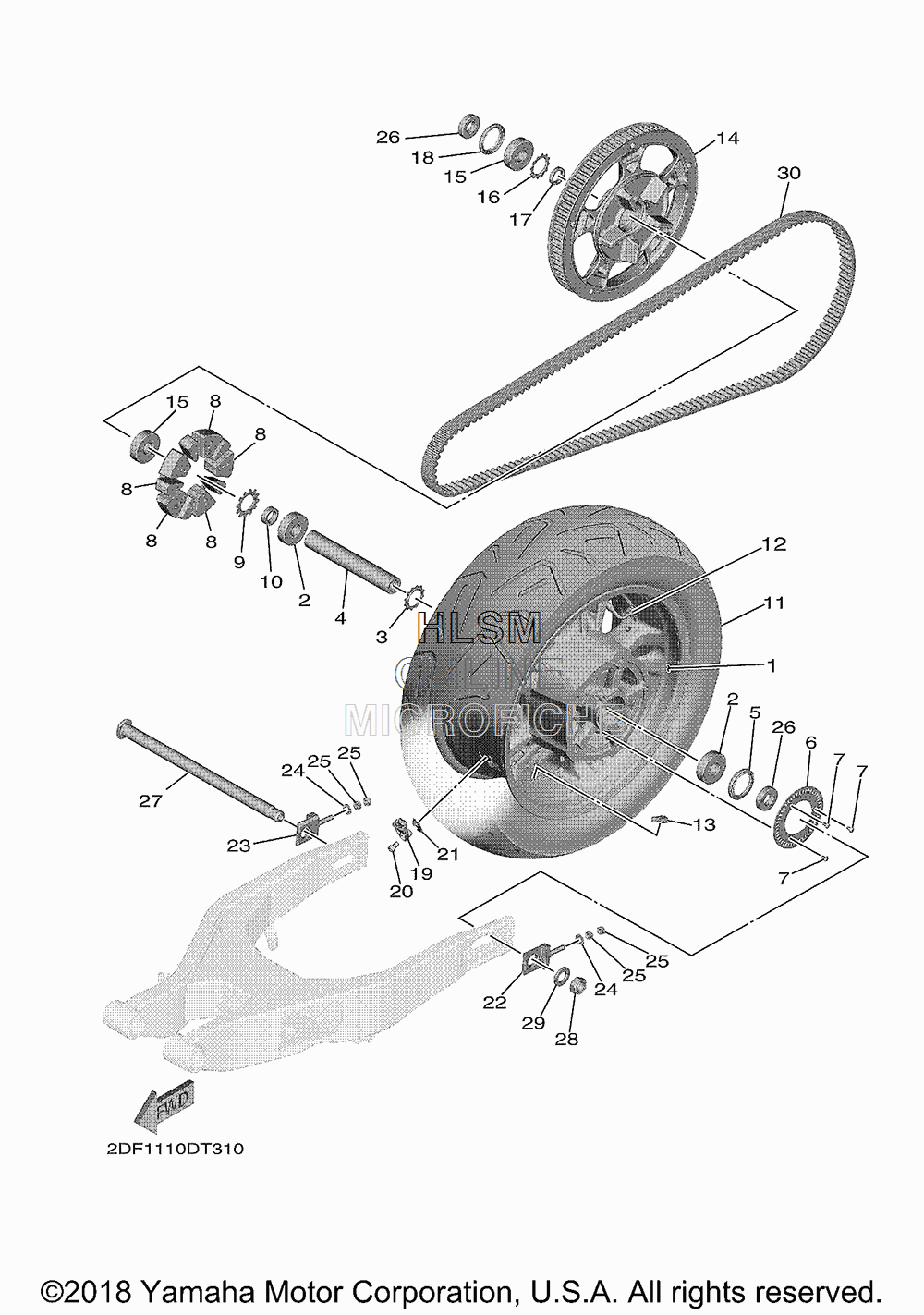

WHEEL - REAR для Yamaha STAR VENTURE - 2018 года выпуска`
-
№АртикулНазвание
-
12DF-25338-00-00 CAST WHEEL, REARCAST WHEEL, REAR
-
293306-37219-00 BEARINGBEARING
-
32DF-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
42DF-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
593105-42024-00 OIL SEALOIL SEAL
-
61XC-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
790149-05029-00 SCREWSCREW
-
82DF-25364-00-00 DAMPERDAMPER
-
92DF-25316-00-00 FLANGE, SPACER 2FLANGE, SPACER 2
-
102DF-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1194120-16008-00 TIRE (200/55R16M/C 77H)TIRE (200/55R16M/C 77H)
-
1293900-00025-00 VALVE, RIM (PVR59A)VALVE, RIM (PVR59A)
-
135MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
135MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
135MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
142DF-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
1593306-37219-00 BEARINGBEARING
-
162DF-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
172DF-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1893105-42024-00 OIL SEALOIL SEAL
-
192DF-82765-00-00 SENSOR, TIRE PRESS.SENSOR, TIRE PRESS.
-
202DF-25411-00-00 BOLTBOLT
-
212DF-2511A-00-00 PLATE, FLANGEPLATE, FLANGE
-
222DF-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
232DF-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2492902-08200-00 WASHERWASHER
-
2595302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2690387-22034-00 COLLARCOLLAR
-
272DF-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2890185-20002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990201-20036-00 WASHER, PLATEWASHER, PLATE
-
302DF-46241-00-00 BELTBELT
