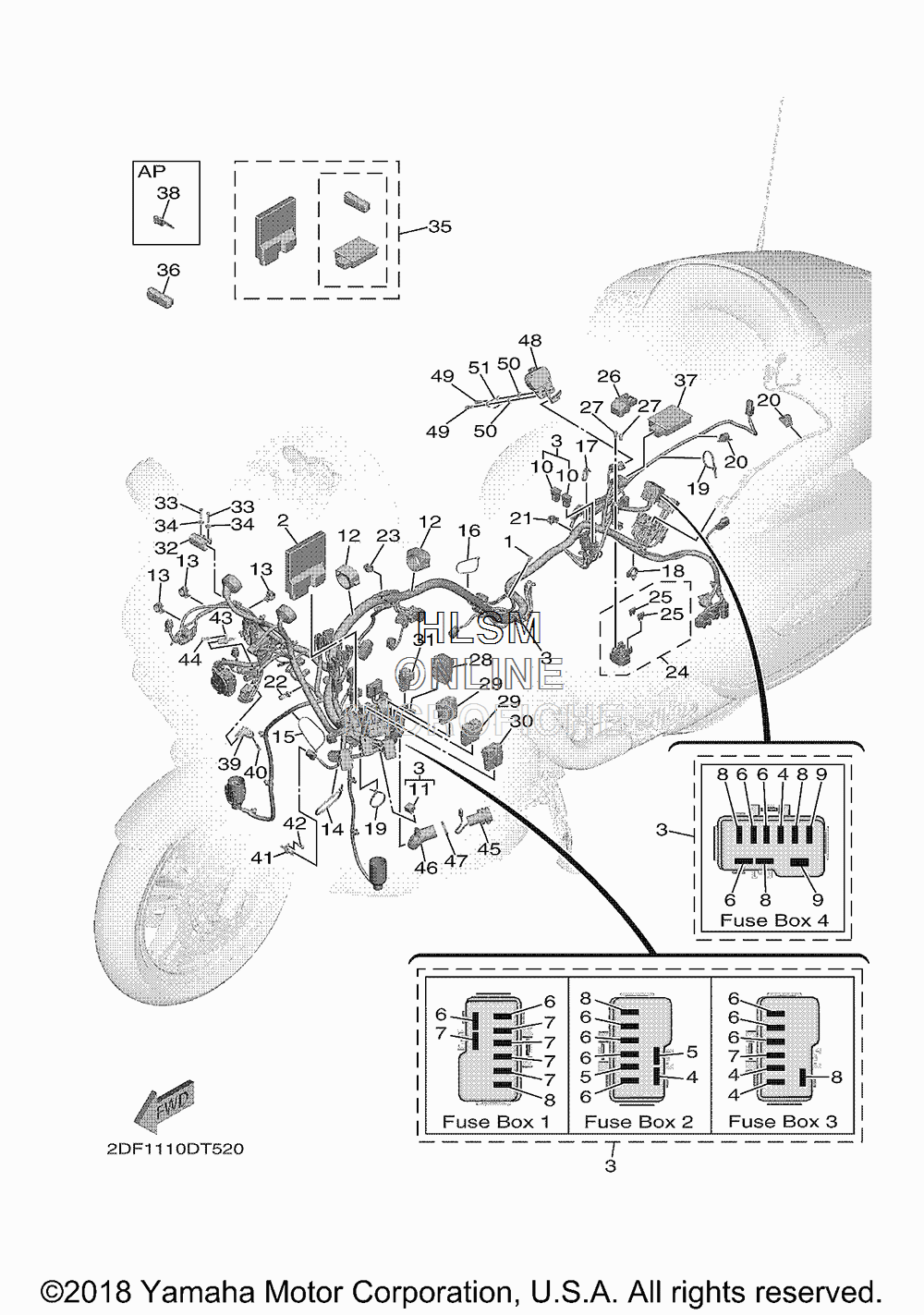

ELECTRICAL 2 для Yamaha STAR VENTURE - 2018 года выпуска`
-
№АртикулНазвание
-
190153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
22DF-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
32DF-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
45JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
55JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
65JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
75JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
85JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
95JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
105JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
113XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
1290464-40002-00 CLAMPCLAMP
-
1390464-16006-00 CLAMPCLAMP
-
1490464-80002-00 CLAMPCLAMP
-
153MA-82591-00-00 BANDBAND
-
1690460-15126-00 CLAMP, HOSECLAMP, HOSE
-
1790464-12045-00 CLAMPCLAMP
-
1890464-20181-00 CLAMPCLAMP
-
191UA-82591-00-00 BANDBAND
-
2090464-13185-00 CLAMPCLAMP
-
2190464-11003-00 CLAMPCLAMP
-
2290464-20016-00 CLAMPCLAMP
-
2390464-14010-00 CLAMPCLAMP
-
242DF-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2536Y-82151-00-00 ...FUSE (15A-BLUE)...FUSE (15A-BLUE)
-
265SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2795027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
285VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
295XT-81950-00-00 RELAY ASSYRELAY ASSY
-
305XT-81950-00-00 RELAY ASSYRELAY ASSY
-
315DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
325VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3391312-04025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490201-04030-00 WASHER, PLATEWASHER, PLATE
-
352DF-W862A-00-00 REMOTE CONTROL UNIT SETREMOTE CONTROL UNIT SET
-
362DF-86261-00-00 XMTR. COMP.XMTR. COMP.
-
372DF-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
-
382DF-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
391WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
4091312-05020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
415YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4292012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
435YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4492012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4523P-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
46538-82599-10-00 COVER, CONNECTERCOVER, CONNECTER
-
4790464-25004-00 CLAMPCLAMP
-
482DF-82627-00-00 SWITCHSWITCH
-
4992017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5090201-06045-00 WASHER, PLATEWASHER, PLATE
-
512DF-82389-10-00 PLATE 2PLATE 2
