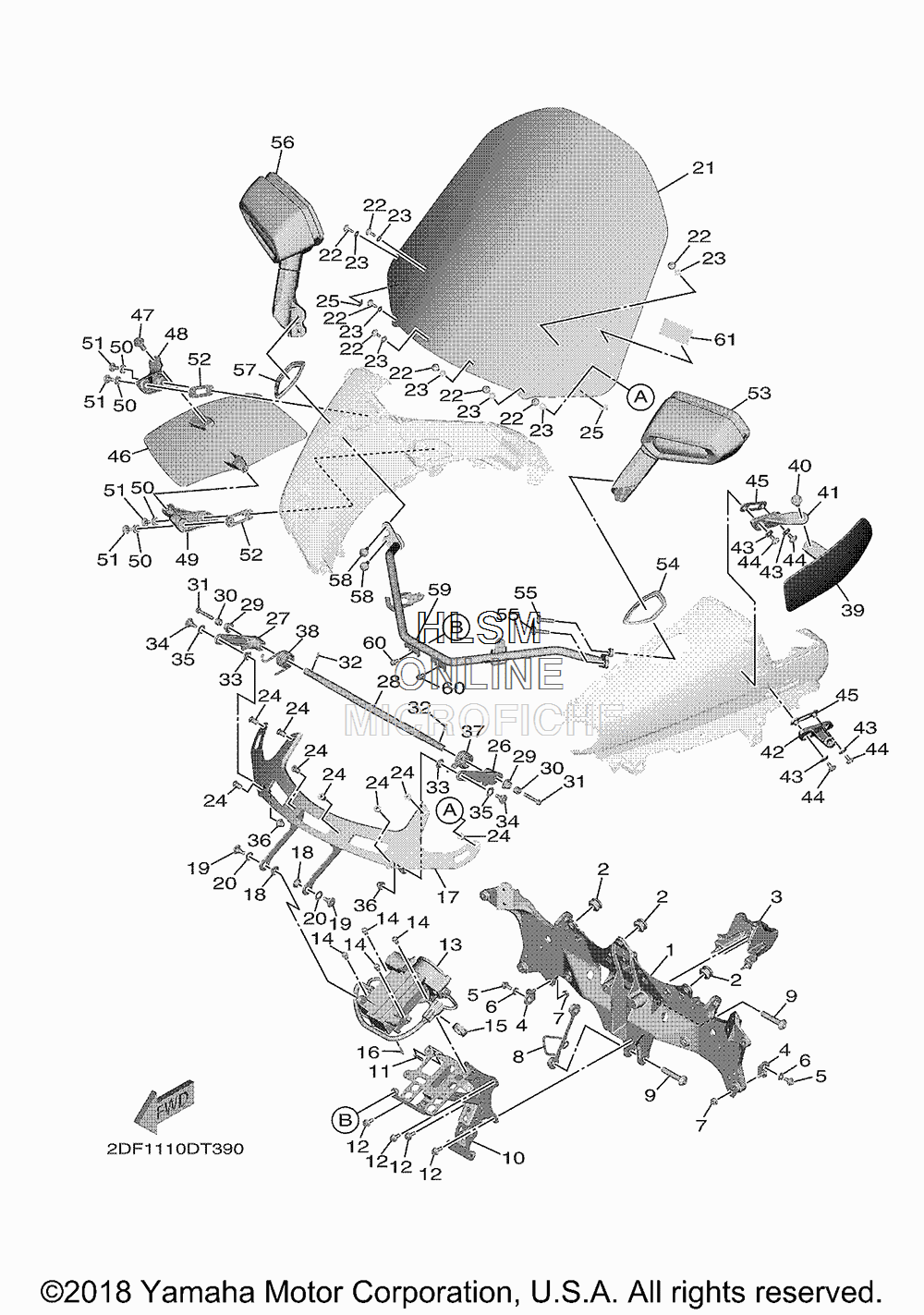

COWLING 3 для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-28356-00-00 STAY 1STAY 1
-
290480-09M21-00 GROMMETGROMMET
-
32DF-28239-00-00 COVER 3COVER 3
-
42DF-2831U-00-00 STAY, SIDE 1STAY, SIDE 1
-
590110-06108-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690201-06045-00 WASHER, PLATEWASHER, PLATE
-
790179-06075-00 NUTNUT
-
82DF-28336-00-00 PLATEPLATE
-
990111-10054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
102DF-28332-00-00 STAY, LEG SHIELDSTAY, LEG SHIELD
-
111UF-15379-00-00 SEALSEAL
-
1295D32-06014-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
132DF-83306-00-00 DRIVE UNIT ASSYDRIVE UNIT ASSY
-
1495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1590464-20181-00 CLAMPCLAMP
-
1690465-10098-00 CLAMPCLAMP
-
172DF-28322-00-00 STAY 2STAY 2
-
185JW-28329-00-00 SPACERSPACER
-
192DF-28374-10-00 BOLT, COWLINGBOLT, COWLING
-
2090202-10044-00 WASHER, PLATEWASHER, PLATE
-
212DF-28381-00-00 WINDSHIELDWINDSHIELD
-
2290111-05051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390202-05180-00 WASHER, PLATEWASHER, PLATE
-
2490179-05523-00 NUTNUT
-
2590520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
262DF-2833C-00-00 LINK 1LINK 1
-
272DF-2833D-00-00 LINK 2LINK 2
-
282DF-2833P-00-00 LINK 3LINK 3
-
2990381-12003-00 BUSH, SOLIDBUSH, SOLID
-
3090387-06330-00 COLLARCOLLAR
-
3195024-06030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
3291690-30012-00 PIN, SPRINGPIN, SPRING
-
335JW-28329-00-00 SPACERSPACER
-
342DF-28374-10-00 BOLT, COWLINGBOLT, COWLING
-
3590202-10044-00 WASHER, PLATEWASHER, PLATE
-
3690176-06082-00 NUT, CROWNNUT, CROWN
-
3790508-35020-00 SPRING, TORSIONSPRING, TORSION
-
3890508-35018-00 SPRING, TORSIONSPRING, TORSION
-
392DF-2830C-00-00 VISOR, SIDE 1VISOR, SIDE 1
-
4090269-10006-00 RIVETRIVET
-
412DF-28366-00-00 BRACKETBRACKET
-
422DF-2833H-00-00 BRACKET 11BRACKET 11
-
4390201-064J1-00 WASHER, PLATEWASHER, PLATE
-
4490111-06101-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
452DF-2836J-00-00 BRACKET 6BRACKET 6
-
462DF-2830D-00-00 VISOR, SIDE 2VISOR, SIDE 2
-
4790269-10006-00 RIVETRIVET
-
482DF-28367-00-00 BRACKETBRACKET
-
492DF-2833J-00-00 BRACKET 12BRACKET 12
-
5090201-064J1-00 WASHER, PLATEWASHER, PLATE
-
5190111-06101-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
522DF-2836J-00-00 BRACKET 6BRACKET 6
-
532DF-26280-00-P0 REAR VIEW MIRROR ASSY (LEFT) (DNMG - DARK GRAY)REAR VIEW MIRROR ASSY (LEFT) (DNMG - DARK GRAY)
-
532DF-26280-00-P2 REAR VIEW MIRROR ASSY (LEFT) (SMX - BLACK METALLIC FOR DRMD - DULL RED)REAR VIEW MIRROR ASSY (LEFT) (SMX - BLACK METALLIC FOR DRMD - DULL RED)
-
542DF-2628N-00-00 BASE, MIRROR (LEFT)BASE, MIRROR (LEFT)
-
5590109-06031-00 BOLTBOLT
-
562DF-26290-00-P0 REAR VIEW MIRROR ASSY (RIGHT) (DNMG - DARK GRAY)REAR VIEW MIRROR ASSY (RIGHT) (DNMG - DARK GRAY)
-
562DF-26290-00-P2 REAR VIEW MIRROR ASSY (RIGHT) (SMX - BLACK METALLIC FOR DRMD - DULL RED)REAR VIEW MIRROR ASSY (RIGHT) (SMX - BLACK METALLIC FOR DRMD - DULL RED)
-
572DF-2628R-00-00 BASE, MIRROR (RIGHT)BASE, MIRROR (RIGHT)
-
5890109-06031-00 BOLTBOLT
-
592DF-2831W-00-00 STAY, MIRROR 1STAY, MIRROR 1
-
6095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
614B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
