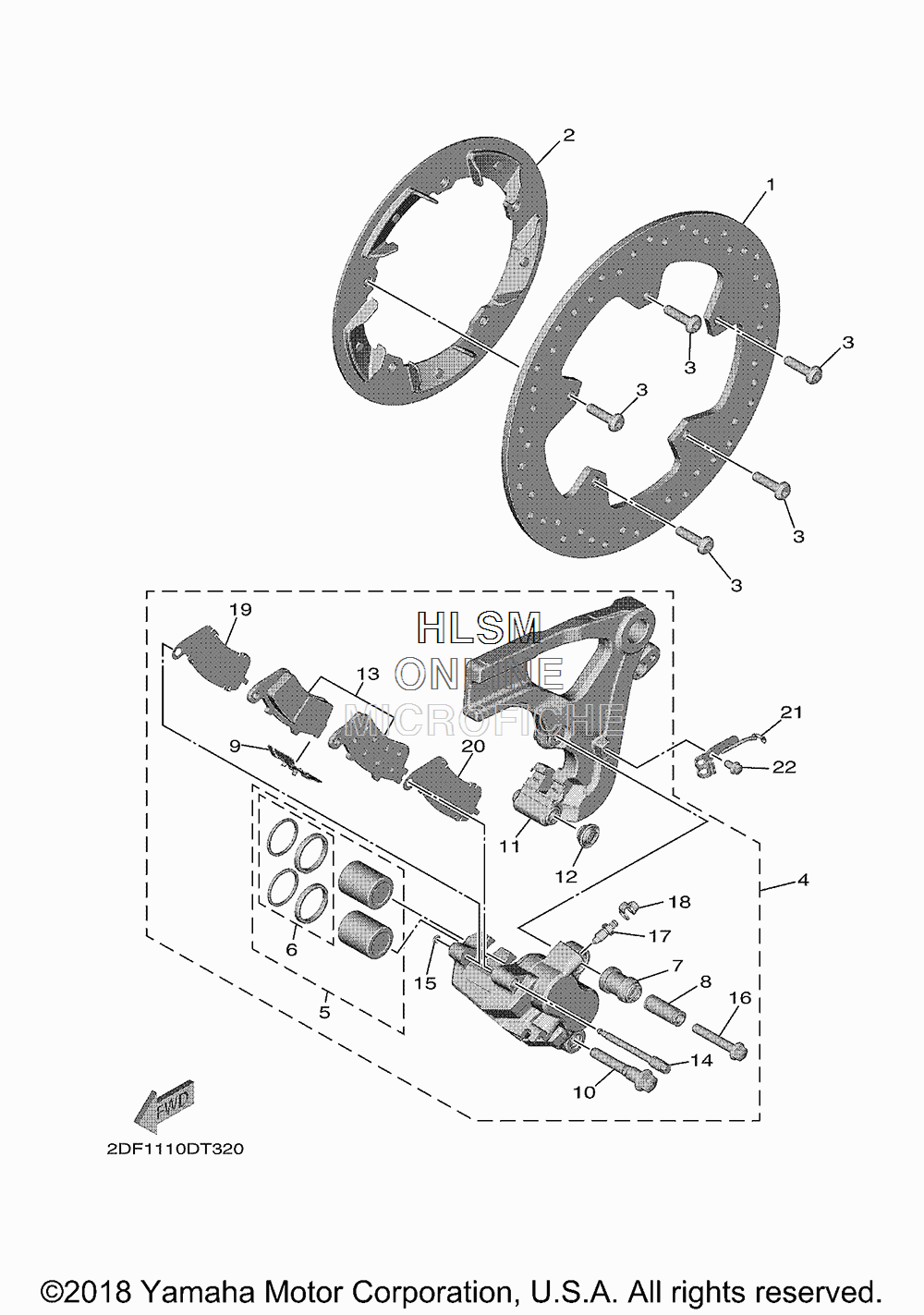

BRAKE - REAR CALIPER для Yamaha STAR VENTURE - 2018 года выпуска`
-
№АртикулНазвание
-
12DF-2582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
22DF-2581A-00-00 PLATE, DISCPLATE, DISC
-
390110-08113-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
42DF-2580V-00-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
52DF-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
63FV-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
75SL-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
85SL-25838-00-00 ...SLEEVE, CALIPER...SLEEVE, CALIPER
-
92DF-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
102DF-25914-50-00 ...PIN, SLIDE...PIN, SLIDE
-
112DF-25921-50-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
123JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
132DF-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
142DF-25924-50-00 ...PIN, PAD...PIN, PAD
-
153P6-25925-00-00 ...STOPPER...STOPPER
-
165SL-25926-00-00 ...BOLT...BOLT
-
178CR-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
181UY-25825-51-00 ...CAP...CAP
-
192DF-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
202DF-25828-10-00 ...SHIM, CALIPER...SHIM, CALIPER
-
212DF-25522-00-00 HOLDERHOLDER
-
2290105-06052-00 BOLT, FLANGEBOLT, FLANGE
