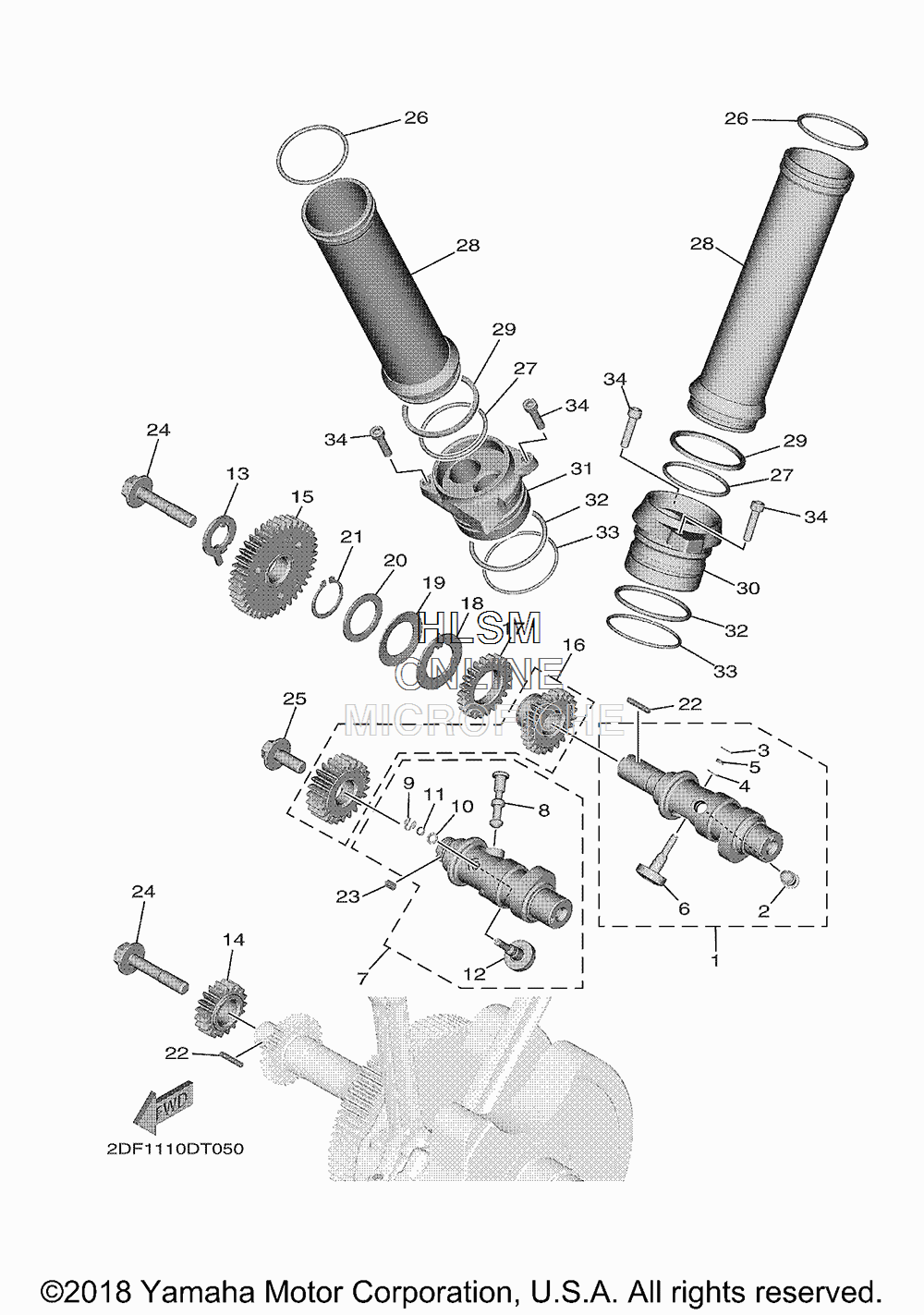

CAMSHAFT W/ CHAIN для Yamaha STAR VENTURE - 2018 года выпуска`
-
№АртикулНазвание
-
12DF-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
21D7-12276-03-00 ...PIN, DECOMPRESSION...PIN, DECOMPRESSION
-
393430-04055-00 ...CIRCLIP...CIRCLIP
-
490201-05M04-00 ...WASHER, PLATE...WASHER, PLATE
-
51D7-12287-00-00 ...SPRING, DECOMPRESSION...SPRING, DECOMPRESSION
-
61D7-12280-00-00 ...DECOMPRESSION ASSY...DECOMPRESSION ASSY
-
72DF-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
81D7-12276-03-00 ...PIN, DECOMPRESSION...PIN, DECOMPRESSION
-
993430-04055-00 ...CIRCLIP...CIRCLIP
-
1090201-05M04-00 ...WASHER, PLATE...WASHER, PLATE
-
111D7-12287-00-00 ...SPRING, DECOMPRESSION...SPRING, DECOMPRESSION
-
121D7-12280-00-00 ...DECOMPRESSION ASSY...DECOMPRESSION ASSY
-
132DF-11951-00-00 PLATEPLATE
-
141D7-11534-00-00 GEAR, BREAKER DRIVEGEAR, BREAKER DRIVE
-
152DF-Y115B-00-00 DRIVEN GEAR COMP.DRIVEN GEAR COMP.
-
161D7-W115A-00-00 DRIVE GEAR SETDRIVE GEAR SET
-
174WM-11544-01-00 GEAR 2GEAR 2
-
181D7-11557-00-00 WASHER 1WASHER 1
-
194WM-12216-01-00 SPRINGSPRING
-
2090201-283U6-00 WASHER, PLATEWASHER, PLATE
-
2199009-28400-00 CIRCLIPCIRCLIP
-
2290282-03002-00 KEY, STRAIGHTKEY, STRAIGHT
-
2390282-04001-00 KEY, STRAIGHTKEY, STRAIGHT
-
2490105-10159-00 BOLT, FLANGEBOLT, FLANGE
-
2590105-10445-00 BOLT, FLANGEBOLT, FLANGE
-
2693210-49006-00 O-RINGO-RING
-
2793210-472A9-00 O-RINGO-RING
-
282DF-12155-00-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
295PX-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
301D7-12147-00-00 HOUSINGHOUSING
-
311D7-12148-00-00 HOUSINGHOUSING
-
3293210-54175-00 O-RINGO-RING
-
3393210-54452-00 O-RINGO-RING
-
3490110-06409-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
