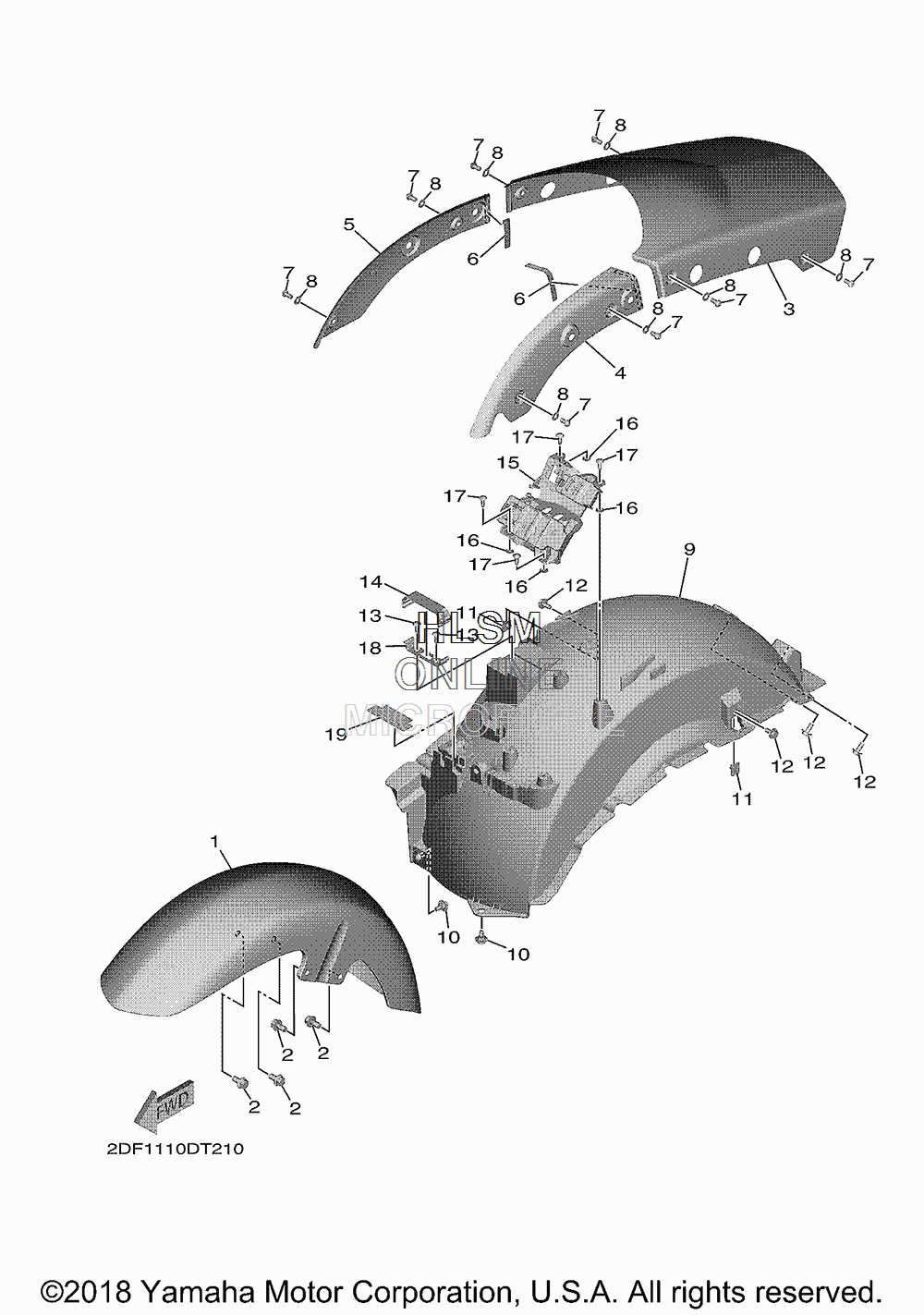

FENDER - FRONT / REAR для Yamaha STAR VENTURE - 2018 года выпуска`
-
№АртикулНазвание
-
12DF-YK215-00-P1 FRONT FENDER COMP. (DRMD - DULL RED)FRONT FENDER COMP. (DRMD - DULL RED)
-
12DF-YK215-00-P0 FRONT FENDER COMP. (DNMG - DARK GRAY)FRONT FENDER COMP. (DNMG - DARK GRAY)
-
295D32-08016-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
32DF-YK216-00-P0 REAR FENDER COMP. (DNMG - DARK GRAY)REAR FENDER COMP. (DNMG - DARK GRAY)
-
32DF-YK216-00-P1 REAR FENDER COMP. (DRMD - DULL RED)REAR FENDER COMP. (DRMD - DULL RED)
-
42DF-YK263-00-P0 CLEAR STAY, FENDER 1 (DNMG - DARK GRAY)CLEAR STAY, FENDER 1 (DNMG - DARK GRAY)
-
42DF-YK263-00-P1 CLEAR STAY, FENDER 1 (DRMD - DULL RED)CLEAR STAY, FENDER 1 (DRMD - DULL RED)
-
52DF-YK264-00-P1 CLEAR STAY, FENDER 2 (DRMD - DULL RED)CLEAR STAY, FENDER 2 (DRMD - DULL RED)
-
52DF-YK264-00-P0 CLEAR STAY, FENDER 2 (DNMG - DARK GRAY)CLEAR STAY, FENDER 2 (DNMG - DARK GRAY)
-
613S-28237-00-00 DAMPER 3DAMPER 3
-
792014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
892902-06200-00 .WASHER.WASHER
-
92DF-21629-00-00 GUARD, MUDGUARD, MUD
-
1090109-06322-00 BOLTBOLT
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290119-06242-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
14122-82131-00-00 BAND, BATTERYBAND, BATTERY
-
152DF-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
162DF-21616-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
1790269-05055-00 RIVETRIVET
-
182DF-2161A-00-00 BRACKET 3BRACKET 3
-
192DF-21669-00-00 SEALSEAL
