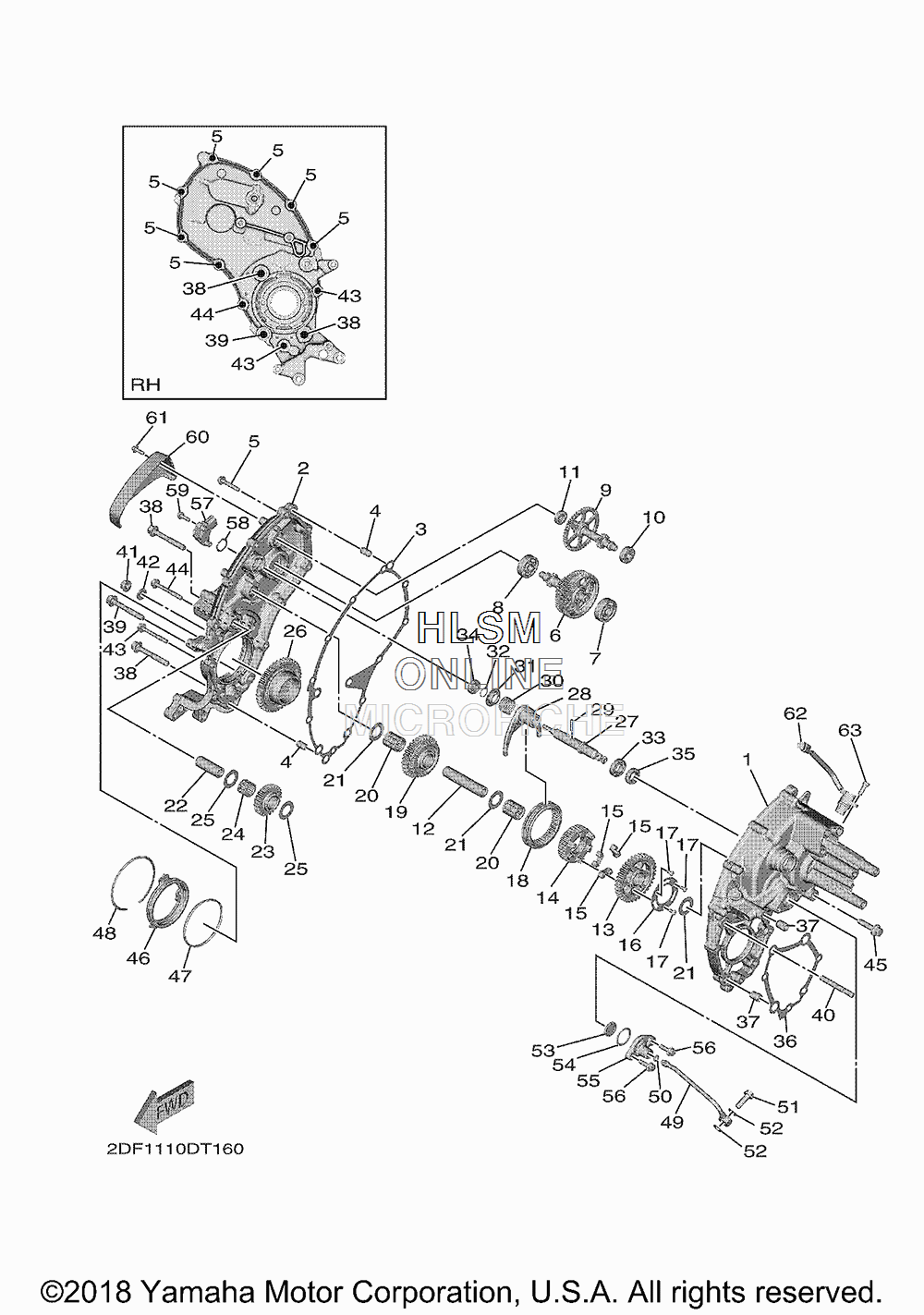

MIDDLE DRIVE - TRANSFER CASE для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
22DF-15417-00-00 COVER, CAPCOVER, CAP
-
32DF-15457-00-00 GASKETGASKET
-
499530-10116-00 PIN, DOWELPIN, DOWEL
-
590110-06403-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
62DF-176B0-00-00 REDUCTION GEAR ASSY 1REDUCTION GEAR ASSY 1
-
793306-30101-00 BEARINGBEARING
-
893306-30002-00 BEARINGBEARING
-
92DF-176C0-00-00 REDUCTION GEAR ASSY. 2REDUCTION GEAR ASSY. 2
-
1093306-00013-00 BEARINGBEARING
-
1193306-90004-00 BEARINGBEARING
-
122DF-1761A-00-00 SHAFT 1SHAFT 1
-
132DF-17841-00-00 GEAR, DRIVENGEAR, DRIVEN
-
142DF-17622-00-00 BOSSBOSS
-
152DF-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
-
162DF-16118-00-00 PLATE, SIDE 1PLATE, SIDE 1
-
1790149-04003-00 SCREWSCREW
-
182DF-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
192DF-17143-00-00 GEAR, REVERSE PINION 1GEAR, REVERSE PINION 1
-
2093310-41783-00 BEARINGBEARING
-
2190201-17257-00 WASHER, PLATEWASHER, PLATE
-
222DF-1761E-00-00 SHAFT 2SHAFT 2
-
232DF-1760E-00-00 GEAR 2GEAR 2
-
2493310-41760-00 BEARINGBEARING
-
2590201-17257-00 WASHER, PLATEWASHER, PLATE
-
262DF-17243-00-00 GEAR, REVERSE WHEEL 1GEAR, REVERSE WHEEL 1
-
272DF-18155-00-00 SHAFT, SHIFT 2SHAFT, SHIFT 2
-
282DF-18311-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
2993605-20004-00 PIN, DOWELPIN, DOWEL
-
3090501-121A3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
312DF-17644-00-00 SEAT, SPRINGSEAT, SPRING
-
3293440-16148-00 CIRCLIPCIRCLIP
-
3393306-90201-00 BEARINGBEARING
-
3493306-90001-00 BEARINGBEARING
-
3593102-15008-00 OIL SEALOIL SEAL
-
362DF-17929-00-00 GASKET 1GASKET 1
-
3791812-16001-00 PIN, DOWELPIN, DOWEL
-
382DF-15481-00-00 BOLT 1BOLT 1
-
392DF-15482-00-00 BOLT 2BOLT 2
-
4090116-08089-00 BOLT, STUDBOLT, STUD
-
4190179-08045-00 NUTNUT
-
4290201-08366-00 WASHER, PLATEWASHER, PLATE
-
4395812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
4490105-06220-00 BOLT, FLANGEBOLT, FLANGE
-
4590119-08171-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
462DF-15359-00-00 HOUSING, OIL SEALHOUSING, OIL SEAL
-
4793210-74001-00 O-RINGO-RING
-
4893450-85173-00 CIRCLIPCIRCLIP
-
492DF-13191-00-00 PIPE, DELIVERY 4PIPE, DELIVERY 4
-
5093210-06010-00 O-RINGO-RING
-
5190401-08015-00 BOLT, UNIONBOLT, UNION
-
5290430-08119-00 GASKETGASKET
-
532DF-13411-00-00 STRAINER, OILSTRAINER, OIL
-
5493210-26001-00 O-RINGO-RING
-
552DF-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
5695817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
572DF-85899-00-00 SENSOR, GEAR POSITIONSENSOR, GEAR POSITION
-
5893210-17008-00 O-RINGO-RING
-
5990110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
602DF-17076-00-00 COVERCOVER
-
6190110-05073-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
622DF-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
6390110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
