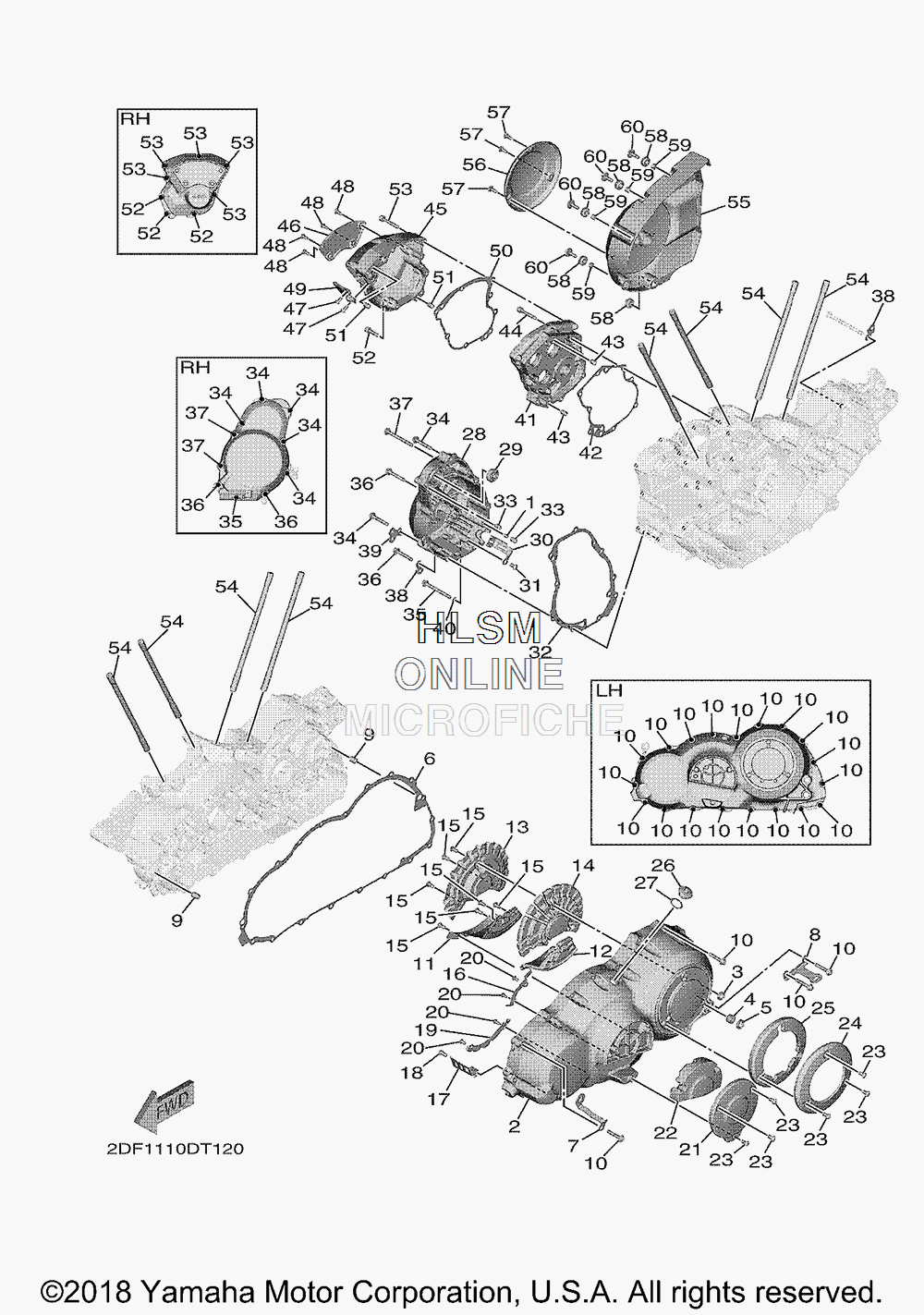

CRANKCASE COVER для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-15148-00-00 NOZZLE 2NOZZLE 2
-
22DF-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
393102-10008-00 OIL SEALOIL SEAL
-
493317-11295-00 BEARINGBEARING
-
593102-12224-00 OIL SEALOIL SEAL
-
62DF-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
72DF-1546D-00-00 HOLDER, 2HOLDER, 2
-
82DF-15759-00-00 CLIP, GUIDECLIP, GUIDE
-
999530-10114-00 PIN, DOWELPIN, DOWEL
-
1090110-06403-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
112DF-15113-00-00 PLATEPLATE
-
122DF-1542B-00-00 DAMPER 2DAMPER 2
-
132DF-15589-00-00 PLATEPLATE
-
142DF-1542A-00-00 DAMPER 1DAMPER 1
-
1590149-06158-00 SCREWSCREW
-
162DF-15142-00-00 GUIDE 1GUIDE 1
-
172DF-15484-00-00 CLAMP 2CLAMP 2
-
1890149-06069-00 SCREWSCREW
-
192DF-15143-00-00 GUIDEGUIDE
-
2090149-05029-00 SCREWSCREW
-
212DF-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
222DF-15316-00-00 DAMPER 1DAMPER 1
-
2390149-06191-00 SCREWSCREW
-
242DF-15415-00-00 COVER, 1COVER, 1
-
252DF-1542C-00-00 DAMPER 3DAMPER 3
-
265PX-15189-00-00 PLUGPLUG
-
2793210-20003-00 O-RINGO-RING
-
282DF-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
2993306-00006-00 BEARINGBEARING
-
302DF-15377-00-00 GUIDE, INLETGUIDE, INLET
-
3190149-06158-00 SCREWSCREW
-
322DF-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3399530-08012-00 PIN, DOWELPIN, DOWEL
-
3490110-06418-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590110-06420-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3690110-06417-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790110-06419-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
382DF-15144-00-00 PLATE, LOCKPLATE, LOCK
-
392DF-1546C-00-00 HOLDERHOLDER
-
4090430-06014-00 GASKETGASKET
-
412DF-15430-00-00 CRANKCASE COVER ASSY 3CRANKCASE COVER ASSY 3
-
422DF-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4399530-08012-00 PIN, DOWELPIN, DOWEL
-
4490110-06423-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
452DF-15429-00-00 COVER, SHIFTERCOVER, SHIFTER
-
462DF-15427-00-00 COVER, CAP 2COVER, CAP 2
-
4790111-05053-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4890111-05052-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
492DF-15499-00-00 PROTECTOR, COVERPROTECTOR, COVER
-
502DF-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
5199530-08012-00 PIN, DOWELPIN, DOWEL
-
5290110-06413-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5390110-06423-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5490116-12020-00 BOLT, STUDBOLT, STUD
-
552DF-15426-01-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
562DF-15779-00-00 COVERCOVER
-
5790169-05003-00 TAPPING SCREWTAPPING SCREW
-
5890480-13018-00 GROMMETGROMMET
-
5990387-0611W-00 COLLARCOLLAR
-
6090111-06130-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
