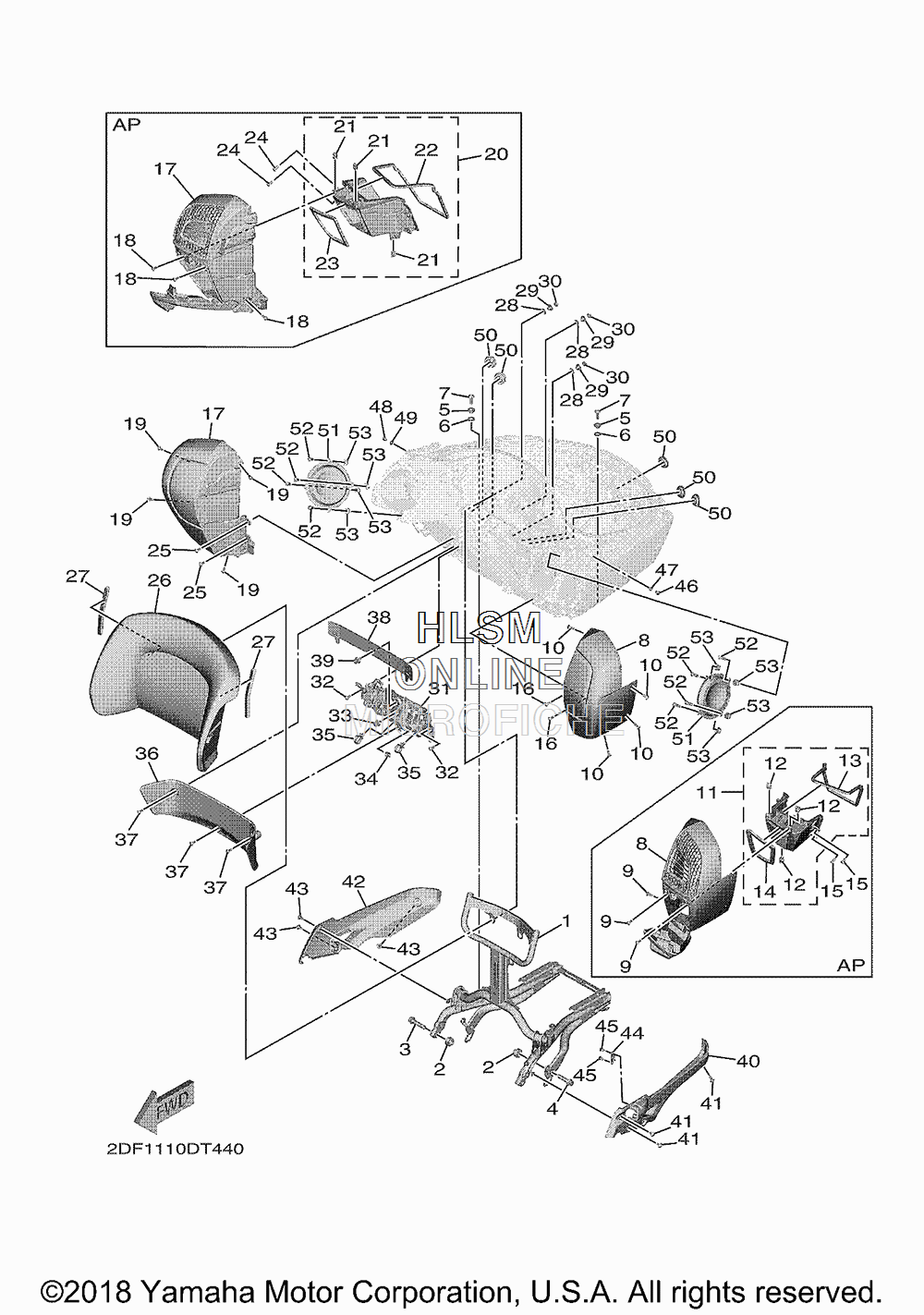

TRAVEL BAG - FRAME для Yamaha STAR VENTURE - 2018 года выпуска
-
№АртикулНазвание
-
12DF-28475-00-00 FRAME, TRAVEL TRUNKFRAME, TRAVEL TRUNK
-
22DF-2510C-00-00 COLLAR ASSY.COLLAR ASSY.
-
390105-10315-00 BOLT, FLANGEBOLT, FLANGE
-
490105-10474-00 BOLT, FLANGEBOLT, FLANGE
-
590387-06328-00 COLLARCOLLAR
-
690202-10004-00 WASHER, PLATEWASHER, PLATE
-
790111-06156-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
82DF-2840V-00-00 SIDE BOX ASSY., 1 (OPT)SIDE BOX ASSY., 1 (OPT)
-
82DF-2842M-00-00 COVER 1COVER 1
-
990111-05009-00 BOLT, HEX. SOCKET BUTTON (OPT)BOLT, HEX. SOCKET BUTTON (OPT)
-
1090111-05009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
112DF-2846C-00-00 BOX, SIDE 1 (OPT)BOX, SIDE 1 (OPT)
-
1290183-05073-00 ...NUT, SPRING (OPT)...NUT, SPRING (OPT)
-
132DF-28483-00-00 ...PLATE, RUBBER 1 (OPT)...PLATE, RUBBER 1 (OPT)
-
142DF-2848F-00-00 ...SEAL 6 (OPT)...SEAL 6 (OPT)
-
1590154-05004-00 SCREW, BINDING (OPT)SCREW, BINDING (OPT)
-
1690154-05004-00 SCREW, BINDINGSCREW, BINDING
-
172DF-2840W-00-00 SIDE BOX ASSY., 2 (OPT)SIDE BOX ASSY., 2 (OPT)
-
172DF-2842N-00-00 COVER 2COVER 2
-
1890111-05009-00 BOLT, HEX. SOCKET BUTTON (OPT)BOLT, HEX. SOCKET BUTTON (OPT)
-
1990111-05009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
202DF-2846D-00-00 BOX, SIDE 2 (OPT)BOX, SIDE 2 (OPT)
-
2190183-05073-00 ...NUT, SPRING (OPT)...NUT, SPRING (OPT)
-
222DF-28483-00-00 ...PLATE, RUBBER 1 (OPT)...PLATE, RUBBER 1 (OPT)
-
232DF-2849F-00-00 ...SEAL 7 (OPT)...SEAL 7 (OPT)
-
2490154-05004-00 SCREW, BINDING (OPT)SCREW, BINDING (OPT)
-
2590154-05004-00 SCREW, BINDINGSCREW, BINDING
-
262DF-F840F-10-00 BACK REST ASSYBACK REST ASSY
-
274B5-2174Y-00-00 DAMPERDAMPER
-
2890202-10165-00 WASHER, PLATEWASHER, PLATE
-
2990387-06237-00 COLLARCOLLAR
-
3095702-06500-00 NUT, FLANGENUT, FLANGE
-
312DF-2845P-00-00 COVER, 8COVER, 8
-
3290154-05004-00 SCREW, BINDINGSCREW, BINDING
-
3390269-07076-00 RIVETRIVET
-
3490183-05073-00 NUT, SPRINGNUT, SPRING
-
3590464-21003-00 CLAMPCLAMP
-
362DF-2841W-00-00 COVER, 9COVER, 9
-
3790154-05004-00 SCREW, BINDINGSCREW, BINDING
-
382DF-28499-00-00 PLATE, RUBBER 4PLATE, RUBBER 4
-
3990269-07076-00 RIVETRIVET
-
402DF-2842A-00-00 COVER 5COVER 5
-
4190111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
422DF-2843C-00-00 COVER 6COVER 6
-
4390111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
442DF-2843L-00-00 PLATEPLATE
-
4590160-05018-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
4690101-06529-00 BOLTBOLT
-
4790201-06107-00 WASHER, PLATEWASHER, PLATE
-
4890101-06529-00 BOLTBOLT
-
4990201-06107-00 WASHER, PLATEWASHER, PLATE
-
502DF-2847F-00-00 SEAL 5SEAL 5
-
512DF-2841Y-00-00 COVER, 11COVER, 11
-
5292017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5390179-06520-00 NUTNUT
