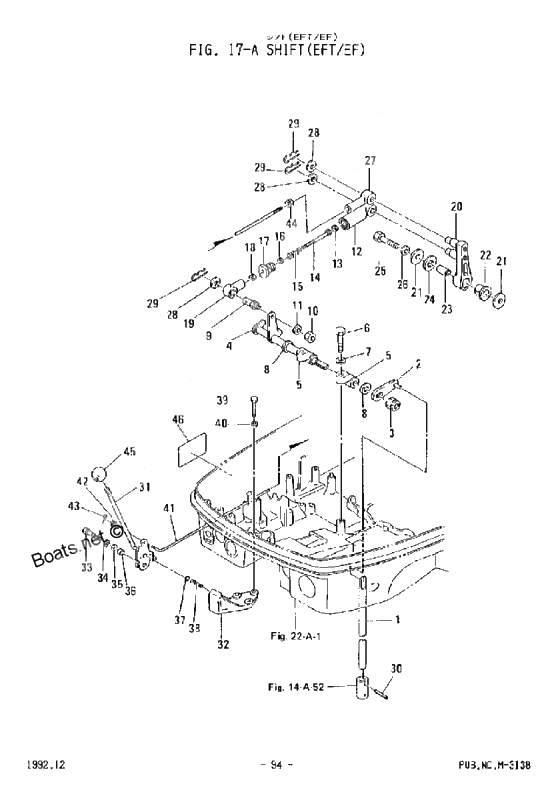

Shift (eft-ef) для Tohatsu M90A - 2002 года выпуска`
-
№АртикулНазвание
-
00940-13040-0 Washer, consentWasher, consent
-
003B7-83715-0 Cable JointCable Joint
-
00332-66308-0 Washer, fuel tankWasher, fuel tank
-
00951503-0212 Split PinSplit Pin
-
003B7-63730-0 WasherWasher
-
00353-66124-0 Collar, stopper plateCollar, stopper plate
-
00353-66215-1 New partNew part
-
003B7-66153-0 Spring, shift assistSpring, shift assist
-
00353-83719-0 WasherWasher
-
00332-61315-0 WasherWasher
-
003B2-83865-0 Nut(No,10-32VNF)Nut(No,10-32VNF)
-
003B7-63713-0 BushingBushing
-
009650-2-1605 Stopper, shift leverStopper, shift lever
-
00353-66110-0 Shift Rod LeverShift Rod Lever
-
00940103-0500 WasherWasher
-
00951603-0800 R-PinR-Pin
-
00353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
00353-72013-0 Label clutchLabel clutch
-
003B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
00332-66112-0 Spring stopper ballSpring stopper ball
-
00930403-1000 Nylon NutNylon Nut
-
003B7-66152-0 Plug, shift assistPlug, shift assist
-
00951403-0316 Spring WasherSpring Washer
-
00930103-0600 NutNut
-
003B7-63731-0 WasherWasher
-
00940-13060-0 WasherWasher
-
003B7-66224-0 Shift lever shaft(for f type)Shift lever shaft(for f type)
-
00930103-0500 NutNut
-
00353-66115-1 Holder shift lever stopperHolder shift lever stopper
-
00941303-0600 New partNew part
-
00916103-0835 BoltBolt
-
00353-66145-0 Holder shift lever shaftHolder shift lever shaft
-
003B7-66134-0 Rod, shift lever stopperRod, shift lever stopper
-
00346-05234-0 New partNew part
-
00910114-0825 BoltBolt
-
003B7-66151-0 Case, shift assistCase, shift assist
-
00941303-0800 Spring WasherSpring Washer
-
00910114-0625 BoltBolt
-
00940-13050-0 WasherWasher
-
003B7-66122-0 Shift ArmShift Arm
-
00940-13080-0 WasherWasher
