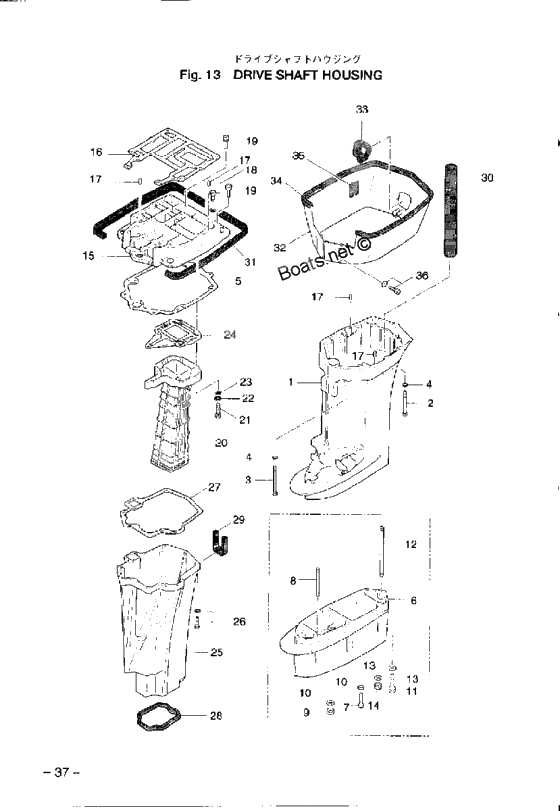

Drive shaft housing для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-61012-0 New partNew part
-
00910114-0635 New partNew part
-
003B7-61018-0 BoltBolt
-
003B7-61030-3 Drive shaft housing l
BLUEDrive shaft housing l
BLUE -
003B7-61112-0 Stud Bolt
FOR TRANSAM XLStud Bolt
FOR TRANSAM XL -
00910114-0830 BoltBolt
-
003B7-61110-0 Extension housing xl
FOR TRANSAM XL BLUEExtension housing xl
FOR TRANSAM XL BLUE -
00940-13060-0 WasherWasher
-
003B7S61030-3 Drive shaft housing l
GRAYDrive shaft housing l
GRAY -
003B7-61114-0 Nut
FOR TRANSAM XLNut
FOR TRANSAM XL -
003B7-61181-0 New partNew part
-
003B7S61110-0 Extension housing ul
FOR TRANSAM XL GRAYExtension housing ul
FOR TRANSAM XL GRAY -
003B7-67179-0 Drain Plug, Engine BaseDrain Plug, Engine Base
-
003B7-61017-2 Bolt, 8-105Bolt, 8-105
-
003B7-01301-0 Engine base
BLUEEngine base
BLUE -
003B7-61182-0 Grommet, exhaust housingGrommet, exhaust housing
-
00353-61113-0 Bolt, handle b
FOR TRANSAM XLBolt, handle b
FOR TRANSAM XL -
003B7-02311-0 Exhaust PipeExhaust Pipe
-
003B7-61017-0 Bolt, 80-90Bolt, 80-90
-
003B7S01301-0 Engine base
GRAYEngine base
GRAY -
003B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
00353-61113-1 Bolt, gear case
FOR TRANSAM XLBolt, gear case
FOR TRANSAM XL -
00941303-0600 New partNew part
-
003B7-61017-1 BoltBolt
-
003B7-01303-0 New partNew part
-
003B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
003B7-61030-0 Drive shaft housingDrive shaft housing
-
003B7-60001-0 Bolt, 10-40
FOR TRANSAM XLBolt, 10-40
FOR TRANSAM XL -
003B7-02312-0 New partNew part
-
00940-13080-0 WasherWasher
-
00345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
003B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
003B7-61030-1 Drive shaft housing lDrive shaft housing l
-
003B7-60001-1 New part
FOR TRANSAM XLNew part
FOR TRANSAM XL -
003B7-61180-0 Exhaust HousingExhaust Housing
-
13B7S61030-3 Drive shaft housing l
90A # 17135-Drive shaft housing l
90A # 17135- -
23B7-61017-2 Bolt, 8-105Bolt, 8-105
-
33B7-61018-1 Bolt, 8-115Bolt, 8-115
-
4940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
53B7-61012-0 New partNew part
-
63B7S61110-0 Extension housing ul
Transom XLExtension housing ul
Transom XL -
9930103-0800 Nut
Transom XLNut
Transom XL -
113B7-60001-2 Bolt, 10-40
Transom XLBolt, 10-40
Transom XL -
123B7-61112-0 Stud Bolt
Transom XLStud Bolt
Transom XL -
143B7-61114-0 Nut
Transom XLNut
Transom XL -
153B7-01301-0 Engine baseEngine base
-
163B7-01303-0 New partNew part
-
17345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
193B7-67179-0 Drain Plug, Engine BaseDrain Plug, Engine Base
-
203B7-02311-0 Exhaust PipeExhaust Pipe
-
21910114-0635 New partNew part
-
22941303-0600 New partNew part
-
23940103-0600 WasherWasher
-
243B7-02312-0 New partNew part
-
253D8-61180-0 Exhaust Housing
80A #11211-, 90A #22140-Exhaust Housing
80A #11211-, 90A #22140- -
26910103-5830 BoltBolt
-
273B7-61181-0 New partNew part
-
283B7-61182-0 Grommet, exhaust housingGrommet, exhaust housing
-
293B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
303B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
313B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
323C7S61210-1 Splash pan
90A # 17135-Splash pan
90A # 17135- -
333C7-61212-0 Grommet,splash pan
90A # 17135-Grommet,splash pan
90A # 17135- -
343E0-61213-0 Seal Rubber Splash Pan
90A # 17135-Seal Rubber Splash Pan
90A # 17135- -
353C7-61216-0 Set rubber,splash pan
90A # 17135-Set rubber,splash pan
90A # 17135-
