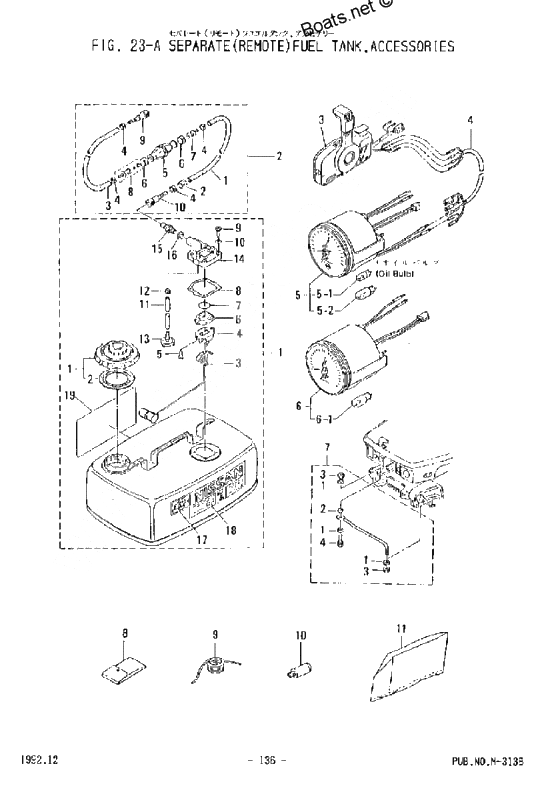

Fuel tank (remote) для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-72201-0 КанатКанат
-
003B8-70140-1 Fuel tank ass'y
JAPANESE DOMESTIC SPEC.Fuel tank ass'y
JAPANESE DOMESTIC SPEC. -
003B1-84330-1 Single remote control box ass'y (rc4a)
BLUESingle remote control box ass'y (rc4a)
BLUE -
003B7-60007-0 Flushing PlugFlushing Plug
-
003B8-70142-1 Fuel tank ass'y
SPEC. OTHER THAN FOR JAPANFuel tank ass'y
SPEC. OTHER THAN FOR JAPAN -
003B1-84330-2 Single remote control box ass'y (rc8a)
GRAYSingle remote control box ass'y (rc8a)
GRAY -
003B7-70200-1 Primer bulb assyPrimer bulb assy
-
003A3-72537-0 Lead wire meterLead wire meter
-
003B7-72100-0 TOOL ASS'Y
(FOR EPTO/EFT/EF TYPE)TOOL ASS'Y
(FOR EPTO/EFT/EF TYPE) -
003B7-72110-0 TOOL ASS'Y
(FOR EPT TYPE)TOOL ASS'Y
(FOR EPT TYPE) -
003B7-84905-0 ドラックリンク D アッセンブリドラックリンク D アッセンブリ
-
3B7-84905-1 ドラックリンク D アッセンブリドラックリンク D アッセンブリ
-
01353-84916-0 WasherWasher
-
01334-70020-0 Fuel tank cap ass'yFuel tank cap ass'y
-
0198AB-7-1000 Rubber pipeRubber pipe
-
013B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
13C7-70177-0 New part
UniqueNew part
Unique -
1-13C7-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43C7-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
023B7-84914-0 Spacer Drag LinkSpacer Drag Link
-
02334-70021-0 Gasket fuel tank capGasket fuel tank cap
-
023B2-70281-0 New partNew part
-
023B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
23B7-70200-3 New partNew part
-
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-93B2-70250-1 New partNew part
-
03353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
03334-70120-0 Датчик топливаДатчик топлива
-
0398AB-7-1300 Fuel pipe bFuel pipe b
-
04332-70201-0 ClampClamp
-
043B7-84917-0 Bolt 3/8-55Bolt 3/8-55
-
04334-70121-0 Bracket fuel gaugeBracket fuel gauge
-
06332-70217-0 Clamp, primer bulbClamp, primer bulb
-
07334-70123-1 O-RingO-Ring
-
07345-70212-0 Connector a primer bulbConnector a primer bulb
-
08345-70213-0 Connector b primer bulbConnector b primer bulb
-
09922-23052-0 ScrewScrew
-
09345-70250-0 Fuel connector aFuel connector a
-
093B2-70250-1 New partNew part
-
103B2-70281-0 New partNew part
-
10334-70128-0 Gasket 5.1-12-0.8Gasket 5.1-12-0.8
-
1198AB-7-0168 Fuel suction pipeFuel suction pipe
-
12345-70114-0 ClipClip
-
143B7-70127-0 Housing, fuel gauge assyHousing, fuel gauge assy
-
16336-70112-0 Gasket 10.2-16-0.5Gasket 10.2-16-0.5
-
18360-70443-0 Caution label, b2
SPEC. OTHER THAN FOR JAPANCaution label, b2
SPEC. OTHER THAN FOR JAPAN -
19360-70341-0 Caution label, a
SPEC. OTHER THAN FOR JAPANCaution label, a
SPEC. OTHER THAN FOR JAPAN
