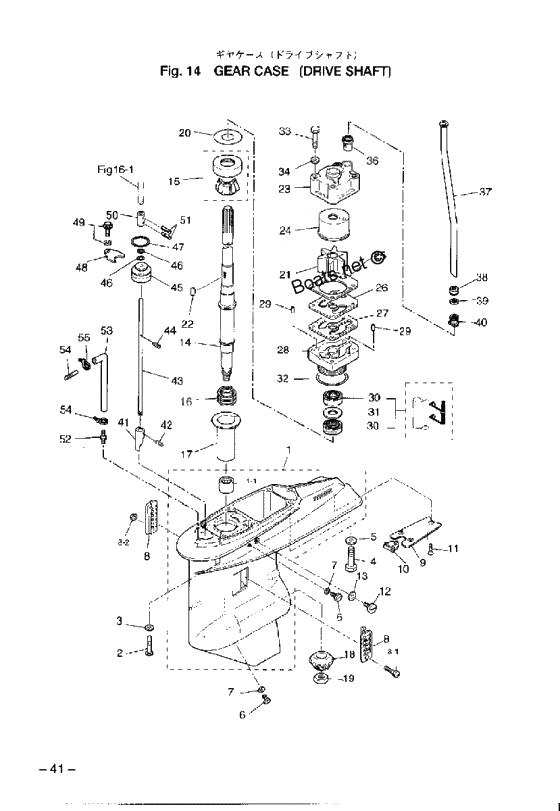

Gear case (drive shaft) для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
00332-60005-0 Oil plugOil plug
-
003B7-65015-0 O-RingO-Ring
-
003B7-64303-0 Drive Shaft UL
FOR TRANSAM XLDrive Shaft UL
FOR TRANSAM XL -
003B7-66013-1 Cam Rod L
FOR TRANSAM LCam Rod L
FOR TRANSAM L -
003B7-65025-0 Guide plate, water pumpGuide plate, water pump
-
00921-53044-0 ScrewScrew
-
00346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
003B7-65021-0 Inpeller, water pumpInpeller, water pump
-
003B7-66023-0 O-RingO-Ring
-
00332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
00941303-0800 Spring WasherSpring Washer
-
003B7-60213-0 Taper roller bearing, 32305Taper roller bearing, 32305
-
003B7-66014-0 Cam rod xl
FOR TRANSAM XLCam rod xl
FOR TRANSAM XL -
00353-61113-0 Bolt, handle bBolt, handle b
-
003B7-65239-0 Guide plate, chrome plated water pump
FOR COLOMBIAGuide plate, chrome plated water pump
FOR COLOMBIA -
00921503-0445 Stud BoltStud Bolt
-
003B7-66011-0 Clutch CamClutch Cam
-
003B7-65022-0 Key, water pump impellerKey, water pump impeller
-
00353-66024-0 StopperStopper
-
003B7-60012-0 Plate, Gear CasePlate, Gear Case
-
00334-65014-0 Seal Rubber Lower, Water PipeSeal Rubber Lower, Water Pipe
-
00353-64327-0 Пружина валаПружина вала
-
003B7-66014-1 Cam Rod UL
FOR TRANSAM XLCam Rod UL
FOR TRANSAM XL -
00353-61113-1 Bolt, gear caseBolt, gear case
-
003B7-65029-0 Gasket, guide plateGasket, guide plate
-
00930403-0400 Nylon NutNylon Nut
-
003B7-66011-1 Clutch CamClutch Cam
-
003B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
00910121-0612 BoltBolt
-
003B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
003B7-65110-0 Water Pipe L
FOR TRANSAM LWater Pipe L
FOR TRANSAM L -
003B7-64328-0 Guide, drive shaftGuide, drive shaft
-
00951403-3510 New partNew part
-
00940-13080-0 WasherWasher
-
003B7-65017-0 Pump Case LowerPump Case Lower
-
003B7-60015-0 Water PlugWater Plug
-
3B7-60015-1 Water PlugWater Plug
-
00951403-0316 Spring WasherSpring Washer
-
003B7-65011-0 New partNew part
-
00941303-0600 New partNew part
-
003B7-60000-0 Gear case ass'yGear case ass'y
-
00362-60206-0 Water StrainerWater Strainer
-
003B7-65120-0 Water Pipe UL
FOR TRANSAM XLWater Pipe UL
FOR TRANSAM XL -
003B7-64020-0 New partNew part
-
003B7-60001-0 Bolt, 10-40Bolt, 10-40
-
00334-65012-0 СтопорСтопор
-
003B7-60016-0 O-RingO-Ring
-
00951403-3516 New partNew part
-
003B7-60000-1 Gear case ass'y
BLUEGear case ass'y
BLUE -
003B7-65238-0 Liner, chrome plated water pump case
FOR COLOMBIALiner, chrome plated water pump case
FOR COLOMBIA -
00353-66241-0 Joint Shift RodJoint Shift Rod
-
00345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
003B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
003B7-66031-0 Bushing, cam rodBushing, cam rod
-
003B7-60001-1 New partNew part
-
003B7-60223-0 Oil seal, 22-42-14Oil seal, 22-42-14
-
003B7-64302-0 Drive shaft l
FOR TRANSAM LDrive shaft l
FOR TRANSAM L -
003B7-66013-0 Cam Rod L
FOR TRANSAM LCam Rod L
FOR TRANSAM L -
003B7S60000-3 Gear case ass'y
GRAYGear case ass'y
GRAY -
003B7-65018-0 Прокладка насосаПрокладка насоса
-
00353-66241-1 New partNew part
-
00345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
00353-64012-0 ShimShim
-
00345-66021-0 O-RingO-Ring
-
013B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
013B7-60235-0 Water Strainer SetWater Strainer Set
-
013C7-60235-1 Water Strainer SetWater Strainer Set
-
13B7S60000-3 Gear case ass'y
for R & L RotationGear case ass'y
for R & L Rotation -
1-13B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
3940203-0800 WasherWasher
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
6332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83C7-60235-1 Water Strainer SetWater Strainer Set
-
8-1921503-0445 Stud BoltStud Bolt
-
8-2930403-0400 Nylon NutNylon Nut
-
93B7-60012-0 Plate, Gear CasePlate, Gear Case
-
103B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
123B7-60015-0 Water PlugWater Plug
-
3B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
143B7-64302-0 Drive shaft l
for Transom LDrive shaft l
for Transom L -
143B7-64303-0 Drive Shaft UL
for Transom XLDrive Shaft UL
for Transom XL -
153B7-60213-0 Taper roller bearing, 32305Taper roller bearing, 32305
-
16353-64327-0 Пружина валаПружина вала
-
173B7-64328-0 Guide, drive shaftGuide, drive shaft
-
183B7-64020-0 New partNew part
-
193B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
20353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
20353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
20353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
213B7-65021-1 Impeller (60/70b-c 90a)Impeller (60/70b-c 90a)
-
3B7-65021-2 Impeller (60/70b-c 90a)Impeller (60/70b-c 90a)
-
223B7-65022-0 Key, water pump impellerKey, water pump impeller
-
233B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
243B7-65011-0 New partNew part
-
253B7-65018-0 Прокладка насосаПрокладка насоса
-
263B7-65025-0 Guide plate, water pumpGuide plate, water pump
-
273B7-65029-0 Gasket, guide plateGasket, guide plate
-
283B7-65017-1 Pump Case LowerPump Case Lower
-
3B7-65017-2 Pump Case LowerPump Case Lower
-
29334-65012-0 СтопорСтопор
-
303C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
31346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
323B7-65015-0 O-RingO-Ring
-
34940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
363B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
373B7-65120-0 Water Pipe UL
for Transom XLWater Pipe UL
for Transom XL -
373B7-65110-0 Water Pipe L
for Transom LWater Pipe L
for Transom L -
38345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
39345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
40346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
413B7-66011-1 Clutch Cam
80A #11039-, 90A #18083-Clutch Cam
80A #11039-, 90A #18083- -
42951403-3516 New part
80A #11039-, 90A #18083-New part
80A #11039-, 90A #18083- -
433B7-66014-1 Cam Rod UL
80A #11039-, 90A #18083-, for Transom XLCam Rod UL
80A #11039-, 90A #18083-, for Transom XL -
433B7-66013-1 Cam Rod L
80A #11039-, 90A #18083-, for Transom LCam Rod L
80A #11039-, 90A #18083-, for Transom L -
44951403-3510 New partNew part
-
453B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
46345-66021-0 O-RingO-Ring
-
473B7-66023-0 O-RingO-Ring
-
48353-66024-0 StopperStopper
-
49910103-6612 BoltBolt
-
50353-66241-1 New part
80A #11039-, 90A #18083-New part
80A #11039-, 90A #18083- -
523C7-60017-0 Nipple 6-1/8Nipple 6-1/8
-
543C7-60018-0 ЗолотникЗолотник
-
55353-84398-0 Band Lead WireBand Lead Wire
