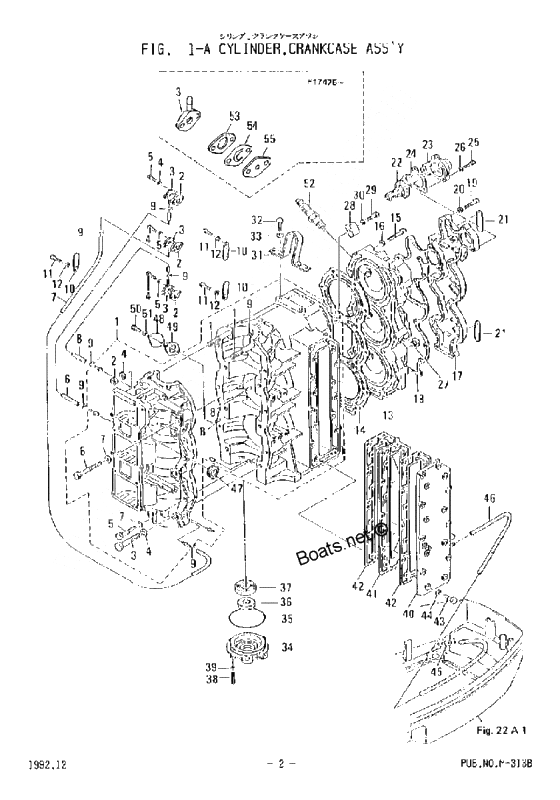

Cylinder, crankcase ass'y для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
00309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
003B7-09081-0 Blind plate
FOR EPT/EFT/EF TYPEBlind plate
FOR EPT/EFT/EF TYPE -
00353-01032-0 Прокладка крышки термостатаПрокладка крышки термостата
-
00353-01152-0 Cap,check valveCap,check valve
-
003B7-02302-0 Exhaust cover, innerExhaust cover, inner
-
003B7-01024-0 Gasket, cylinder head coverGasket, cylinder head cover
-
003C7-01151-0 Check valve bCheck valve b
-
003B7-01291-0 Head lower, crank caseHead lower, crank case
-
00910121-0612 BoltBolt
-
003B7-09082-0 Gasket blind plate
FOR EPT/EFT/EF TYPEGasket blind plate
FOR EPT/EFT/EF TYPE -
003B7-01046-0 PlugPlug
-
003B7-01100-0 Clyinder, crank case
BLUEClyinder, crank case
BLUE -
00940-13050-0 WasherWasher
-
003B7-02305-0 Gasket, exhaust coverGasket, exhaust cover
-
00910-1D063-0 BoltBolt
-
003C7-01154-0 Gasket b, check valveGasket b, check valve
-
00171-00053-0 O-RingO-Ring
-
00941303-0600 New partNew part
-
00910103-0616 Bolt
FOR EPT/EFT/EF TYPEBolt
FOR EPT/EFT/EF TYPE -
003B7-60218-0 AnodeAnode
-
009807-3-0280 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
00910-1D083-5 BoltBolt
-
00941-3U060-0 Spring WasherSpring Washer
-
003B7-00121-0 Oil seal, 35-58-9Oil seal, 35-58-9
-
003B7-01001-0 Головка цилиндров
BLUEГоловка цилиндров
BLUE -
009701-0-1009 New part
NGK B8HS-10New part
NGK B8HS-10 -
003B7-01513-0 BLUE
BLUEBLUE
BLUE -
009807-3-0400 Lubricative pipe cLubricative pipe c
-
00353-01138-0 Water NippleWater Nipple
-
003B7-01030-0 ThermostatThermostat
-
00910103-0620 BoltBolt
-
00916-1F086-0 BoltBolt
-
009701-0-1012 Spark plug (br7hs)
CHAMPION L-78 (GAP 1.0)Spark plug (br7hs)
CHAMPION L-78 (GAP 1.0) -
009807-3-0440 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
009810-5-0350 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
003B7-01031-0 Cap, thermostat
BLUECap, thermostat
BLUE -
003B7-02300-0 Exhaust cover, outer
BLUEExhaust cover, outer
BLUE -
003B7-01021-0 Cover, Cylinder Head
BLUECover, Cylinder Head
BLUE -
009701-0-1016 Spark plug ngk bp8hs-10
NGK BR8HS-10 FOR CANADASpark plug ngk bp8hs-10
NGK BR8HS-10 FOR CANADA -
9701-0-1009 Spark plug ngk bp8hs-10Spark plug ngk bp8hs-10
-
00910114-0820 BoltBolt
-
00338-01133-0 ClipClip
-
003B7-76093-0 Grommet, 25-5Grommet, 25-5
-
00353-01151-0 Check ValveCheck Valve
-
003C7-01153-0 Gasket a, check valveGasket a, check valve
-
00941322-0800 Spring WasherSpring Washer
-
01915324-1065 Stud BoltStud Bolt
-
02930121-1000 NutNut
-
03916-1E086-5 BoltBolt
-
043B7-01116-0 WasherWasher
-
05916124-0850 BoltBolt
-
06916-1E086-5 BoltBolt
-
07345-01015-0 WasherWasher
-
08345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
09345-00117-0 Dowel PinDowel Pin
