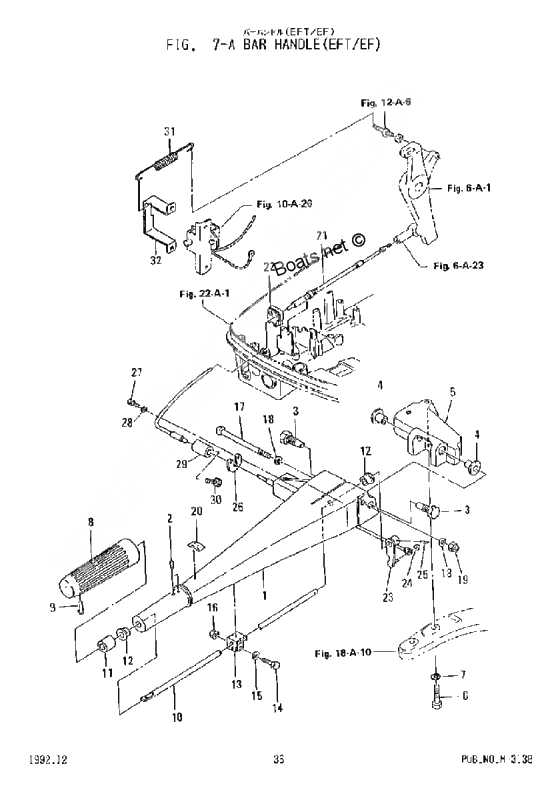

Bar handle (eft-ef) для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-63041-0 Throttle ShaftThrottle Shaft
-
003B7-66226-0 Grommet, Shift RodGrommet, Shift Rod
-
003B7-63051-0 Handle b
BLUEHandle b
BLUE -
003B7-63203-0 Bolt handleBolt handle
-
003B7-63054-0 Throttle cable collarThrottle cable collar
-
003B7-63011-0 Handle aHandle a
-
00345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
003B7-63064-0 Lever throttleLever throttle
-
003B7S63051-1 Handle b
GRAYHandle b
GRAY -
00940-13080-0 WasherWasher
-
003B7-63054-1 Coller, throttle cableColler, throttle cable
-
00350-63046-0 BushingBushing
-
00930403-0400 Nylon NutNylon Nut
-
00916114-0845 BoltBolt
-
00930403-0800 Nylon NutNylon Nut
-
00910-43061-0 BoltBolt
-
003B2-63035-0 Friction piece, gripFriction piece, grip
-
00951403-0316 Spring WasherSpring Washer
-
00941303-0800 Spring WasherSpring Washer
-
00334-72019-0 Label throttleLabel throttle
-
003B7-63736-0 Spring, throttle adjustSpring, throttle adjust
-
00353-63029-0 Screw handle grip stopScrew handle grip stop
-
00910103-0620 BoltBolt
-
003B7-63604-0 Holder, throttle cableHolder, throttle cable
-
00350-63012-0 GripGrip
-
003B7-63600-0 Throttle CableThrottle Cable
-
00353-63201-1 Bolt a handleBolt a handle
-
003B7-63737-0 Stay, throttle adjustStay, throttle adjust
-
00940-13060-0 WasherWasher
-
00910103-0510 BoltBolt
-
00920-83052-0 ScrewScrew
-
003B7-63600-1 Throttle CableThrottle Cable
-
00353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
00930103-0600 NutNut
-
00941303-0500 Spring WasherSpring Washer
-
013B7-63011-1 Handle a
BLUEHandle a
BLUE -
013B7S63011-2 Handle a
GRAYHandle a
GRAY
