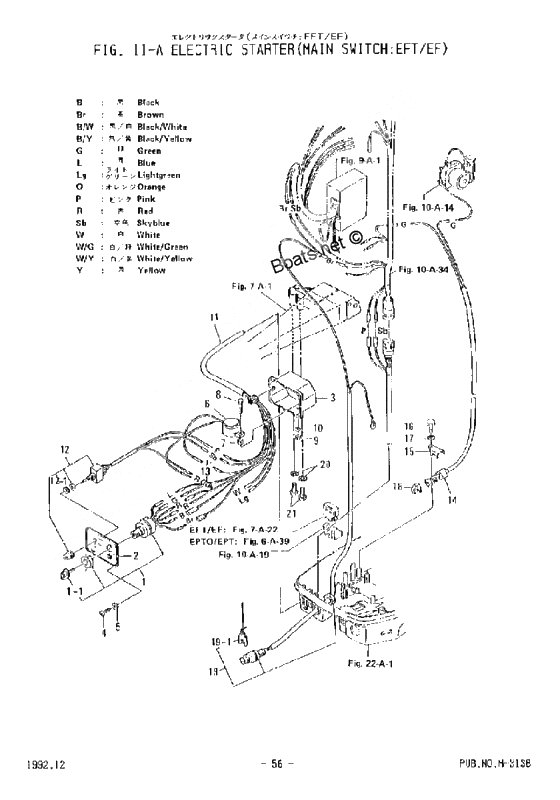

Electric starter (main switch, eft-ef) для Tohatsu M90A - 2002 года выпуска`
-
№АртикулНазвание
-
00930103-0500 NutNut
-
00910114-0625 BoltBolt
-
003B7-76032-0 Switch boxSwitch box
-
00353-76081-0 Bracket neutral switchBracket neutral switch
-
00385-76020-0 Main switch ass'y (w/key)Main switch ass'y (w/key)
-
00941303-0500 Spring WasherSpring Washer
-
003B7-76032-1 Switch box
BLUESwitch box
BLUE -
00910103-0616 BoltBolt
-
003B7-76119-0 Cord ass'y cCord ass'y c
-
00921503-5510 Stud BoltStud Bolt
-
00941303-0600 New partNew part
-
00353-72570-0 New part
FOR EFT TYPENew part
FOR EFT TYPE -
00940-13050-0 WasherWasher
-
00350-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
003B7-76171-0 Over-heat buzzer bOver-heat buzzer b
-
00353-06820-1 Lock safety switch (w/curl)Lock safety switch (w/curl)
-
003B7-76201-0 Panel, main switch(for ptt type)
FOR EFT TYPEPanel, main switch(for ptt type)
FOR EFT TYPE -
00353-72546-0 Assist Cord(Red)
FOR EFT TYPEAssist Cord(Red)
FOR EFT TYPE -
003B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
003B7-76200-0 Panel, main switch
FOR EF TYPEPanel, main switch
FOR EF TYPE -
003B7-76080-0 Neutral switchNeutral switch
-
01385-76021-1 Key, main switch
NO.301Key, main switch
NO.301 -
01385-76021-2 Key, main switch
NO.302Key, main switch
NO.302 -
01385-76021-3 Key, main switch
NO.303Key, main switch
NO.303 -
01152-01612-0 Packing
FOR EFT TYPEPacking
FOR EFT TYPE -
01346-06821-0 Lock, safety switch (w/rope)Lock, safety switch (w/rope)
