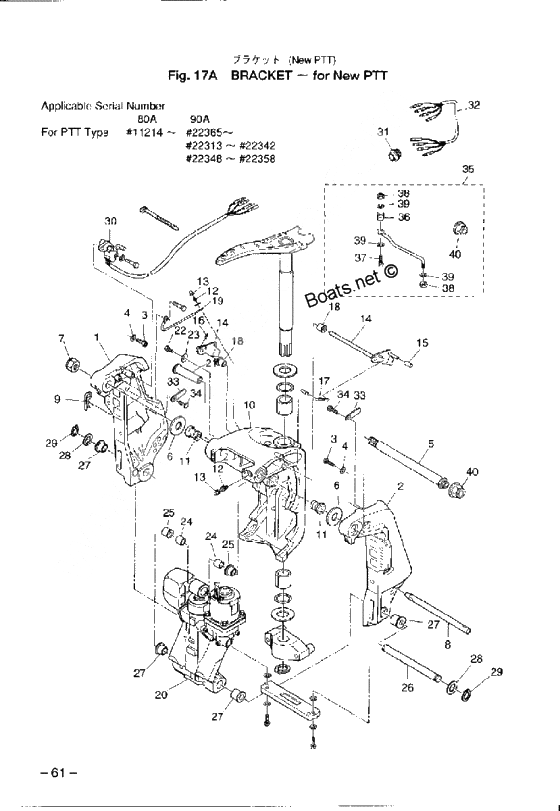

Bracket (for new ptt) для Tohatsu M90A - 2002 года выпуска`
-
№АртикулНазвание
-
13E0S62112-0 Stern bracket rStern bracket r
-
23E0S62113-0 Stern bracket lStern bracket l
-
53E0-77192-0 Bracket Ass'yBracket Ass'y
-
63E0-62116-0 WasherWasher
-
83E0-62121-0 Thrust RodThrust Rod
-
3E0-62121-1 Thrust RodThrust Rod
-
103E0S62313-0 Swivel bracket ass'y
W/Tilt Stopper Spring PinSwivel bracket ass'y
W/Tilt Stopper Spring Pin -
113E0-77183-0 Brush - not for saleBrush - not for sale
-
143E0S62431-0 Tilt stopper assyTilt stopper assy
-
3Y9-62431-1 Tilt stopper assyTilt stopper assy
-
173E0-62473-0 Spring Tilt StopperSpring Tilt Stopper
-
203E0S77150-0 Power trim & tilt ass'yPower trim & tilt ass'y
-
253E0-77076-0 BushingBushing
-
263E0-77101-0 Cylinder pin lowerCylinder pin lower
-
273E0-77103-0 BushingBushing
-
353E0-84905-0 Drag link assyDrag link assy
-
363E0-84914-0 Spacer Drag Link HSpacer Drag Link H
