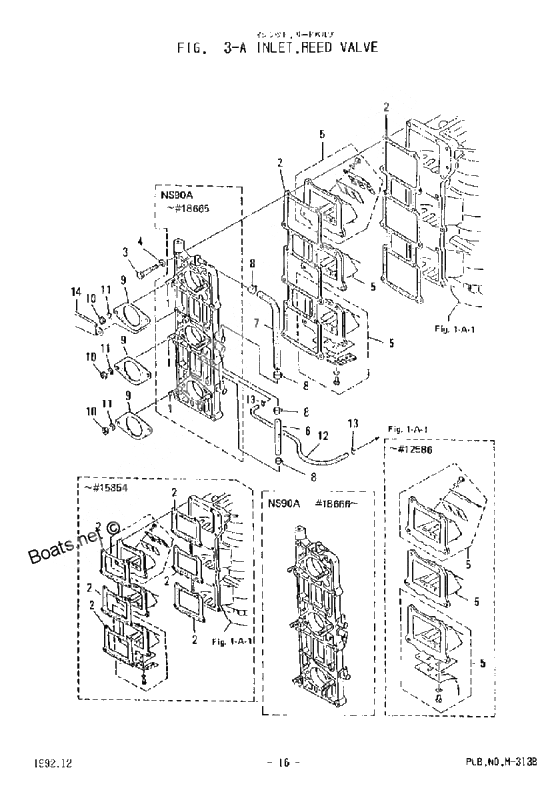

Inlet, reed valve для Tohatsu M90A - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    346-02011-0 Gasket, carburettor
    Gasket, carburettor
  • 00
    353-02100-0 Reed valve assembly
    Reed valve assembly
  • 00
    3B7-02010-0 Inlet manifold ass'y
    F/EPTO TYPE-BLUE
    Inlet manifold ass'y
    F/EPTO TYPE-BLUE
  • 00
    930103-0600 Nut
    Nut
  • 00
    3A3-02100-0 Reed Valve Ass'y
    Reed Valve Ass'y
  • 00
    3B7-02010-1 Inlet manifold assembly
    F/EPTO TYPE-GRAY
    Inlet manifold assembly
    F/EPTO TYPE-GRAY
  • 00
    941303-0600 New part
    New part
  • 00
    3B7-02020-0 Inlet manifold ass'y
    F/EPT/EFT/EF TYPE-BLUE
    Inlet manifold ass'y
    F/EPT/EFT/EF TYPE-BLUE
  • 00
    9807-3-0325 Fuel pipe 3mm (1 ea.=1 meter)
    Fuel pipe 3mm (1 ea.=1 meter)
  • 98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)
    Fuel pipe 3mm (1 ea.=1 meter)
  • 00
    9812-7-0080 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 00
    338-01133-0 Clip
    Clip
  • 00
    9812-7-0180 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 00
    309-06972-0 Clamp,6.5-47.5P
    FOR EPTO TYPE
    Clamp,6.5-47.5P
    FOR EPTO TYPE
  • 00
    345-70114-0 Clip
    Clip
  • 00
    941-3U060-0 Spring Washer
    Spring Washer
  • 01
    353-02111-0 Reed valve
    Reed valve
  • 01
    915-3D061-8 Stud Bolt
    Stud Bolt
  • 01
    3B7-02104-0 Gasket, inlet manifold
    Gasket, inlet manifold
